VGA Video Splitter Digitus DC-59100 1280x1024 150m Black

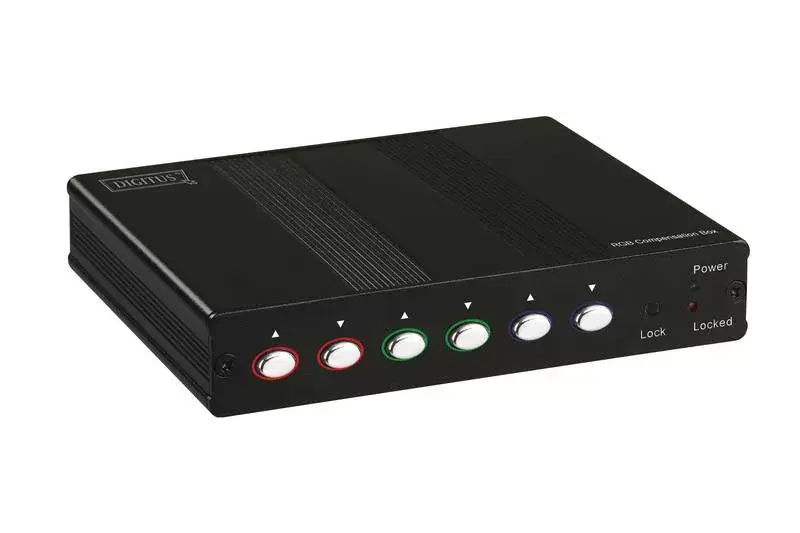

The Digitus DC-59100 is a compact VGA calibrating unit designed to correct RGB skew delay when transmitting video signals over long CAT5 cable runs. For cable lengths beyond 150 meters the skew delay becomes significant; this device compensates the timing differences to restore a sharp, properly aligned picture. It supports a maximum resolution of 1280x1024 at 60 Hz and is housed in an aluminium enclosure with a 12 V power supply included.

Advantages

The unit provides precise RGB video skew delay correction with 2 ns adjustment steps and a total correction range culminating in a 62 ns delay. It features a memorize function to retain settings and a keylock function to prevent accidental changes. The compact aluminium housing and lightweight design make it easy to install in various setups.

Suitable for

• VGA video signal transmission over long CAT5 cable runs (over 150 m)
• Installations requiring image alignment and timing correction
• Setups using displays up to 1280x1024@60Hz

Key specifications

• Maximum resolution: 1280x1024 at 60 Hz
• Total delay correction: 62 ns
• Delay step increments: 2 ns
• Power: DC 12 V / 600 mA (adapter included)
• Housing material: Aluminium
• Dimensions (L×W×H): 130×85×29.5 mm; Weight: 225 g
• Package contents: calibrating unit, user manual, DC 12 V/600 mA power adapter, 1.2 m VGA cable (HD DSUB 15-pin plug to plug)

How to use

Connect the VGA source to the input and the display to the output using the supplied VGA cable. Power the unit with the included 12 V/600 mA adapter. If transmitting over CAT5 cabling longer than 150 m, adjust the skew delay in 2 ns steps until the image is sharp and colours are properly aligned. Use the memorize function to store the corrected setting and enable keylock to avoid unintentional changes.

Usage recommendations

For cable runs shorter than 150 m skew delay is negligible and no correction is typically required. When calibrating, adjust in small increments and verify image quality at the target resolution of 1280x1024@60Hz.
