Full duplex:
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
-
Yes
-
Package weight:
Weight of the packaged product.
-
46 g
-
Cable length:
How long the cable is.
-
1 m
-
Cable type:
Type of cable e.g. electicity cable, optical cable.
-
I-VH
-
Data transfer rate:
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
-
10 Gbit/s
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
Aqua colour
-
Country of origin:
Country where the device is made. Aka Country of manufacture (COM).
-
China
-
Package depth:
The distance from the front to the back of the packaging.
-
170 mm
-
Package height:
The distance from the top to the bottom of the packaging.
-
10 mm
-
Package width:
The distance from one side of the packaging to the other.
-
170 mm
-
Package type:
The type of product package e.g. box.
-
Polybag
-

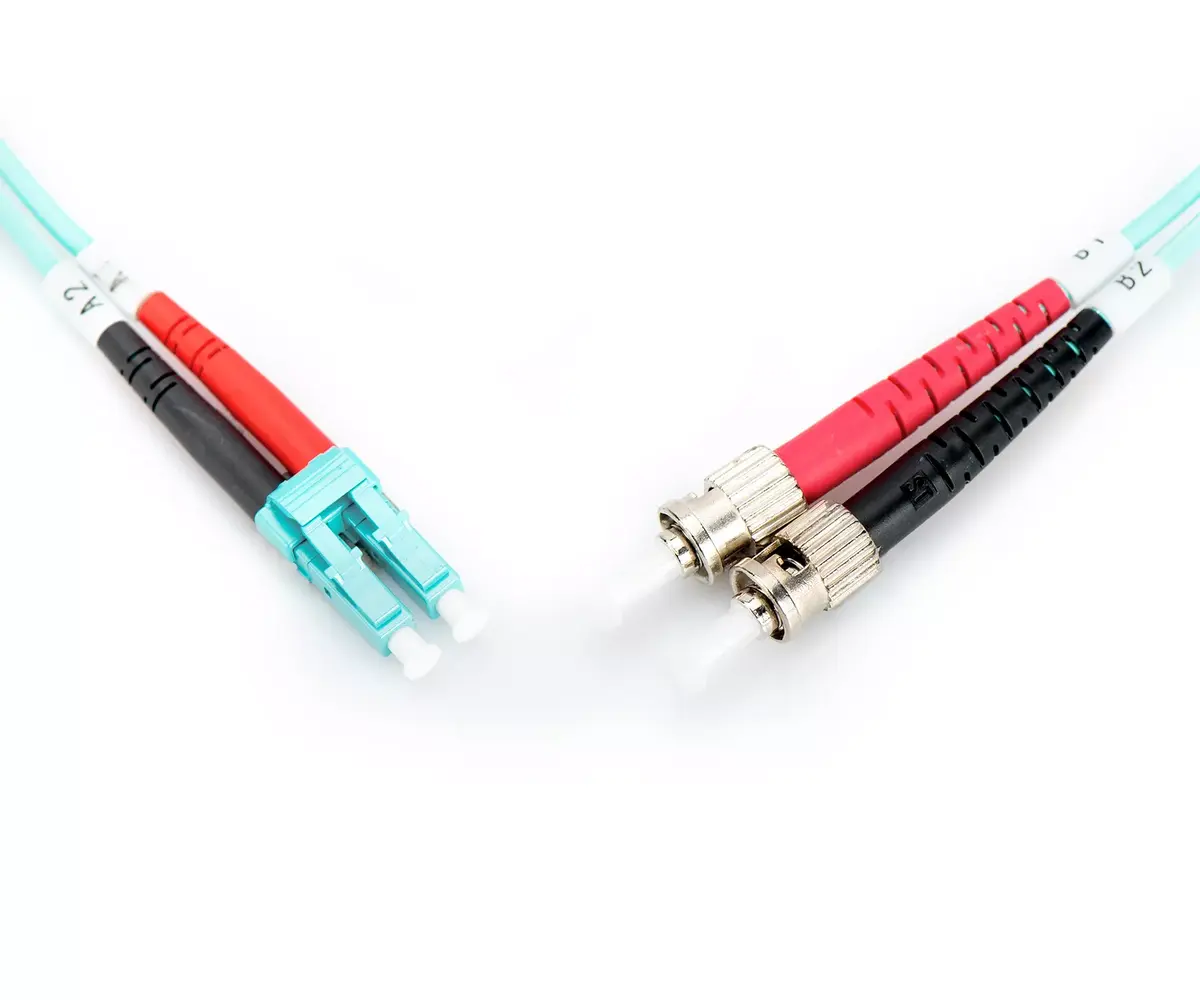

Connector 1:
This is the first connector in the device.
-
LC
-
Connector 2:
This is the second connector in the device.
-
ST
-
Cable diameter:
The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
-
2 mm
-
Fiber mode structure:
-
Multi-mode
-
Core diameter:
The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.
-
50 µm
-
Cladding diameter:
The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.
-
125 µm
-
Jacket material:
-
Low smoke zero halogen (LSZH)
-
Connector 1 gender:
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
-
Male
-
Connector 2 gender:
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
-
Male
-
Package volume:
-
289 cm³
-
Harmonized System (HS) code:
-
85447000
-
Fibre optic type:
The standardised properties of the fiber optic cable.
-
OM3
-
UK Trade Tariff code:
-
85447000
-
Compliance certificates:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
-
RoHS
