Short description

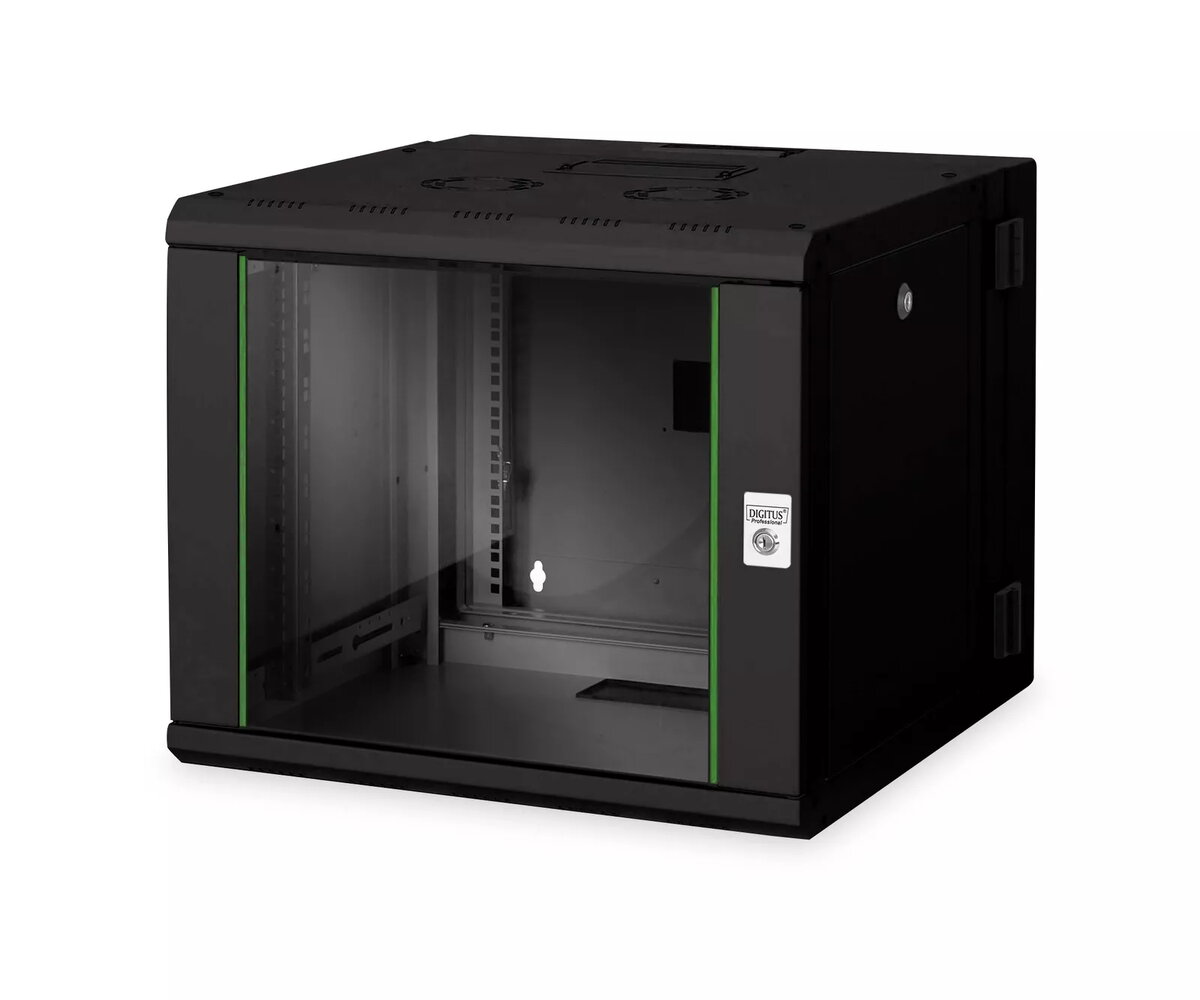

The Digitus Wall Mounting Cabinet Unique Series features a double sectioned, pivoted design with a 9U rack capacity and a maximum weight capacity of 80 kg. It includes a key lock for security and is rated IP20 for protection against solid objects. The sleek black finish makes it a stylish addition to any environment.

Available at price 519.49 €: 10 pcs.

Total available for order: 20 pcs.

Warranty: 2 Years

SKU: 3951298

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

24.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

24.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

29.07.2026 {{selectedOffer.courierDeliveryString}}

From 53.99 € (Weight: 50.00 kg)

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 668.99 €: 10 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The DIGITUS Unique Series wall-mounted rack DN-19 09-U-3-SW is a 9U network cabinet designed and developed in Germany for demanding IT infrastructure applications. Constructed from up to 1.5 mm sheet steel and finished in jet black (RAL 9005), the cabinet is suitable for wall installation and can also be used free-standing with optional leveling feet or casters. It provides a lockable safety-glass front door, removable and lockable side panels, and adjustable 483 mm (19") profile rails with U markings readable in both directions. The cabinet meets IP20 protection class and supports a maximum load of 80 kg.

Advantages

The cabinet offers a robust steel construction for secure wall mounting and flexible access thanks to a hinged back frame that folds to the side for easy rear-side assembly. Cable management features include a sliding cable inlet with foam seal in the roof, pre-cut cable inlets in the rear and floor with plastic covers, and brush management panels on the back frame. The front door hinges are reversible and the internal 19" rails are depth-adjustable to fit various equipment depths.

Suitable for

Small server rooms and network closets with limited floor space
Wall-mounted network equipment such as switches, patch panels and routers
IT installations requiring lockable access and moderate security (key lock)

Key specifications

Brand: DIGITUS
Model: DN-19 09-U-3-SW
Rack capacity: 9U
Protection class: IP20
Material: Sheet steel (up to 1.5 mm)
Finish: Jet black (RAL 9005)
Dimensions (H x W x D): 509 mm x 600 mm x 600 mm
19" profile rails: galvanized, depth-adjustable, U markings readable both directions
Max load capacity: 80 kg
Front door: lockable safety-glass with steel frame; side panels: removable and lockable

How to use

Mount the cabinet frame plate to the wall using appropriate anchors and fasteners for the wall material, then attach the housing to the frame so the cabinet can open in either direction. Install equipment on the adjustable 19" rails and route cables through the roof sliding inlet, rear and floor pre-cut openings or brush panels. The back frame can be folded sideways to provide easier access during installation or maintenance. If the cabinet should be free-standing, fit optional leveling feet or castors before loading equipment.

Usage recommendations

For safe operation, ensure the wall anchors and fixings are rated for the cabinet weight plus installed equipment (up to 80 kg). Maintain clearance for ventilation and avoid placing heat-generating devices in enclosed, unventilated spaces. Use appropriate earthing and follow local installation regulations.

Specifications

International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP20
Rack capacity:: 9U
Height:: 509 mm
Depth:: 600 mm
Width:: 600 mm
Size (imperial):: 19 "
Product colour:: Black

All features

Features

Type:: Wall mounted rack
Material:: Steel
Product colour:: Black
Maximum weight capacity:: 80 kg
Rack capacity:: 9U
Side panels included:: Yes
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP20
Removable side panels:: Yes
Key lock:: Yes
Frame type:: Closed
Front door construction:: Glass
Side panel key lock:: Yes
Front door key lock:: Yes

Logistics data

Country of origin:: Turkey
Harmonized System (HS) code:: 85381000
UK Trade Tariff code:: 94032080

Packaging data

Package weight:: 37000 g
Package depth:: 650 mm
Package width:: 650 mm
Screws included:: Yes
Package volume:: 236178 cm³
Nuts included:: Yes

Weight & dimensions

Size (imperial):: 19 "
Height:: 509 mm
Width:: 600 mm
Depth:: 600 mm
