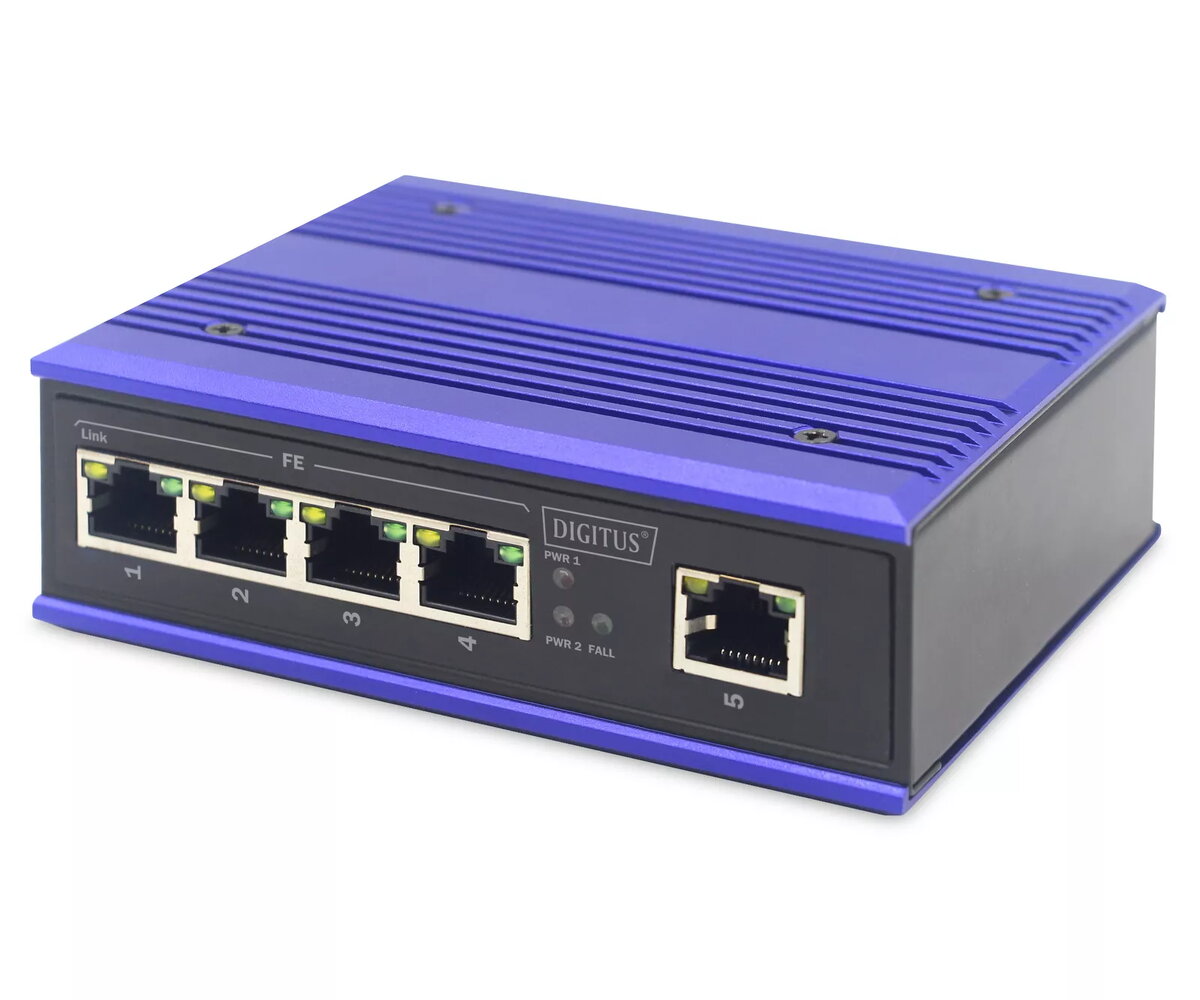

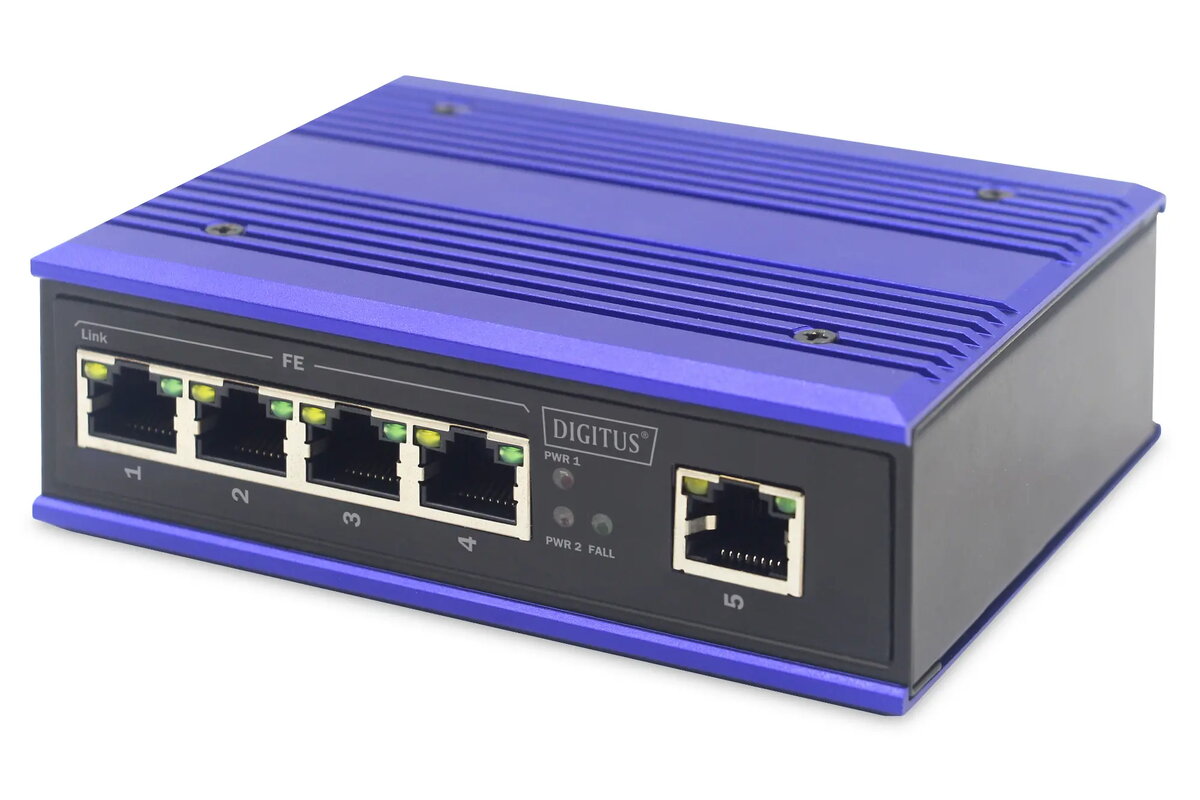

Network Switch Digitus 4 Port Fast Ethernet

Name: Network Switch Digitus 4 Port DN-650105
Brand: DIGITUS
SKU: 2114024
Price: 43.49 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Network Switch Digitus 4 Port Fast Ethernet Industrial Unmanaged

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Digitus 4 Port Fast Ethernet Network Switch is an unmanaged L2 switch with 4 Fast Ethernet ports (10/100) and 1 RJ45 uplink. It features a full duplex mode, a MAC address table with 2048 entries, and a switching capacity of 1 Gbit/s. Compliant with IEEE networking standards, it operates on a DC input voltage of 12 - 48 V and is wall mountable, making it ideal for industrial applications.

Available at price 43.49 €: 19 pcs.

Total available for order: 391 pcs.

Warranty: 2 Years

SKU: 2114024

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

02.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.55 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

02.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The DIGITUS Network Switch 4 Port Fast Ethernet Industrial Unmanaged (DN-650105) is an unmanaged L2 switch designed for industrial environments. It provides four 10/100Base-TX Fast Ethernet ports plus one RJ45 uplink, supports full-duplex operation and a MAC address table with 2048 entries. The switch meets IEEE 802.3/802.3u/802.3x standards, offers a switching capacity of 1 Gbit/s and operates from a DC input of 12–48 V. Built for harsh conditions, it can be mounted on DIN rail or wall and withstands challenging temperature ranges and vibrations common in transport, production and monitoring applications.

Advantages

The unmanaged DIGITUS industrial switch delivers reliable wired connectivity with a compact, robust design suitable for demanding environments. Its Fast Ethernet ports and RJ45 uplink provide straightforward network expansion without configuration. The device supports full-duplex switching and a 2048-entry MAC table to ensure efficient frame forwarding. DIN rail and wall-mount options simplify installation in control cabinets and industrial sites.

Suitable for

Factory floor and production line networking
Transport systems and vehicle-mounted equipment
Traffic and safety surveillance networks
Industrial control cabinets and automation systems

Key specifications

Model: DIGITUS DN-650105
Switch type: Unmanaged L2
Ports: 4 × 10/100Base-TX + 1 × RJ45 uplink
Switching capacity: 1 Gbit/s
MAC address table: 2048 entries
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Power input: DC 12–48 V
Mounting: DIN rail and wall-mountable
Colour: Black, Blue
Weight: 0.36 kg

How to use

Install the switch on a DIN rail or secure it to a wall surface in a dry, ventilated location within the permitted temperature range. Connect the DC power source (12–48 V) to the appropriate terminals following the manufacturer wiring instructions. Use standard Cat5e/Cat6 cables to connect devices to the four Fast Ethernet ports and the RJ45 uplink for upstream connection. The unmanaged device requires no configuration; devices will negotiate link speed and duplex automatically.

Usage recommendations

Place the switch in an environment protected from direct water ingress and excessive mechanical shock. Use shielded cables and proper grounding in electrically noisy industrial installations. Verify power supply polarity and voltage range before connecting; ensure adequate ventilation around the unit to avoid overheating.

Specifications

Switch type:: Unmanaged
Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Weight:: 0.36 kg
Basic switching RJ-45 Ethernet ports quantity:: 4
10G support:: No
Networking standards:: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Product colour:: Black, Blue

All features

Power over Ethernet (PoE)

Power over Ethernet (PoE):: No

Packaging content

Quick start guide:: Yes

Management features

Switch layer:: L2
Switch type:: Unmanaged

Ports & interfaces

Fast Ethernet (copper) ports quantity:: 5
Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:: 4

Power

Redundant power supply (RPS) support:: Yes
Power protection features:: Overload, Short circuit
DC input voltage:: 12 - 48

Operational conditions

Operating temperature (T-T):: -40 - 85

Logistics data

Country of origin:: China
UK Trade Tariff code:: 85176200

Packaging data

Package weight:: 483.333 g
Package depth:: 135 mm
Package height:: 53 mm
Package width:: 162 mm
Package volume:: 1159.11 cm³

Data transmission

MAC address table:: 2048 entries
Switching capacity:: 1 Gbit/s
Store-and-forward:: Yes

Weight & dimensions

Weight:: 0.36 kg
Height:: 39 mm
Width:: 118 mm
Depth:: 86 mm

Network

Full duplex:: Yes
Networking standards:: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Flow control support:: Yes
Ethernet LAN data rates:: 100, 10
Auto MDI/MDI-X:: Yes
VLAN support:: No
10G support:: No
Copper ethernet cabling technology:: 10BASE-T, 100BASE-TX

Design

Rack mounting:: No
LED indicators:: Y
Wall mountable:: Yes
Product colour:: Black, Blue
Housing material:: Metal
Vandal-proof:: No
DIN rail mounting:: Yes
Suitable for outdoor use:: No

Other features

Ethernet interface type:: Fast Ethernet

Hide Show all
