Unmanaged Switch Digitus DN-651132 8 Port Fast Ethernet 1 SFP Uplink

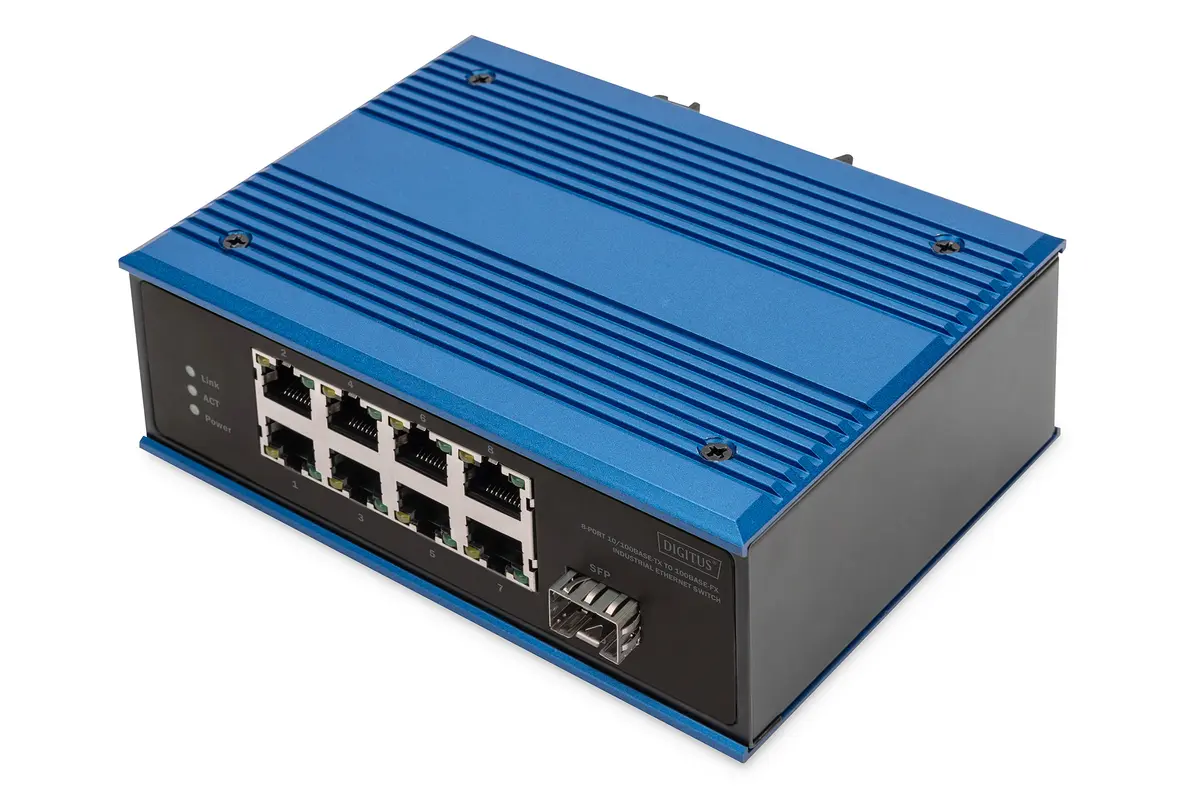

Unmanaged Switch Digitus DN-651132 Photo 1

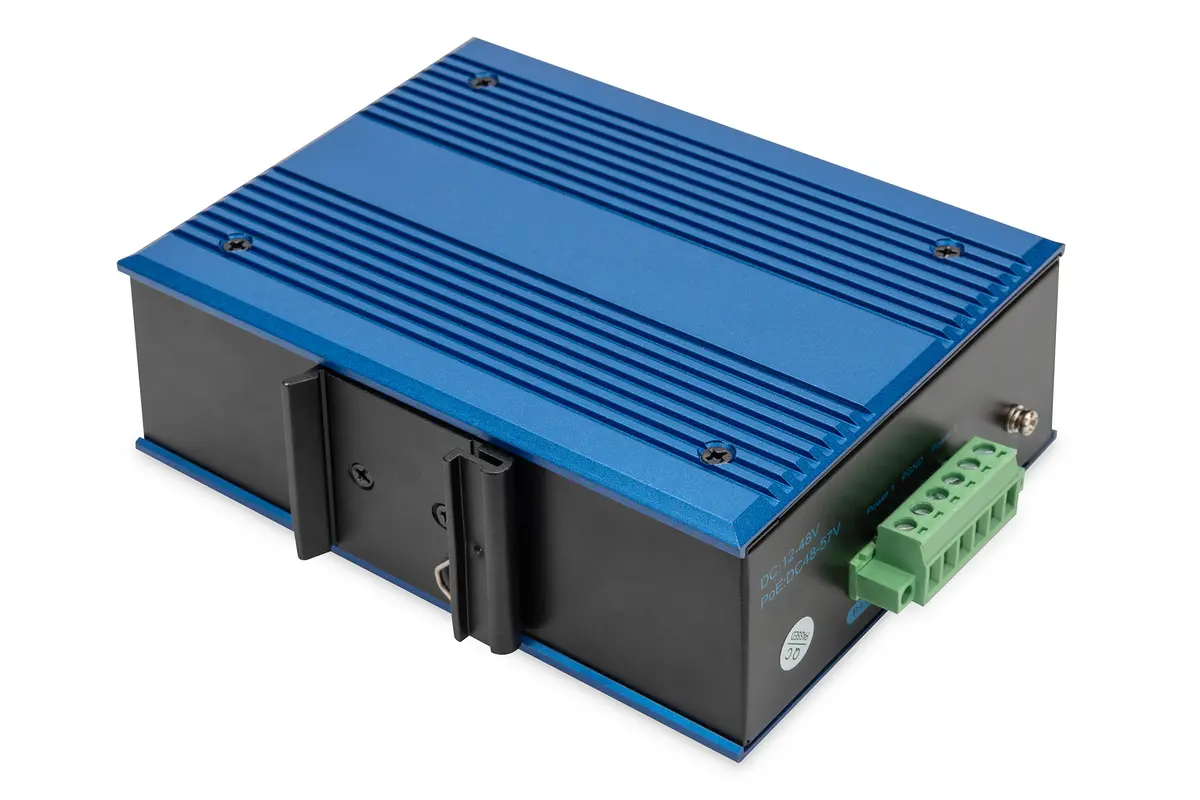

Unmanaged Switch Digitus DN-651132 Photo 2

Unmanaged Switch Digitus DN-651132 Photo 3

Unmanaged Switch Digitus DN-651132 Photo 4

Unmanaged Switch Digitus DN-651132 Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Digitus DN-651132 is an unmanaged switch featuring 8 Fast Ethernet ports and 1 SFP uplink. It supports full duplex and has a MAC address table of 4000 entries with a switching capacity of 0.1 Gbit/s. Designed for industrial use, it operates on a DC input voltage of 12 - 52 V and connects via a 6-pin terminal block.

Available for order: 1 pcs.

Warranty: 2 Years

SKU: 8534552

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

13.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

13.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

16.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.81 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

16.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Digitus DN-651132 is an industrial-grade unmanaged Ethernet switch with 8 Fast Ethernet (10/100 Mbps) RJ45 ports and 1 100 Mbps fiber uplink (SFP). Designed for harsh environments, it supports non-blocking wire-speed performance, DC 12–48V power input with reverse-polarity protection, and offers durable operation with an average MTBF above 300,000 hours. The compact, rail-mountable metal housing with IP40 protection and LED indicators allows installation in control cabinets and other confined spaces.

Advantages

The switch uses high-quality photoelectric integration modules to ensure stable optical and electrical characteristics and reliable data transmission. It supports full duplex and half duplex modes with auto-negotiation, automatic MDI/MDIX detection on network ports, and an internal store-and-forward mechanism. Surge protection on the power input (5000 A, 8/20 µs) and a wide operating temperature range (−40 °C to 80 °C) increase resilience in industrial installations.

Suitable for

Industrial Ethernet networks in factories and plants
Connecting IP cameras and other PoE-capable devices in surveillance systems (when PoE is provided elsewhere)
Network extension where a compact, rail-mountable unmanaged switch is required
Rugged environments with wide temperature requirements

Key specifications

Ports: 8 × 10/100 Mbps RJ45, 1 × 100 Mbps SFP uplink
Switch type: Unmanaged
MAC address table: 4000 entries
Switching capacity: 0.1 Gbit/s
Power input: DC 12–48 V (6-pin terminal block), reverse protection
Surge protection (power): 5000 A (8/20 µs)
Operating temperature: −40 °C to 80 °C
Installation: DIN-rail mountable, metal housing, IP40
Standards: IEEE 802.3, IEEE 802.3u
Weight: 0.56 kg
Color: Black, Blue

How to use

Mount the switch on a standard DIN rail inside a suitably ventilated enclosure or cabinet. Connect the DC power to the 6‑pin terminal block, observing polarity; the device includes reverse-polarity protection. Use standard Ethernet cables to attach devices to the 8 RJ45 ports and install an SFP module in the fiber slot for uplink. The switch is unmanaged and operates plug-and-play with auto-negotiation and automatic MDI/MDIX, so no configuration is required.

Usage recommendations

Install the switch in locations that meet the specified temperature range and protect it from direct water exposure. Ensure proper grounding and use surge protection on external cables where needed. Verify power supply voltage is within 12–48 V DC to avoid damage.

Specifications

Switch type:: Unmanaged
Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Weight:: 0.56 kg
Basic switching RJ-45 Ethernet ports quantity:: 8
10G support:: No
Product colour:: Black, Blue
Networking standards:: IEEE 802.3, IEEE 802.3u

All features

Design

Rack mounting:: No
LED indicators:: Y
Product colour:: Black, Blue
Stackable:: No
Housing material:: Aluminium
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP40
Vandal-proof:: No
DIN rail mounting:: Yes
Suitable for outdoor use:: No

Power over Ethernet (PoE)

Power over Ethernet (PoE):: No

Packaging content

Manual:: Yes

Management features

Switch type:: Unmanaged

Ports & interfaces

Fast Ethernet (copper) ports quantity:: 8
Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:: 8
SFP module slots quantity:: 1
Power connector:: Terminal block (6-pin)
Uplink ports quantity:: 1

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 3 W
Power source:: DC
DC input voltage:: 12 - 52

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -40 - 80
Operating temperature (T-T):: -40 - 80
Storage relative humidity (H-H):: 5 - 95

Logistics data

Country of origin:: China
UK Trade Tariff code:: 85176200

Packaging data

Package weight:: 917.857 g
Package depth:: 66 mm
Package height:: 213 mm
Package width:: 158 mm
Package volume:: 2221.16 cm³

Data transmission

MAC address table:: 4000 entries
Switching capacity:: 0.1 Gbit/s
Forwarding rate:: 1.4 Mpps
Packet buffer memory:: 1.25 MB

Weight & dimensions

Weight:: 0.56 kg
Height:: 44.2 mm
Width:: 143.7 mm
Depth:: 103 mm

Other features

Bandwidth:: 1.8 Gbit/s
Ethernet interface type:: Fast Ethernet

Network

Full duplex:: Yes
Networking standards:: IEEE 802.3, IEEE 802.3u
Flow control support:: Yes
Ethernet LAN data rates:: 10, 100
Auto MDI/MDI-X:: Yes
VLAN support:: No
10G support:: No
Copper ethernet cabling technology:: 10BASE-T, 100BASE-FX, 100BASE-TX
Half duplex:: Yes
