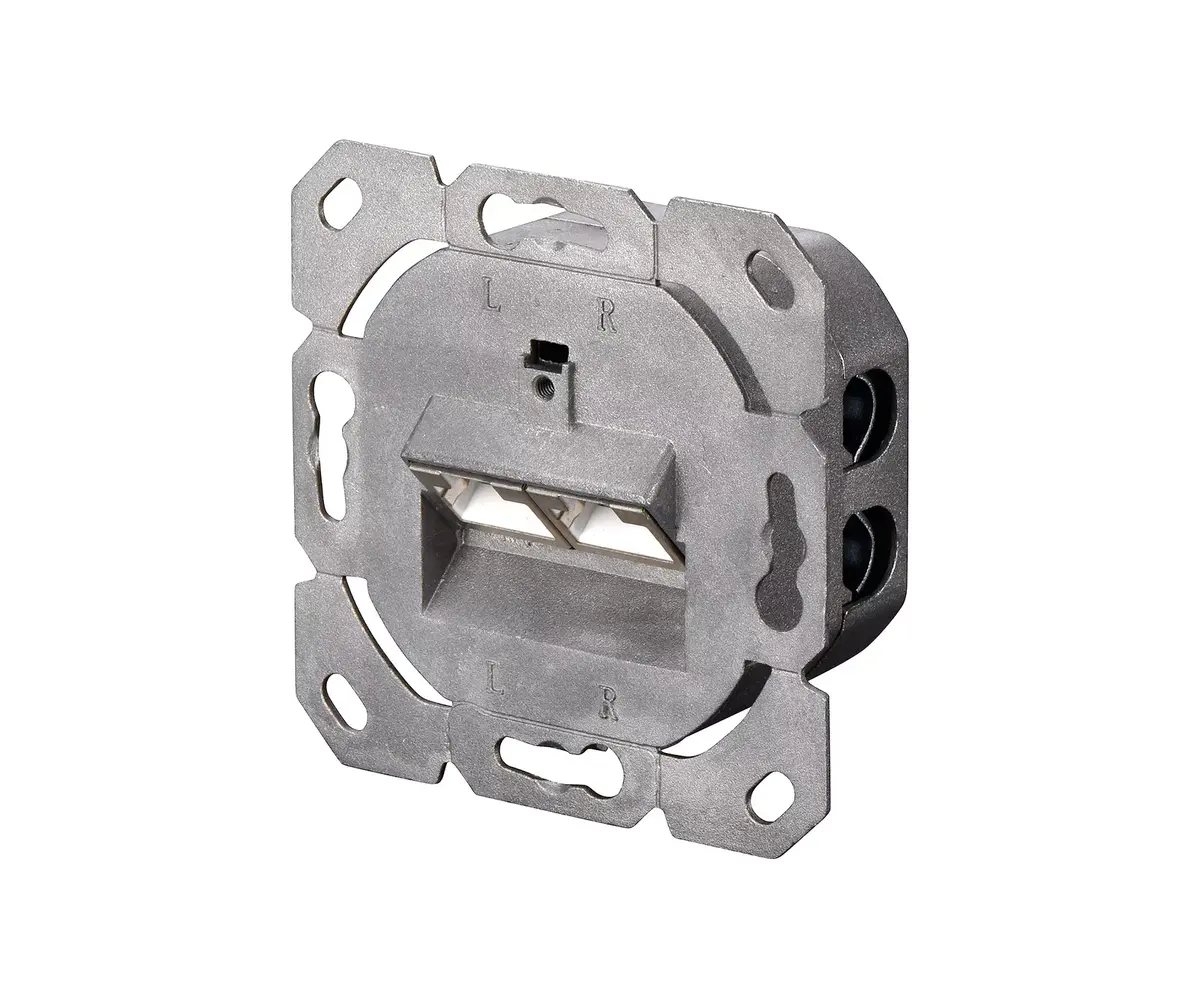

Digitus CAT 6 wall outlet, flush mount

Advantages

• - Transmission property: Category 6
• - Area of application: Up to 250 MHz, 1GBase-T
• - Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• - General properties:
• - Suitable for installation in trunking, surface and flush mount

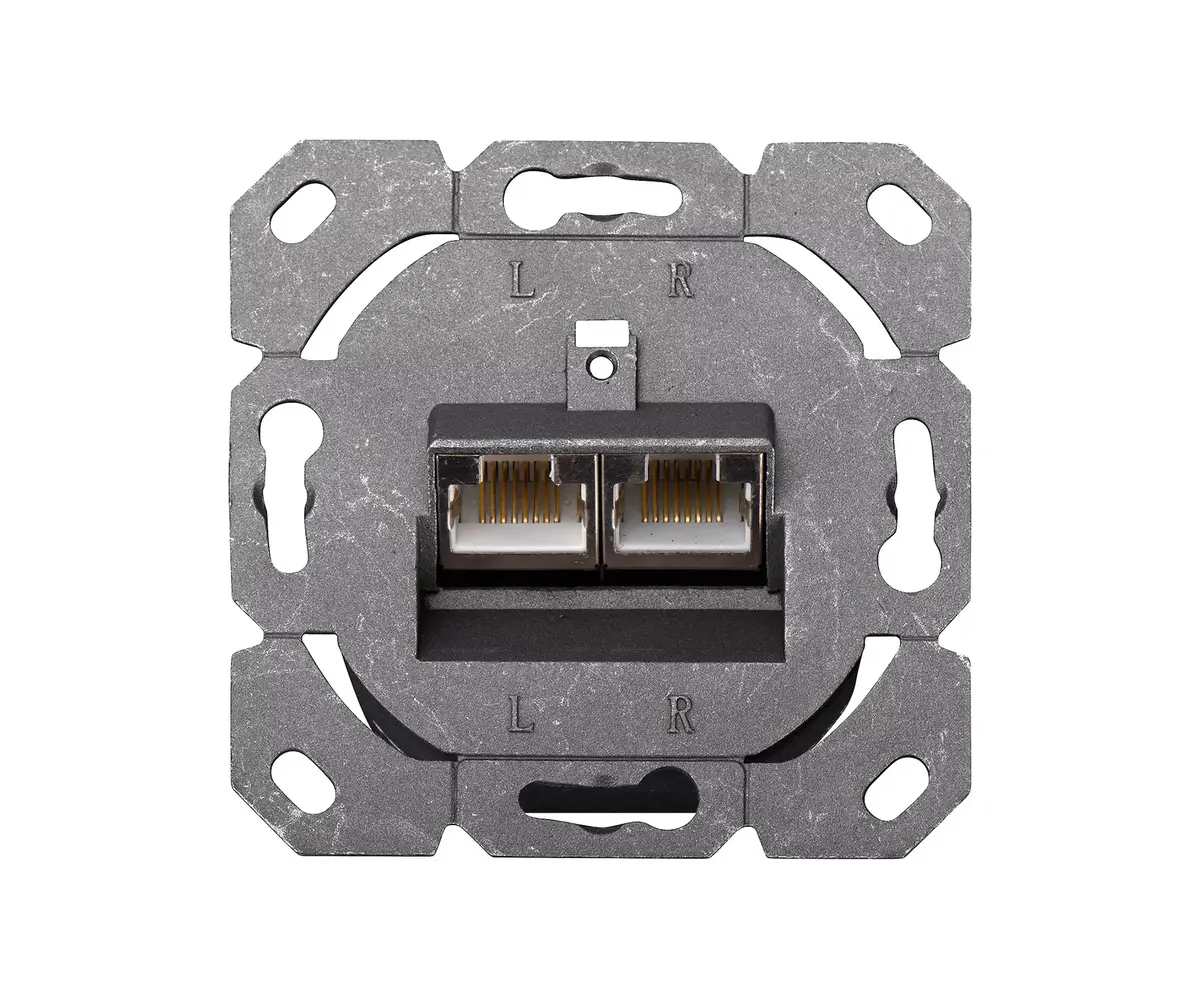

• - RJ45 female, 8P8C

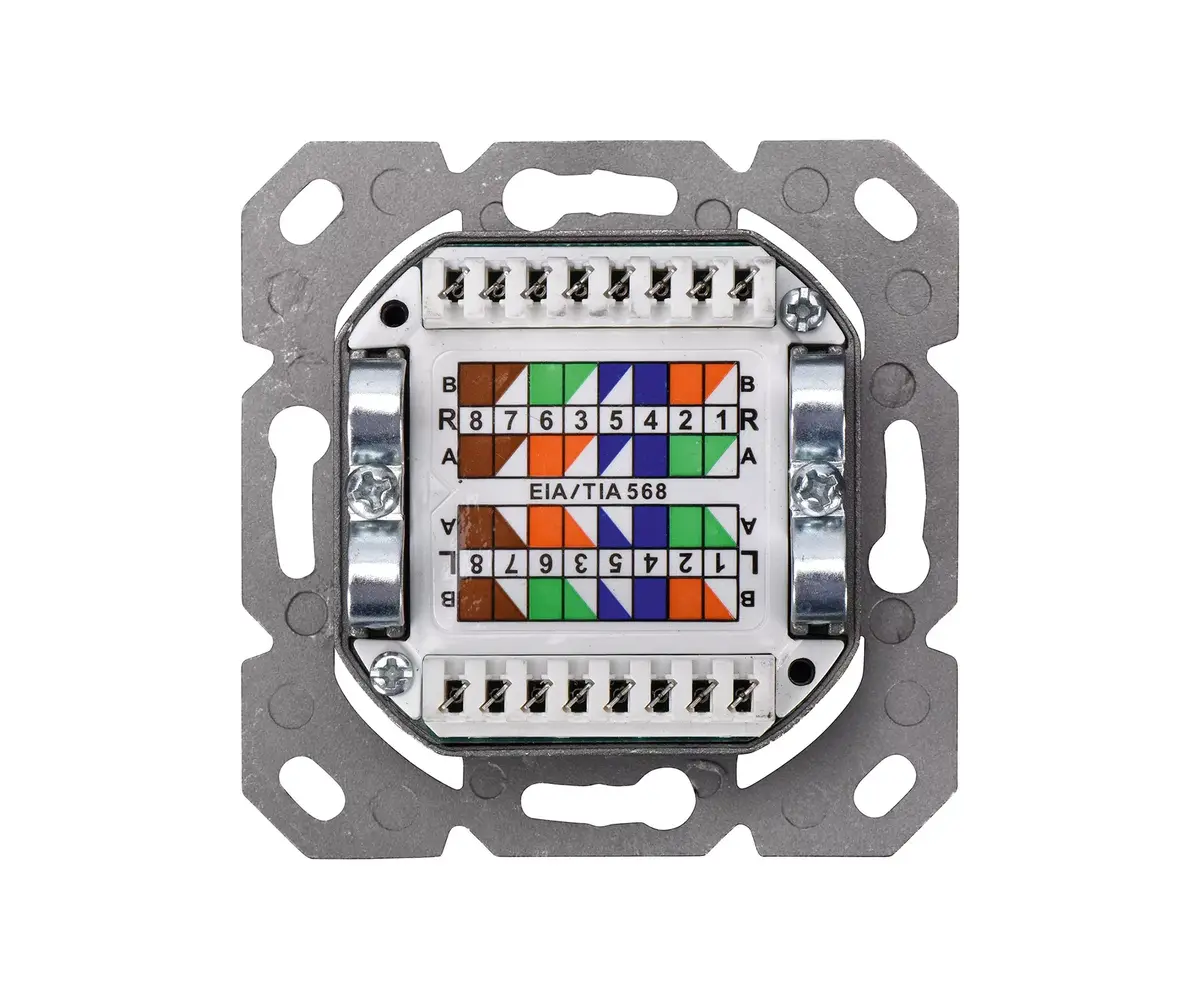

• - Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
• - Integrated strain relief for installation cables

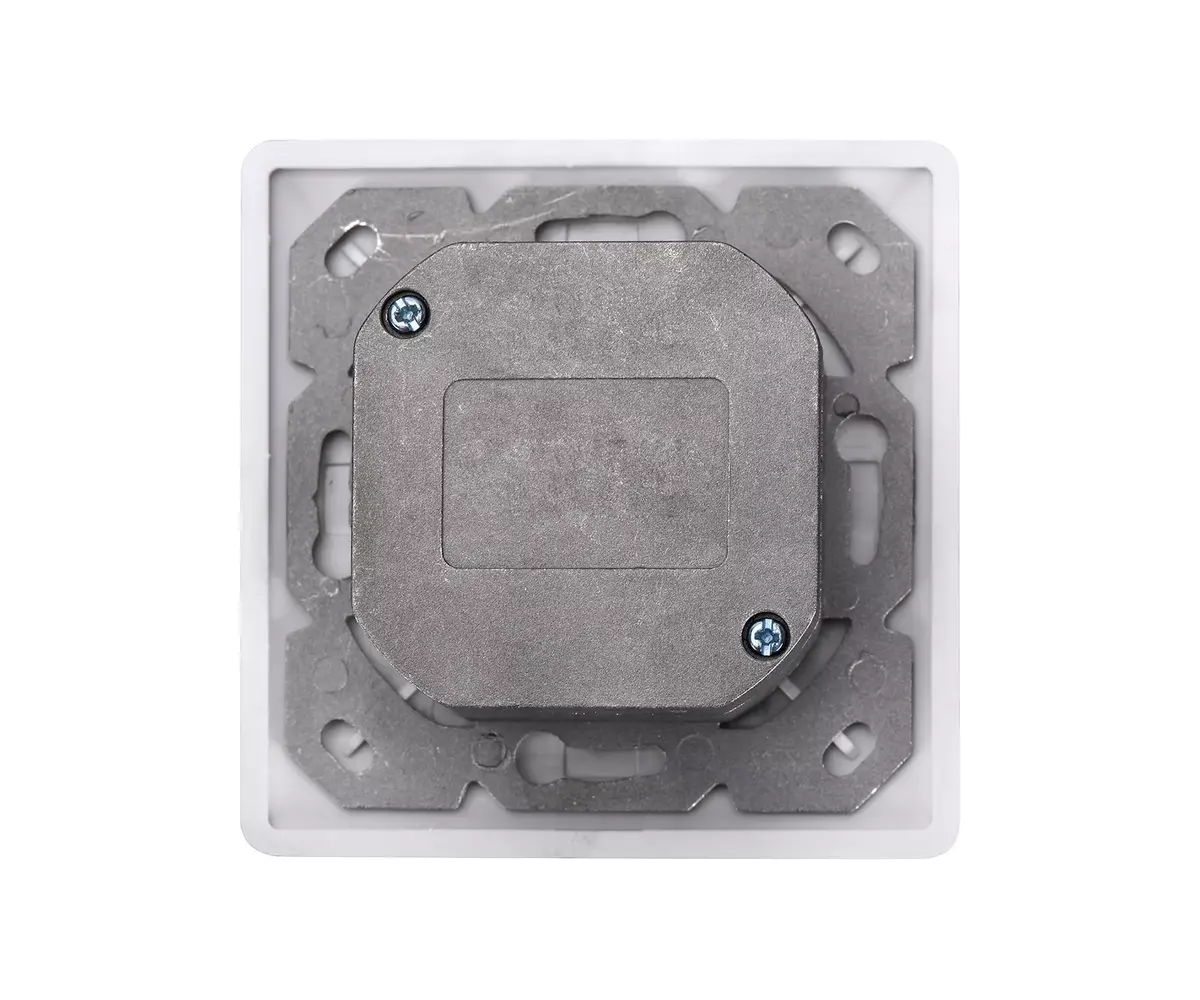

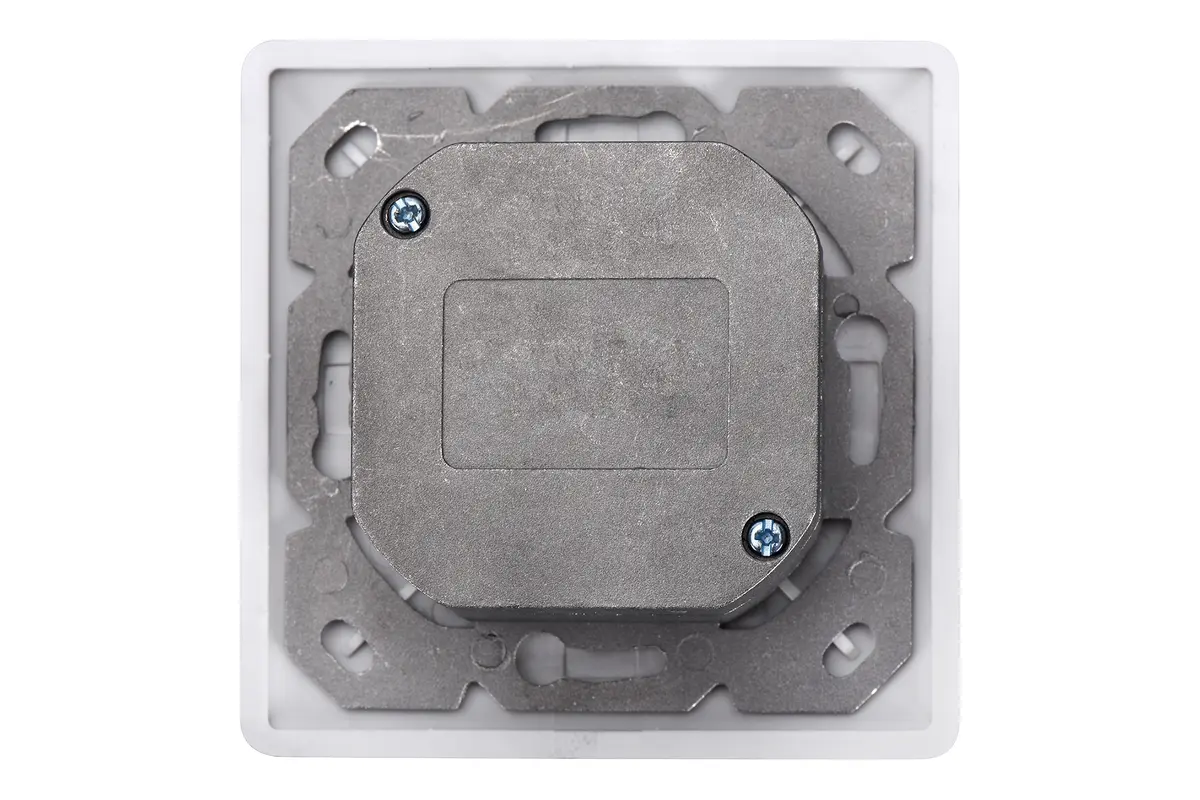

• - Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing
• - Strain relief 40°-angled female for patch cord
• - Central plate: 50 x 50 mm
• - Frame: 80 x 80 mm
• - Central plate with integrated dust covers
• - Design compatible to common switch ranges
• - Technical properties:
• - Housing material: Die-cast metal
• - RJ45 female material: ABS UL 94V-0
• - RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
• - RJ45 shielding: Tinned bronze
• - LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
• - Conductor plate: FR4, UL 94V-0
• - Physical properties:
• - Insertion force: 30N max. (IEC 60603-7-5)
• - Retention strength: 7.7 kg between jack and plug
• - Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
• - Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
• - Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
• - IDC wire size: 22 – 26 AWG solid and stranded conductor
• - Insulation resistance: > 500 MOhm
• - Contact resistance: < 20 MilliOhm
• - Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
• - Not compatible with R&M freenet patch cords
• - Colour: White RAL9003

CAT 6 wall outlet, shielded, 2x RJ45 8P8C, LSA, pure white, flush mount

Advantages

• - Transmission property: Category 6
• - Area of application: Up to 250 MHz, 1GBase-T
• - Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• - General properties:
• - Suitable for installation in trunking, surface and flush mount
• - RJ45 female, 8P8C
• - Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
• - Integrated strain relief for installation cables
• - Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing
• - Strain relief 40°-angled female for p
