Digitus DN-91411-24 patch panel DN-91411-24

Name: Digitus Modular patch panel, 24-port DN-91411-24
Brand: DIGITUS
SKU: 11565868
Price: 68.99 EUR
Availability: OutOfStock

Shop for gifts early

Save time and money with our discounts!

Digitus Modular patch panel, 24-port equipped with 24x DN-93615

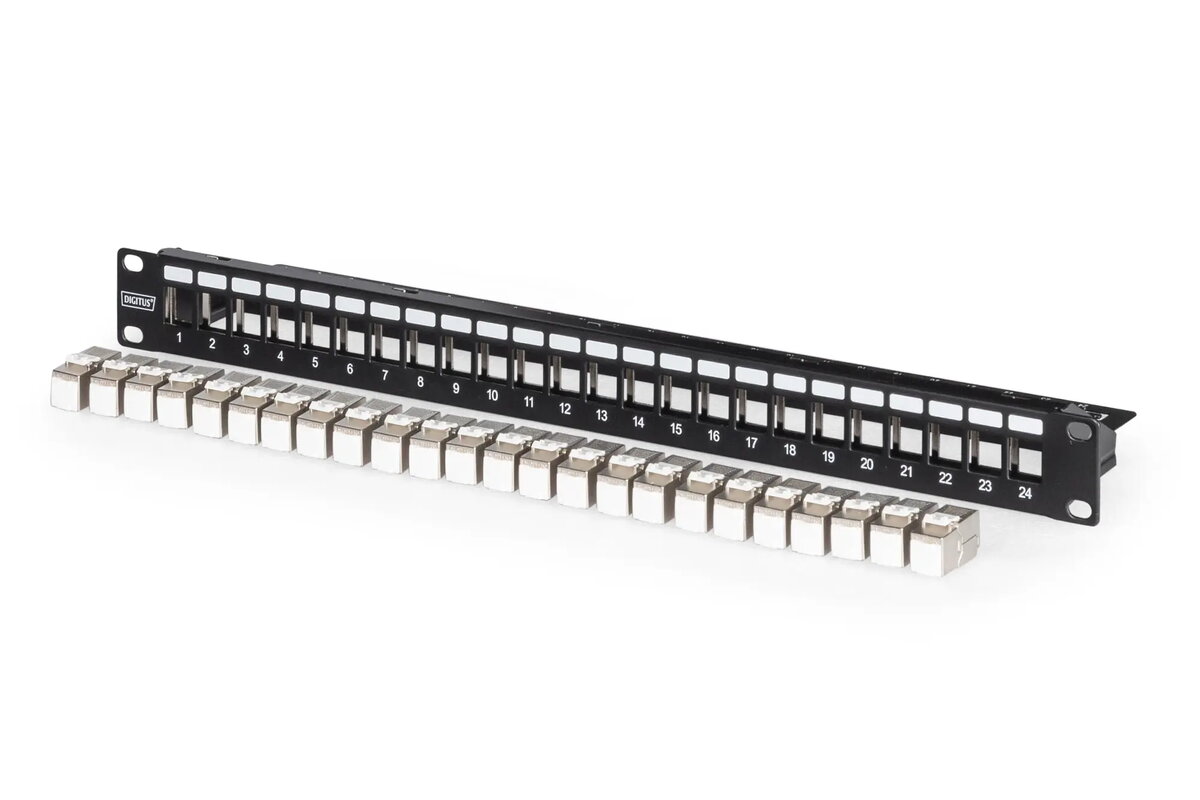

Digitus DN-91411-24 patch panel DN-91411-24 Photo 1

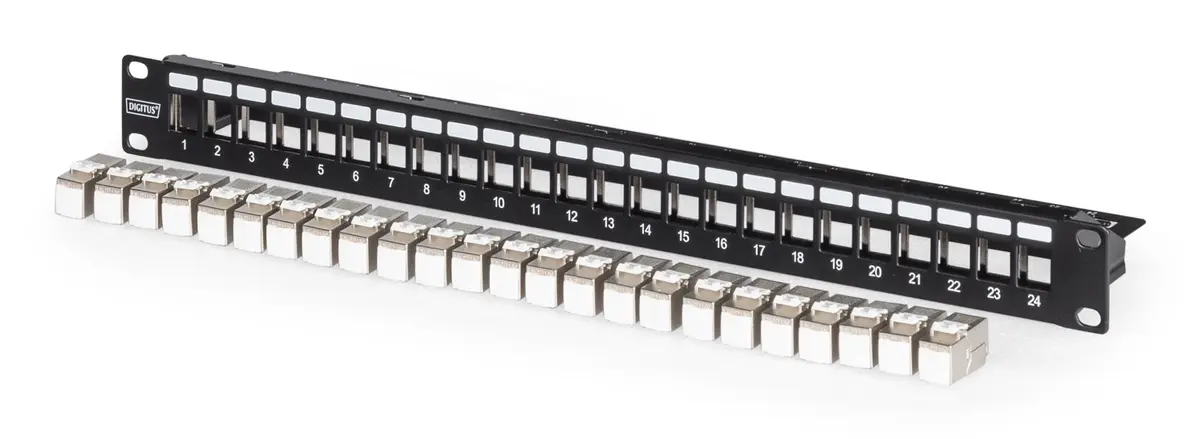

Digitus DN-91411-24 patch panel DN-91411-24 Photo 2

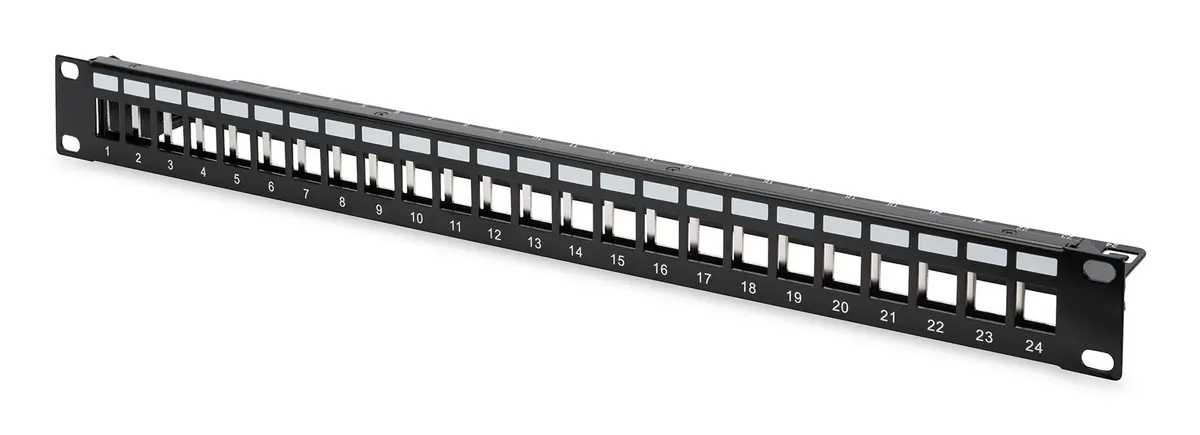

Digitus DN-91411-24 patch panel DN-91411-24 Photo 3

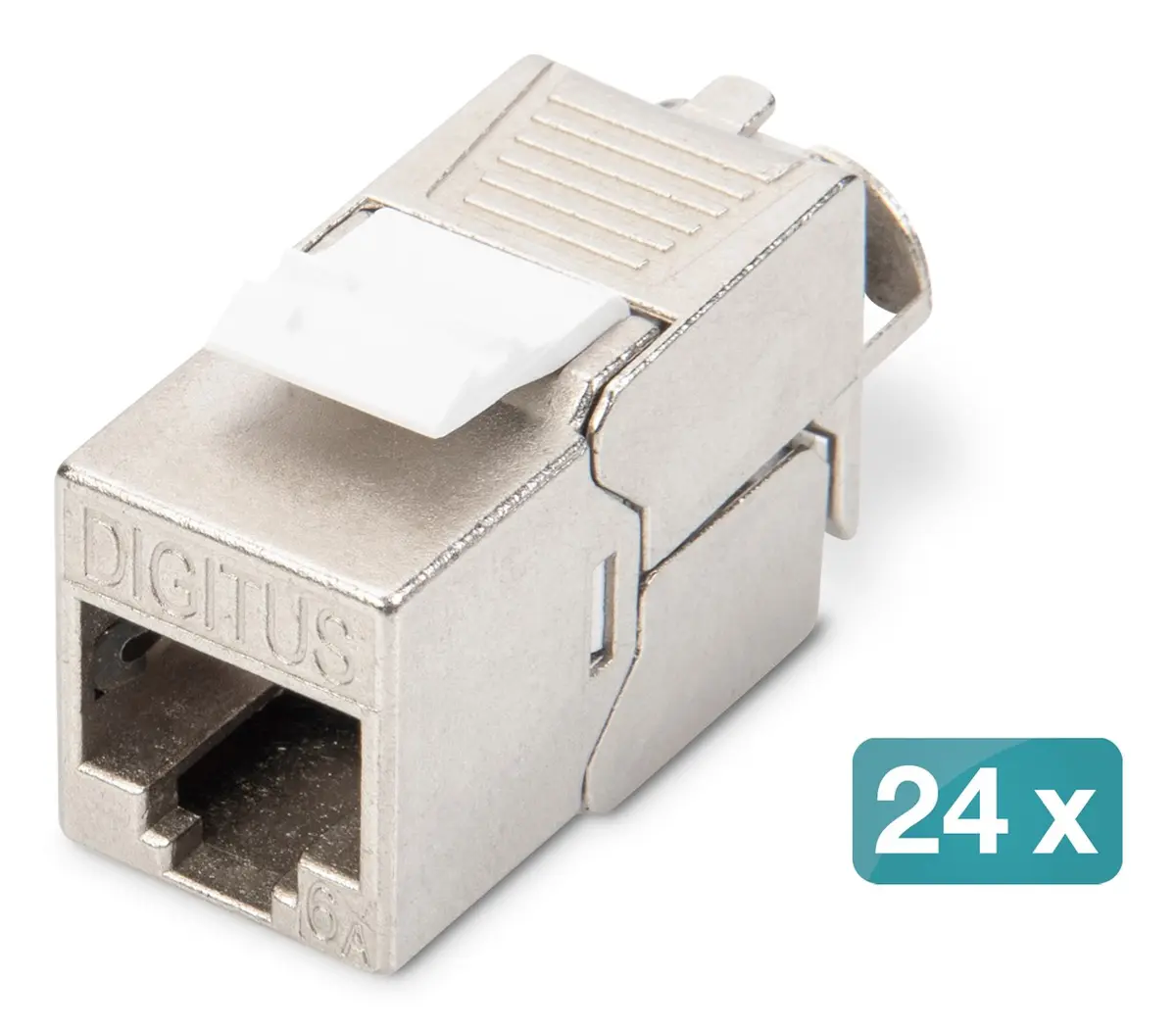

Digitus DN-91411-24 patch panel DN-91411-24 Photo 4

Short description

Digitus Modular patch panel, 24-port equipped with 24x DN-93615. Connector(s): RJ-45, Cable types supported: Cat6a. Mounting: Rack mounting, Rack capacity: 1U, Product colour: Black. Certification: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE,.... Width: 483 mm. Package width: 560 mm, Package depth: 75 mm, Package height: 100 mm

Warranty: 2 Years

SKU: 11565868

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Key Features

Keystone mount version: Straight
Application areas: 483 mm (19") distribution cabinet
Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 483 mm (19") rack mounting
Suitable for shielded Digitus® Keystone modules and connectors
Central earthing connection
Technical features:
Housing material: 1.5 mm SPCC cold-rolled sheet steel, powder-coated
Material standard: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE, NFA 36/401
Material earthing bar: galvanized steel
Physical properties:
Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Color: Black RAL9005
equipped with 24 DN-93615 Keystone modules
Ports quantity: 24
Cat6a
1U
Black

- All-in-one convenience - Simplifies purchasing and inventory by combining patch panel and keystones in a single, ready-to-install package.
- Time-saving installation - pre-matched components eliminate compatibility problems and speed up commissioning
- Professional presentation - Supplied as a neatly packaged combo pack, ideal for installers and projects that require a quick and clean implementation
- More value for less - The complete solution is cheaper than buying patch panels and keystones individually.
- Optimized project planning - One article number, one delivery and complete operational readiness reduce the logistical complexity of larger rollouts.

The DIGITUS Modular Patch Panel, 24-port, is a robust, rack-mountable 19-inch panel with 24 CAT 6A Keystone modules (DN-93615) - ready for immediate, fast and efficient installation. It offers easy management and enables flexible network configurations thanks to its modular design. With fully matched CAT 6A Keystone modules included, there is no need for separate procurement or compatibility checks. An integrated cable management strip ensures order and stability, while the earthing connection provides additional safety. This complete solution optimizes rack space, reduces installation time and simplifies project planning - ideal for professional installers and demanding IT environments.

Specifications

Rack capacity: The spase that device fill in rack.: 1U
Mounting: What size the mounting head of the product is, to couple it with a camera.: Rack mounting
Ports quantity: The number of ports or external interfaces to which other equipment can be connected.: 24

All features

Logistics data

UK Trade Tariff code:: 85177900
Country of origin: Country where the device is made. Aka Country of manufacture (COM).: China

Packaging data

Package weight: Weight of the packaged product.: 1289 g
Package height: The distance from the top to the bottom of the packaging.: 100 mm
Package depth: The distance from the front to the back of the packaging.: 75 mm
Package width: The distance from one side of the packaging to the other.: 560 mm

Weight & dimensions

Width: The measurement or extent of something from side to side.: 483 mm

Operational conditions

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -20 - 70

Certificates

Certification:: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE, NFA 36/401

Design

Material: The material from which a thing is or can be made e.g. wood, plastic.: SPCC
Product colour: The colour e.g. red, blue, green, black, white.: Black
Rack capacity: The spase that device fill in rack.: 1U
Mounting: What size the mounting head of the product is, to couple it with a camera.: Rack mounting

Network

Cable types supported:: Cat6a
Connector(s):: RJ-45
Ports quantity: The number of ports or external interfaces to which other equipment can be connected.: 24
