Modular Patch Panel V-Design Digitus DN-91414S

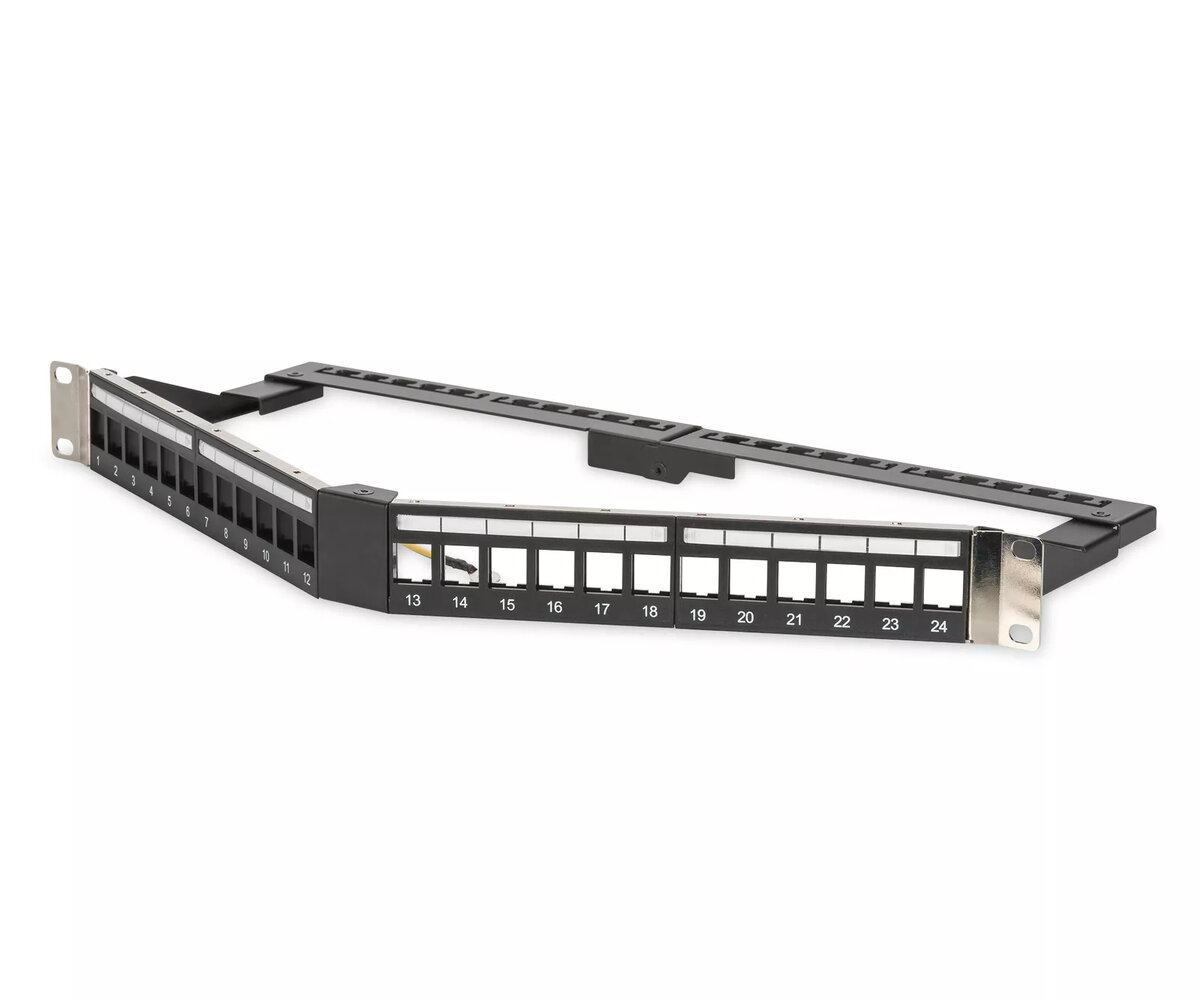

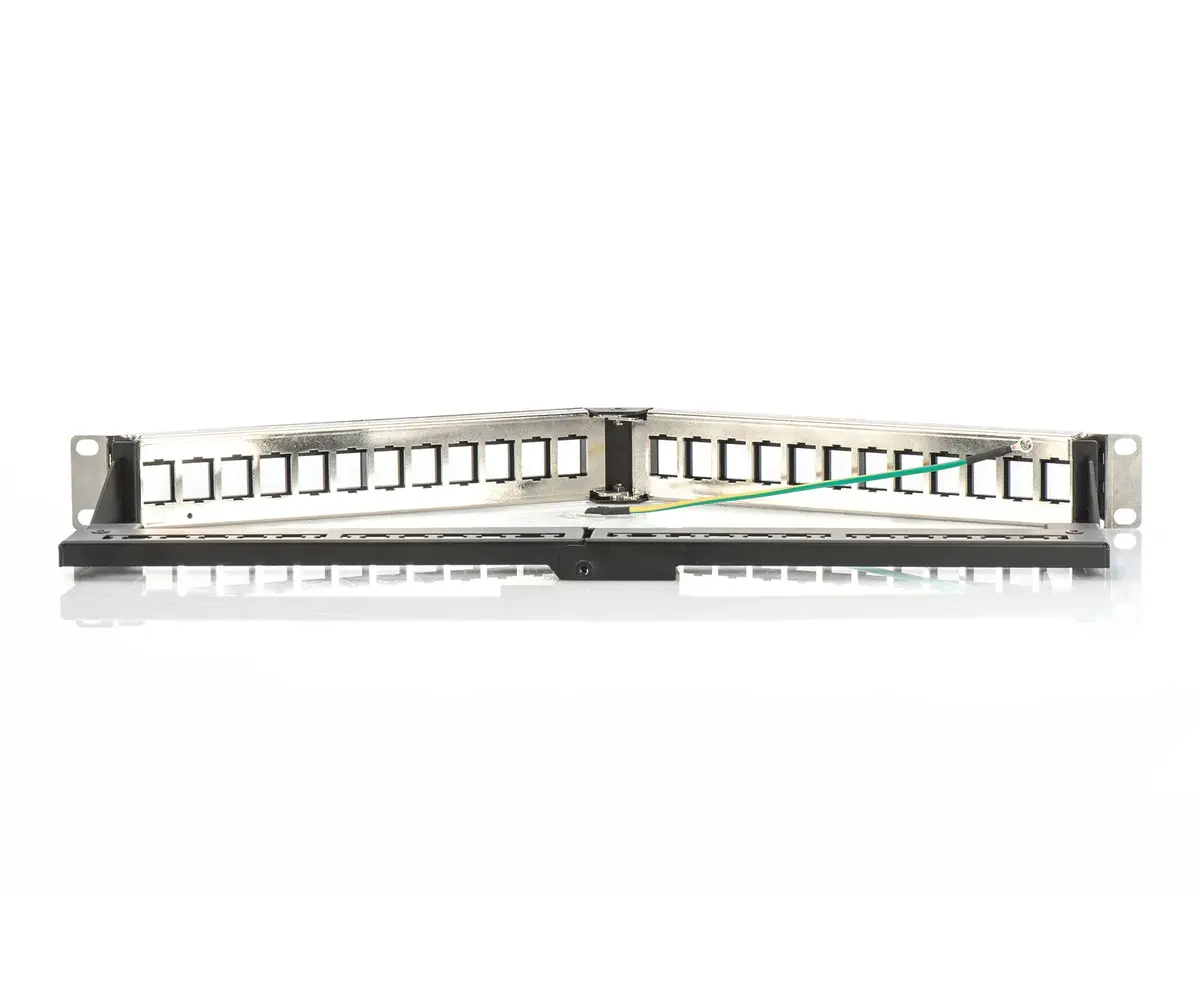

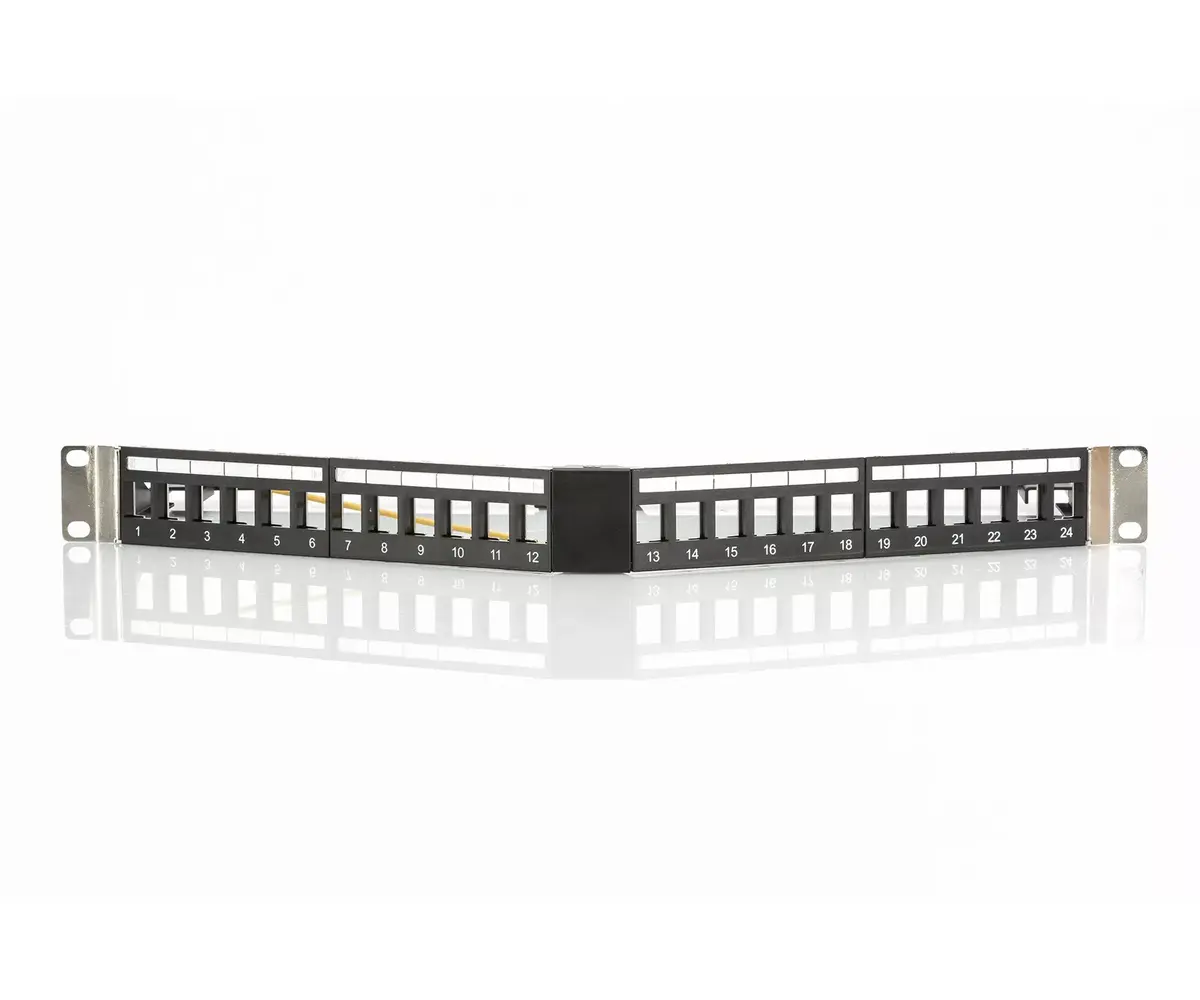

The Digitus Modular Patch Panel V-Design DN-91414S is a high-quality, 24-port rack-mounted solution engineered for professional networking environments. Featuring a distinct V-shaped angled design, this panel facilitates superior cable management by allowing patch cords to be routed efficiently from both sides, which significantly reduces strain on cables and improves airflow within the server rack. Constructed from durable black steel, this panel provides a robust foundation for organizing network infrastructure while maintaining a sleek, modern aesthetic suitable for any server room.

Advantages

The primary benefit of this V-design patch panel is its ability to handle high-density cabling applications with ease. By utilizing an angled orientation, the panel naturally guides cables toward the vertical cable managers, minimizing the need for additional horizontal cable management accessories. This design not only saves valuable rack space but also ensures that individual connections are more accessible for maintenance and troubleshooting. The sturdy steel construction guarantees long-term reliability and protection for your network components.

Suitable for

• High-density server rack installations
• Professional data centers and server rooms
• Structured cabling systems requiring efficient organization
• Networking setups where space optimization is critical

This patch panel may not be suitable for shallow wall-mounted cabinets where the angled design might interfere with door closure or where there is insufficient depth to accommodate the protruding cable management path. It is also not intended for environments requiring shielded cabling if the specific installation demands full-metal shielding continuity that this modular panel does not provide.

Key specifications

• Capacity: 24 ports
• Design: V-shaped angled
• Material: Steel
• Color: Black
• Mounting: 19-inch rack-mount
• Width: 483 mm

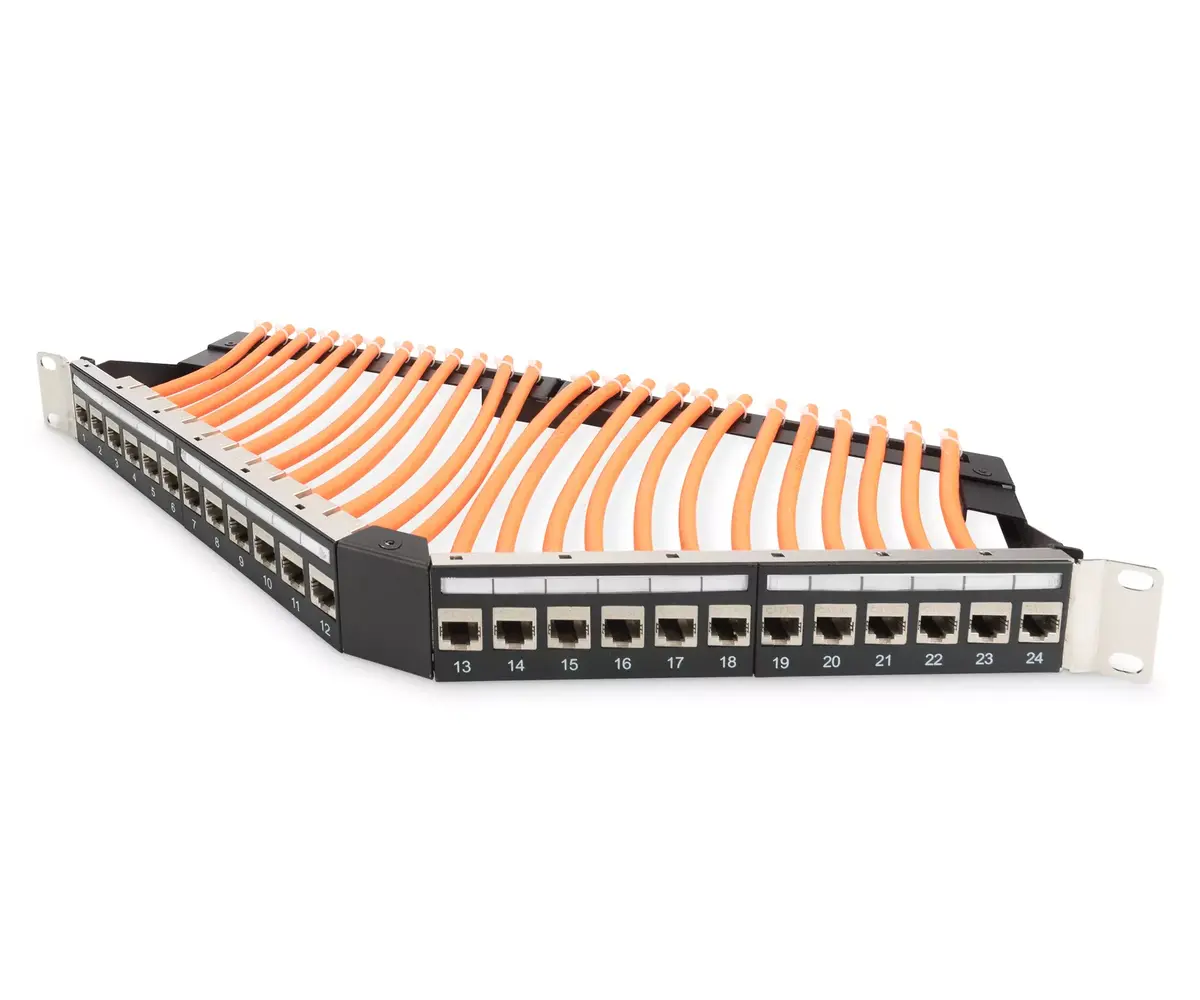

To use the patch panel, mount it securely into your 19-inch server rack using the appropriate rack screws. Once installed, insert your modular keystone jacks into the 24 available ports. Route your patch cords through the angled openings to ensure a clean and organized cable path. Ensure that all cables are properly labeled to facilitate future maintenance and identification of network connections.

What to consider before purchase

• Verify that your server rack has sufficient depth to accommodate the angled design
• Ensure compatibility with your existing keystone jack modules
• Check that the 19-inch rack width is available in your cabinet

For optimal performance and cable longevity, ensure that the bend radius of your patch cords is respected when routing them through the angled ports, and always use cable ties to secure bundles to the rack frame.
