Patch Panel Digitus DN-91524U-EC

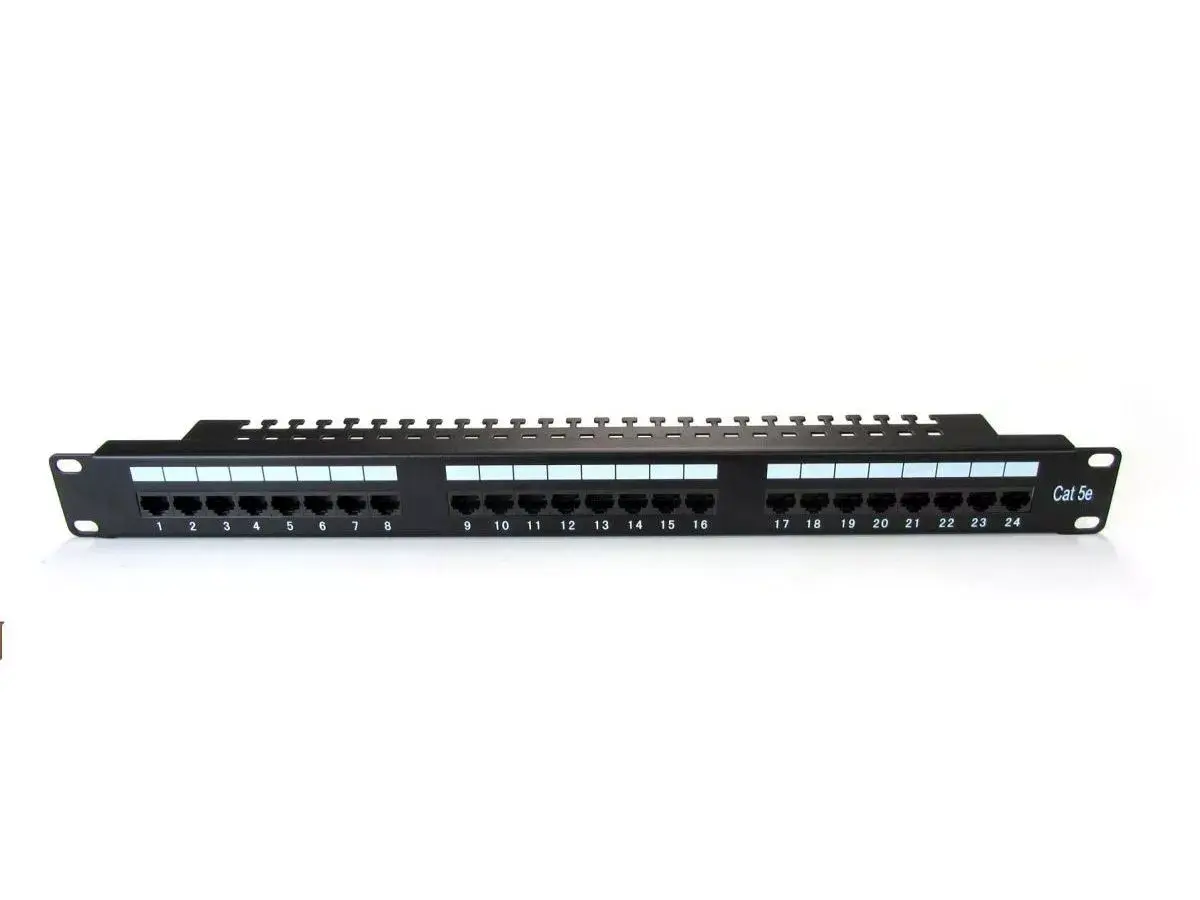

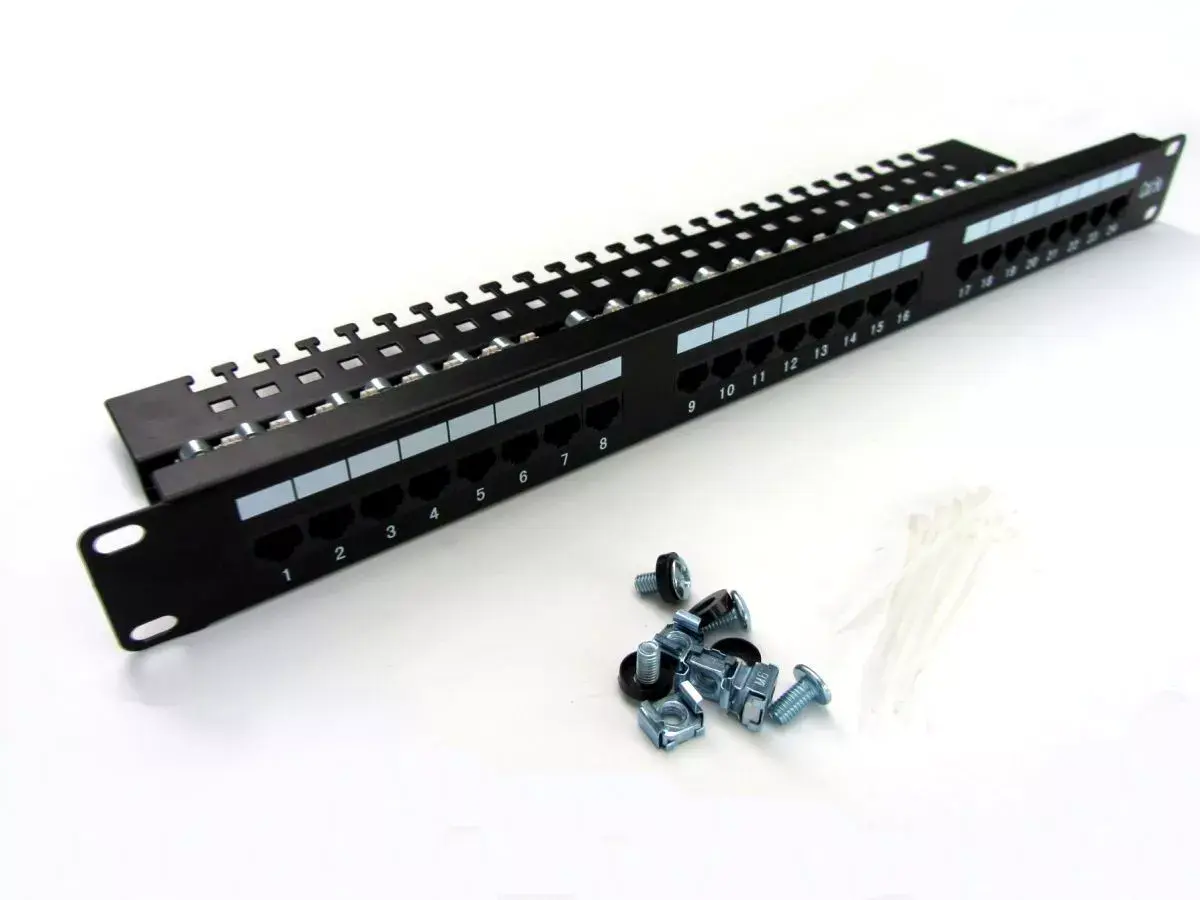

The Digitus DN-91524U-EC patch panel is a 24-port Cat5e solution designed for organized copper network terminations. It accepts AWG 22–26 conductors and provides a compact rack-mounted footprint with dimensions of 510 mm (width) × 160 mm (height) × 50 mm (depth). Finished in black and weighing approximately 1.06 kg, the panel is intended for structured cabling installations where reliable pass-through connections and orderly cable management are required.

Advantages

The patch panel supports Category 5e cabling, allowing standard performance for voice and data networks. Its 24-port layout simplifies consolidation of multiple horizontal cabling runs into a single rack-mounted unit, while compatibility with AWG 22–26 wire sizes ensures flexibility with common cable types. The lightweight metal construction and compact dimensions make it straightforward to install in standard equipment racks and cabinets.

Suitable for

• Small to medium office network racks
• Data closets and telecommunications rooms
• Structured cabling terminations for Cat5e installations
• Environments requiring compact, rack-mounted cable management

Key specifications

• Ports quantity: 24
• Supported cable category: Cat5e
• Supported wire gauge: AWG 22–26
• Product colour: Black
• Dimensions (W × H × D): 510 × 160 × 50 mm
• Weight: 1.06 kg

How to use

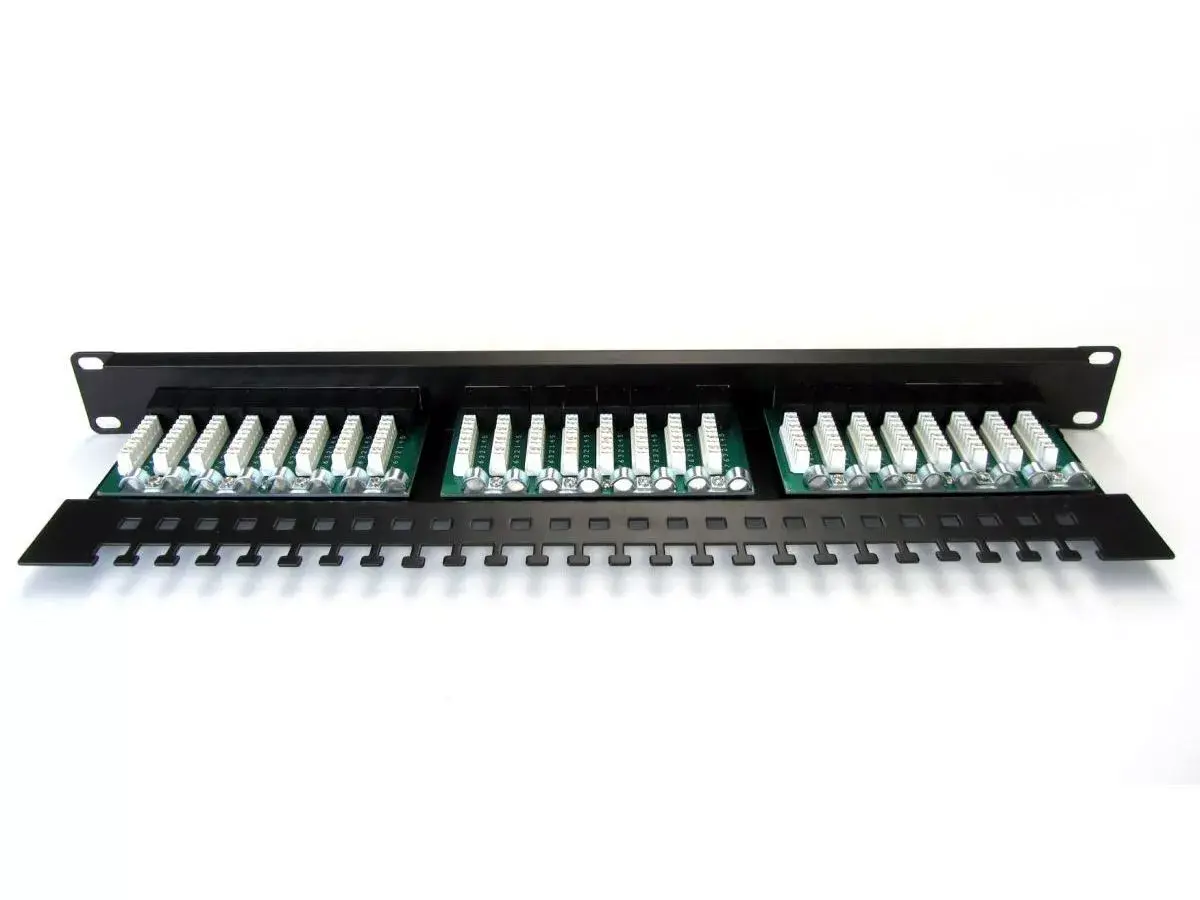

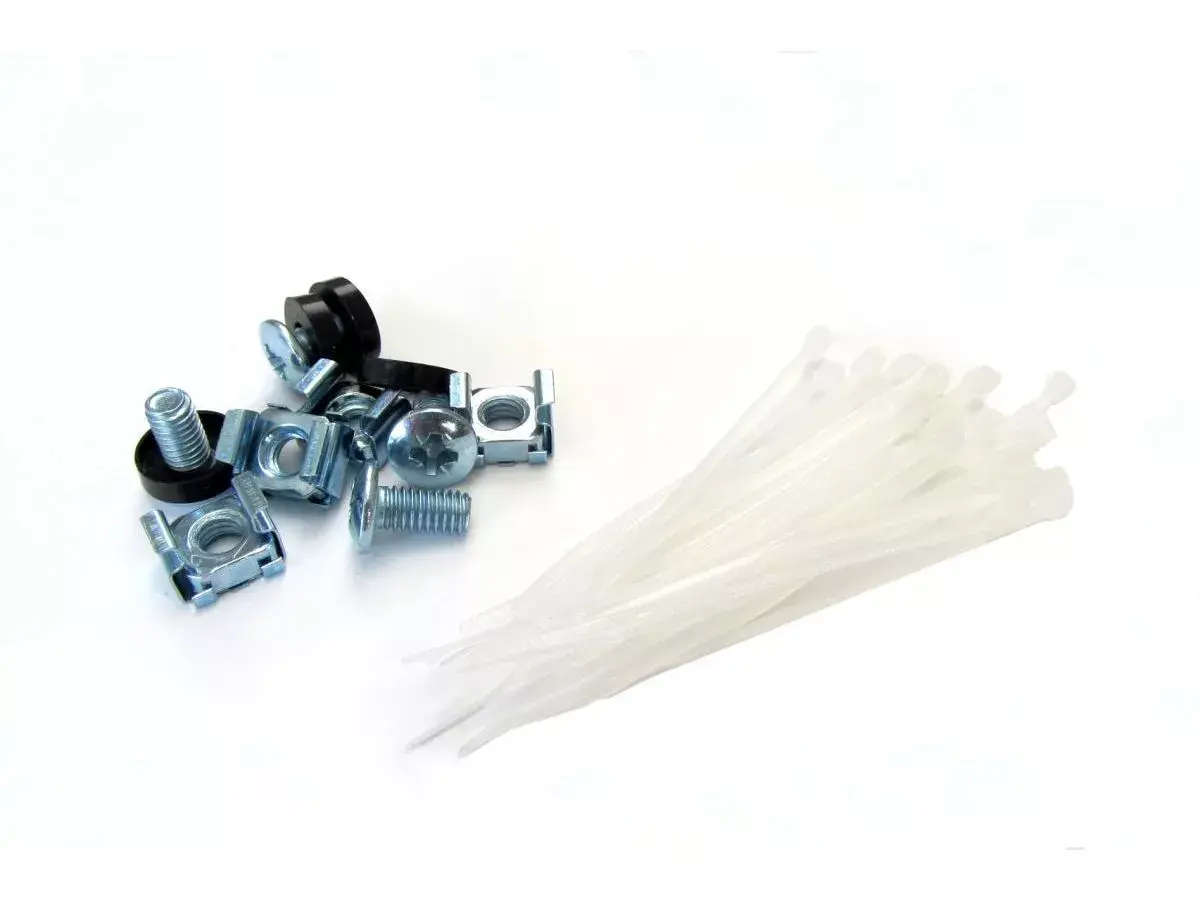

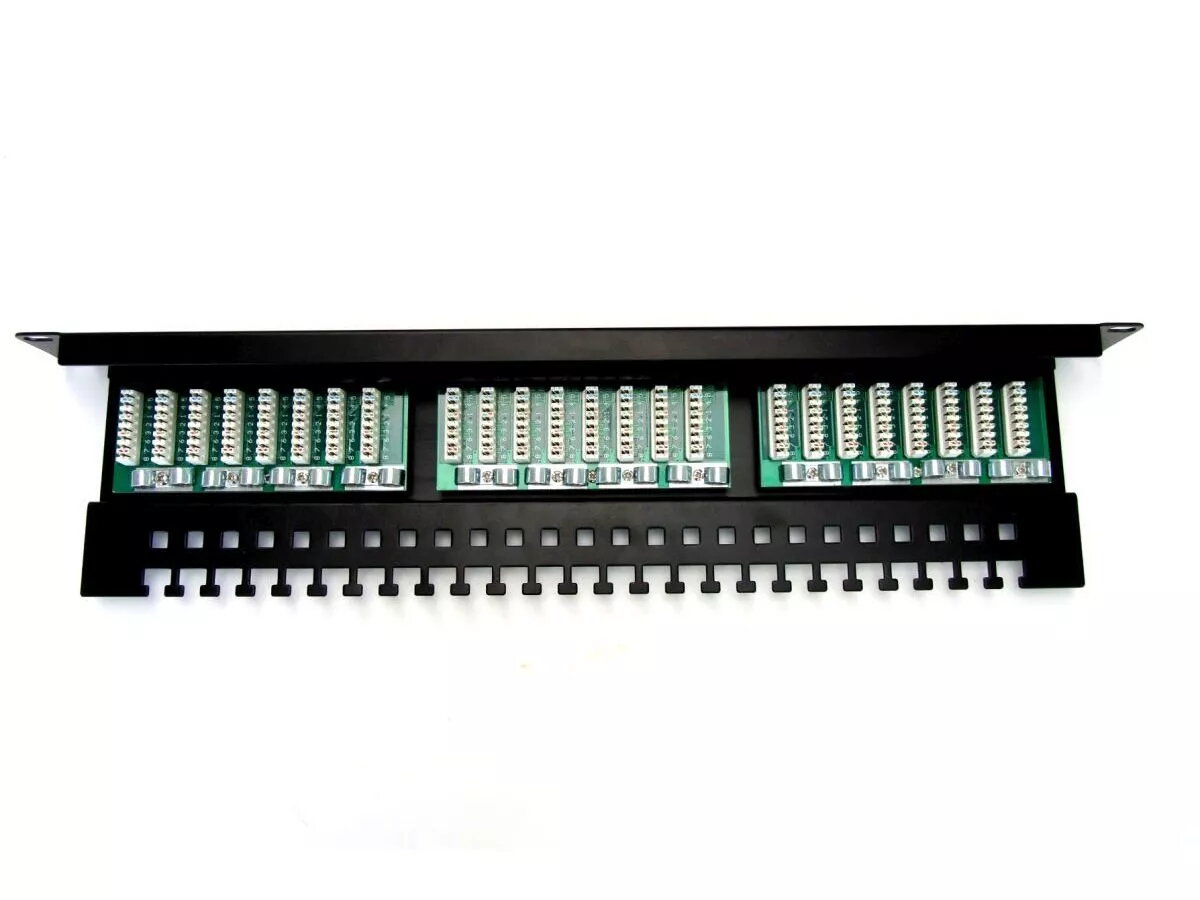

Mount the patch panel into a compatible 19-inch rack or cabinet using appropriate mounting screws. Terminate each incoming Cat5e cable to the panel's IDC terminals according to the chosen wiring standard (T568A or T568B), ensuring proper pair alignment and secure insertion for reliable connections. After termination, label ports as required and route patch cords from active network equipment to the corresponding ports for network connectivity.

Usage recommendations

Maintain proper bend radius for Cat5e cables and avoid excessive strain on terminated conductors. Use cable management accessories such as horizontal managers or Velcro ties to keep patch cords organized and to reduce stress on panel terminations. Verify pair continuity and performance with a cable tester after installation to confirm correct wiring and signal integrity.
