KVM IP Extender Set Digitus DS-55348 4K 60Hz 40000m

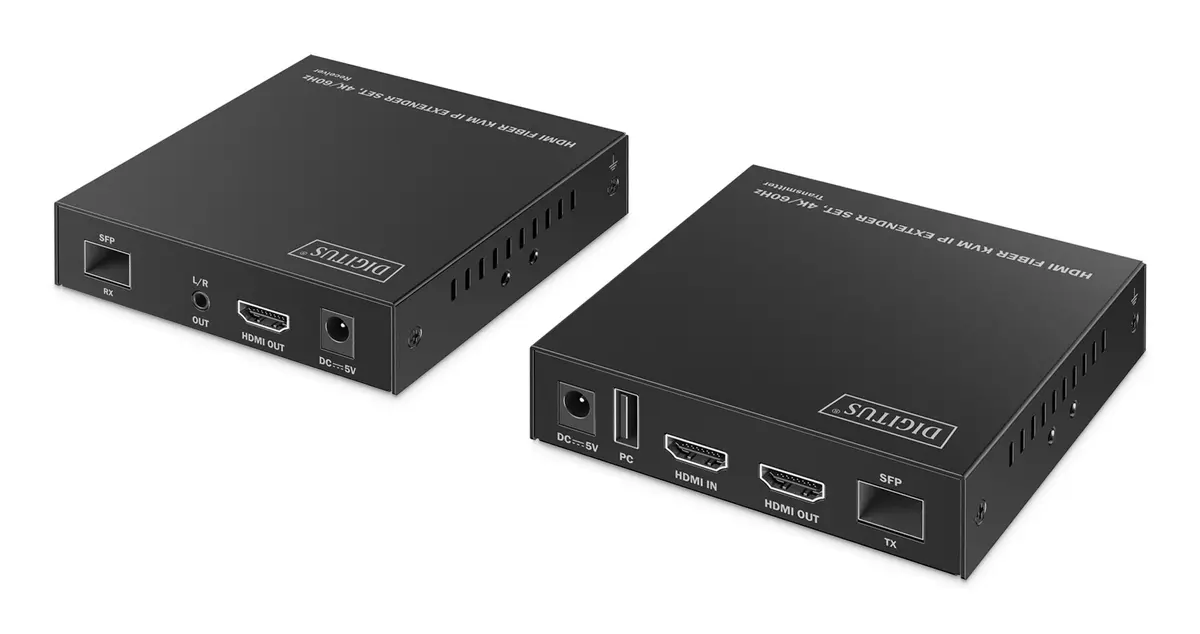

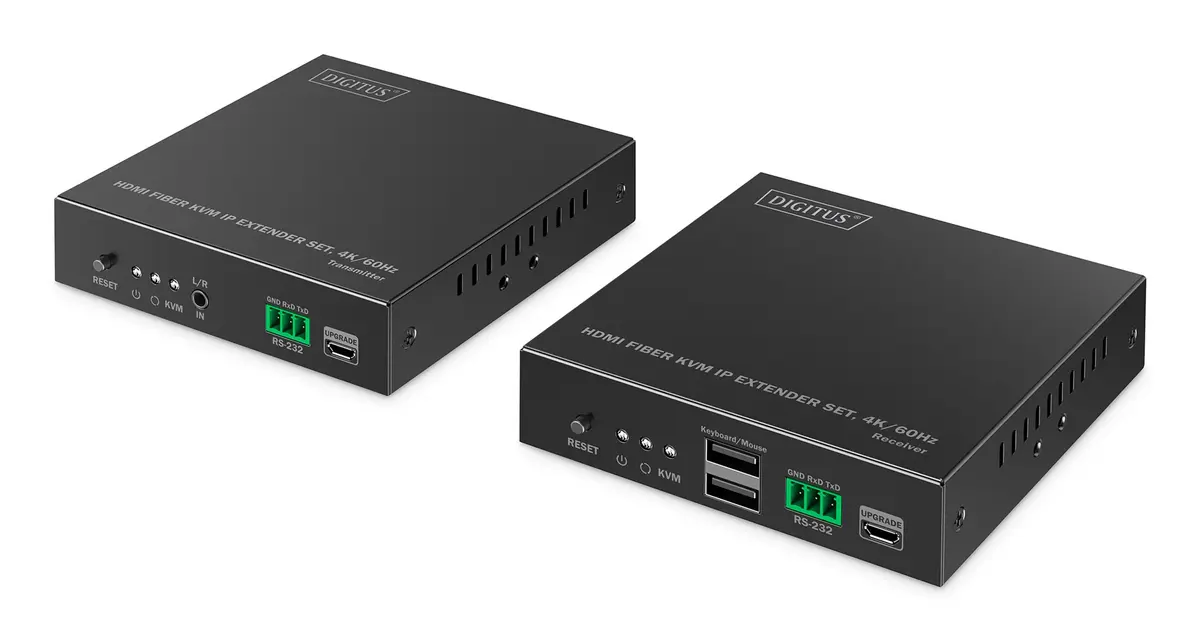

The KVM IP Extender Set Digitus DS-55348 transmits HDMI signals in UHD 4K/60Hz (3840x2160p) over fiber optic cable for long-distance point-to-point or point-to-multipoint installations. The set includes a transmitter (TX) and receiver (RX) and supports singlemode fiber up to 40 km and multimode fiber up to 300 m. It is compatible with LC and SC SFP modules (modules sold separately) and can be expanded via 1G network switches to support up to 253 receivers.

Advantages

This extender set provides loss-free transmission of high-resolution video with low latency (approx. 80–140 ms) and supports HDMI 2.0 and HDCP 2.2/1.4. The receiver includes a KVM function that allows connection of a mouse and keyboard for remote control of the source. Additional features include a local HDMI loop-out on the transmitter, a 3.5 mm stereo audio connection, compatibility with both singlemode and multimode fiber, and support for expansion through cascading on existing 1G network infrastructure.

Suitable for

• Data centers and server rooms
• Conference rooms and meeting facilities
• Digital signage and retail displays
• Broadcast and production environments
• Industrial and control-room applications

Key specifications

• Max. resolution: Ultra HD 4K/60Hz (3840x2160p)
• Max. range (point-to-point): Singlemode up to 40 km, Multimode up to 300 m
• HDMI standard: HDMI 2.0
• HDCP: 2.2 / 1.4
• Max. video bandwidth: 18 Gbps
• Latency: 80–140 ms
• Supports up to 253 receivers (point-to-multipoint)
• SFP compatibility: LC & SC SFP modules (SFP modules not included; example SM: DN-81002, MM: DN-81000)

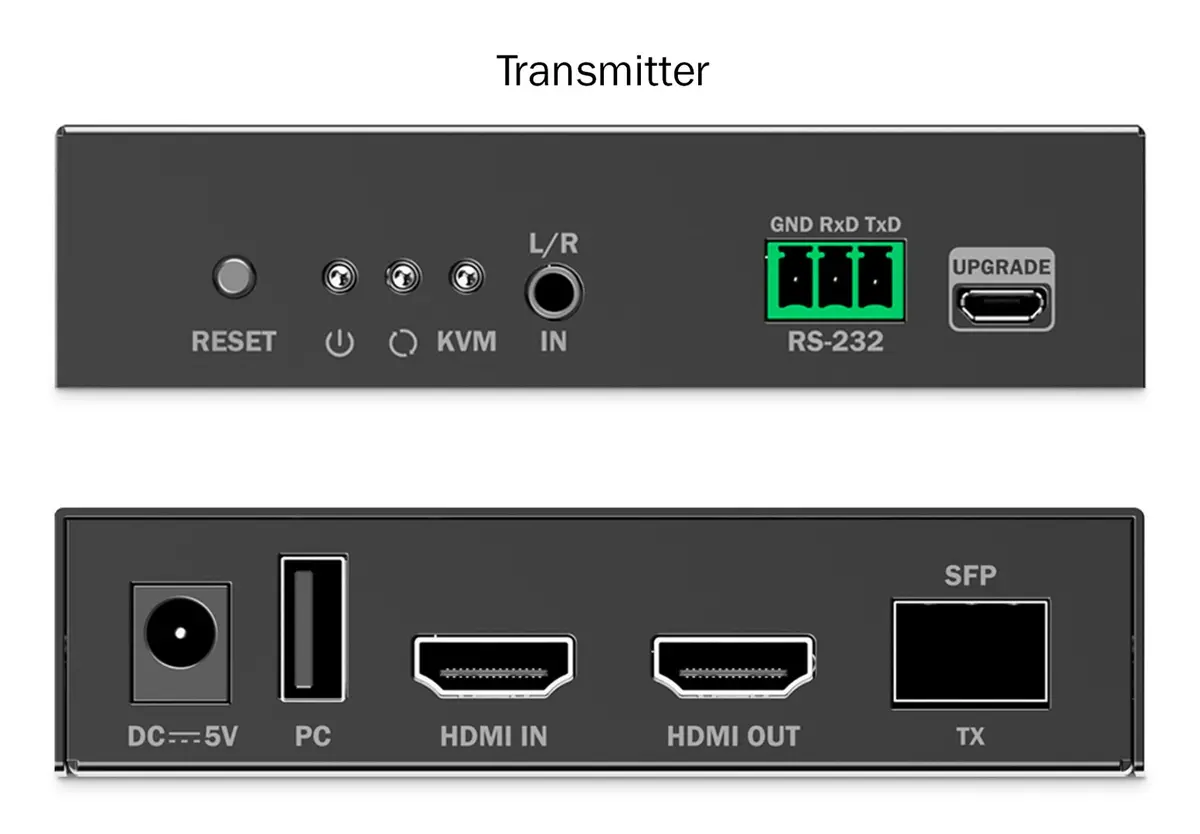

• Transmitter (TX) ports: 1x HDMI input, 1x HDMI loop-out, 1x SFP output (LC/SC), 1x USB-A (1.1) for source, 1x RS232 passthrough, 1x micro USB (FW update), 1x 3.5 mm audio input, DC 5V/2A power

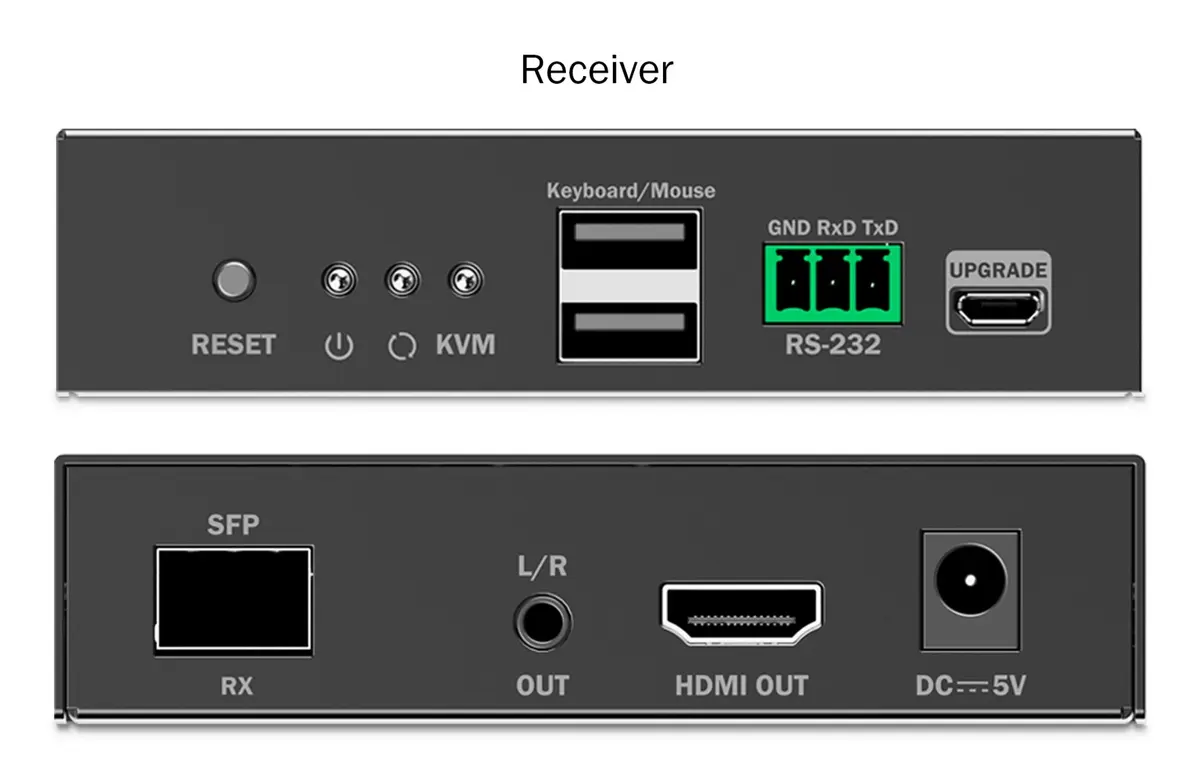

• Receiver (RX) ports: 1x HDMI output, 1x SFP input (LC/SC), 2x USB-A (1.1) for mouse & keyboard, 1x 3.5 mm audio output
• Operating temperature: -10 °C to 50 °C
• Power consumption: TX approx. 7.5 W, RX approx. 7.5 W
• Dimensions (each unit): 10.6 x 10.3 x 2.6 cm
• Weight: TX 307 g, RX 303 g
• Housing: Metal, Colour: Black

How to use

Connect the HDMI source to the transmitter HDMI input and, if required, attach a local monitor to the transmitter HDMI loop-out. Install the appropriate SFP module in the SFP slot (singlemode or multimode) and connect the fiber optic cable between the TX and RX. Connect the receiver HDMI output to the display and, if needed, attach mouse and keyboard to the USB-A ports on the receiver to use the KVM function. Provide power to both units using the supplied DC 5V/2A adapters and perform any firmware updates via the micro USB port if available.

Usage recommendations

For reliable long-distance transmission, select the correct SFP module and fiber type for your installation (singlemode for distances up to 40 km, multimode for shorter runs up to 300 m). Use quality LC/SC connectors and keep HDMI cables under the recommended 5 m maximum length. When expanding via network switches, use 1G switch infrastructure and follow cascading best practices to ensure stable point-to-multipoint distribution.
