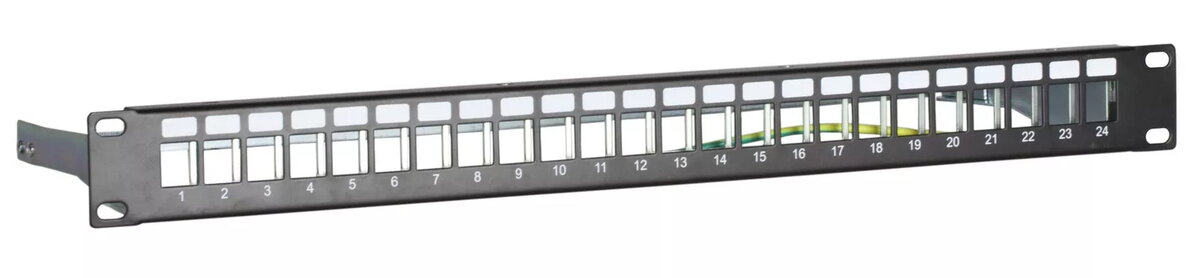

Patch Panel DSIT DS-Patch-24STP 1U Keystone STP Black

The DSIT DS-Patch-24STP 1U Keystone STP Black is a rack-mounted patch panel engineered for structured cabling and tidy network installations. This 1U panel accepts keystone modules and implements S/UTP shielding to support reduced electromagnetic interference in copper cabling runs. Its black powder-coated finish and compact form factor make it suitable for standard 19-inch racks where organized cable routing and reliable connector access are required.

Advantages

The panel provides a compact 1U footprint that maximizes rack space while offering 24 keystone ports for flexible port configuration. Shielded design (S/UTP) helps maintain signal integrity in environments with potential EMI sources. The keystone format allows easy installation and replacement of individual connectors or inserts without full-panel rework. Built from durable materials and finished in black, the unit resists wear from routine use and contributes to a clean, professional rack appearance.

Suitable for

• Enterprise and SMB network racks requiring organized copper patching
• Telecommunications rooms and data cabinets with nearby EMI sources
• Patch field installations that need flexible keystone connector choices
• Upgrades or expansions where a 1U panel is preferred to save rack space

Key specifications

• Form factor: 1U rack-mounted panel for standard 19-inch racks
• Port format: 24 keystone ports compatible with keystone jacks and inserts
• Shielding: S/UTP (screened unshielded twisted pair) compatible design for reduced interference
• Finish and material: black powder-coated metal construction for durability

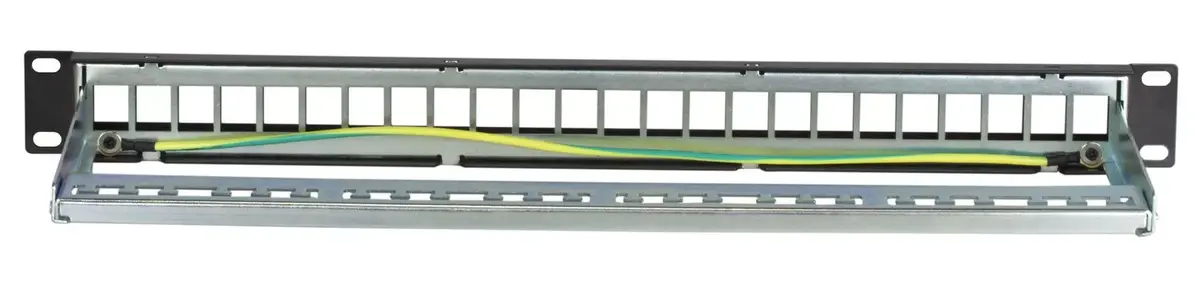

• Cable management: front-facing patch ports with rear cable routing space

How to use

Install the patch panel into a standard 19-inch rack or cabinet using appropriate rack screws and mounting hardware. Populate the keystone openings with compatible keystone jacks of the desired connector type (for example, RJ45 shielded jacks) and terminate the incoming copper cabling according to the jack manufacturer’s wiring scheme. Route cables neatly to the rear of the panel, secure them with cable ties or management accessories, and label ports to reflect network topology for straightforward troubleshooting and maintenance.

Usage recommendations

For optimal performance, use shielded keystone jacks and ensure the panel and cable shields are properly grounded. Maintain bend-radius requirements for Ethernet cables, avoid tight bends behind the panel, and leave sufficient slack for future re-termination. Regularly inspect connections and labels to keep the patch field organized and to reduce downtime during changes.
