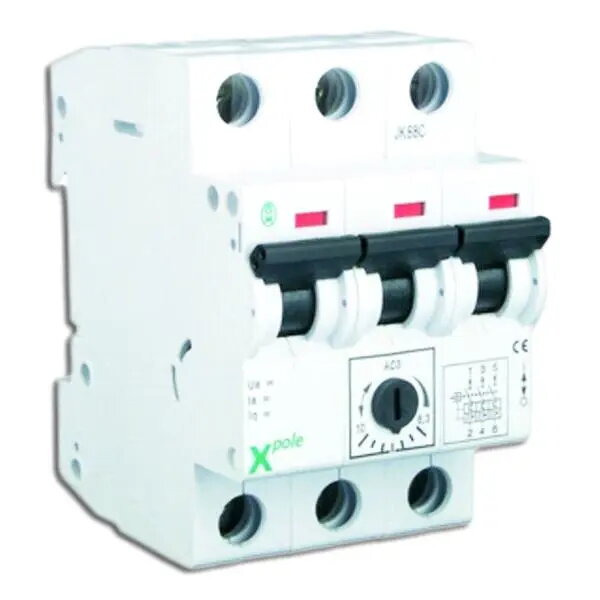

Motor circuit breaker EATON Z-MS-4,0/3 3-pole (model 248409) - overload and short-circuit protection

The EATON Z-MS-4,0/3 motor circuit breaker is a three-pole protection device designed for reliable overload and short-circuit protection of three-phase motors and associated circuits. The unit combines adjustable thermal and magnetic trip elements to adapt to both starting currents and steady-state running conditions, enabling accurate protection and selective tripping in industrial and commercial installations. The compact design facilitates panel mounting and integration into motor control circuits where both motor protection and circuit isolation are required.

Advantages

The motor circuit breaker provides adjustable thermal-magnetic protection that covers a wide range of motor starting and running currents while reducing nuisance trips. Its three-pole configuration ensures simultaneous disconnection of all phases for safe isolation. The device is designed for reliable operation in demanding electrical environments and supports straightforward installation and maintenance in motor control panels.

Suitable for

• Protection of three-phase motors in industrial machinery
• Overload and short-circuit protection in commercial electrical panels
• Motor starters and control circuits requiring manual or automatic isolation
• Retrofit or new installations where adjustable thermal-magnetic protection is needed

Key specifications

• Number of poles: 3-pole configuration for three-phase circuits
• Protection type: Combined thermal (overload) and magnetic (short-circuit) protection
• Adjustability: Adjustable trip settings to match motor full-load and starting currents
• Mounting: Panel or control cabinet mounting suitable for motor control applications
• Function: Motor protection and circuit isolation with coordinated tripping behavior

How to use

Select trip settings according to the motor nameplate full-load current and expected starting current, then install the breaker in the control panel following local electrical codes and the manufacturer's mounting and wiring instructions. Ensure correct phase sequence and tight electrical connections. After installation, perform insulation and continuity checks before energizing. Adjust the thermal setting so that it protects the motor under normal load while allowing for permissible starting current; the magnetic setting should be set to clear short-circuit faults quickly without affecting selectivity with upstream protection devices.

Usage recommendations

Use this motor circuit breaker as part of a coordinated protection scheme: verify compatibility with upstream and downstream protection devices and confirm settings during commissioning. Periodically inspect connections and trip operation, and replace or service according to operating hours and environmental conditions to ensure continued motor protection and safety.
