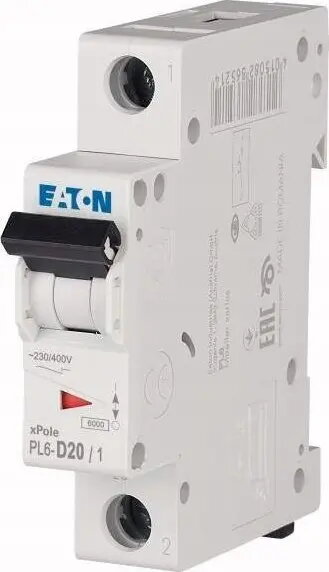

Eaton PL6-D20/1 Miniature Circuit Breaker 1-Pole 20A 6kA D-Characteristic

The Eaton PL6-D20/1 is a professional-grade 1-pole miniature circuit breaker engineered to provide robust protection for electrical circuits in both residential and commercial environments. This device is specifically designed to handle electrical loads up to 20A and offers a reliable breaking capacity of 6kA, ensuring effective interruption of current during fault conditions. By integrating advanced tripping technology, it serves as a critical safety component in modern electrical distribution systems.

Advantages

This circuit breaker stands out due to its D-type tripping characteristic, which is specifically optimized for applications involving equipment with high inrush currents. The robust construction ensures long-term durability and consistent performance under varying load conditions. Its compact 1-pole design allows for efficient space utilization within standard distribution boards, while the high-quality internal mechanism provides precise response times to overloads and short circuits, thereby protecting connected wiring and appliances from potential damage.

Suitable for

• Circuits powering motors with high starting currents
• Transformers and large inductive loads
• Commercial lighting systems with high inrush requirements
• Residential distribution boards requiring specialized protection

This device may not be suitable for standard household circuits that do not involve high inrush currents, as the D-characteristic is designed to tolerate temporary surges that might otherwise cause nuisance tripping in standard B or C curve breakers. It is also not intended for use in DC circuits unless specifically rated for such applications.

Key specifications

• Rated current: 20A
• Number of poles: 1
• Breaking capacity: 6kA
• Tripping characteristic: D
• Mounting type: DIN rail

The device is designed for installation on a standard DIN rail within an electrical enclosure. It should be installed by a qualified electrician in accordance with local electrical codes. Ensure that the supply voltage and load requirements are compatible with the breaker specifications before installation. Once mounted, the toggle switch allows for manual operation to disconnect or reconnect the circuit as needed.

What to consider before purchase

• Verify that the D-characteristic is appropriate for your specific load type
• Ensure the 20A rating matches the wire gauge and circuit requirements
• Confirm compatibility with existing DIN rail distribution board layouts

Usage recommendations: Regularly inspect the circuit breaker for signs of physical damage or discoloration. Periodically test the mechanical operation of the toggle switch to ensure it moves freely. If the breaker trips, investigate the cause of the overload or short circuit before attempting to reset the device.
