Eaton B005-DPUA2-K 2‑port DisplayPort/USB KVM switch

Name: KVM switch Eaton B005-DPUA2-K — B005-DPUA2-K
Brand: EATON
SKU: 11690603
Price: 193.49 EUR
Availability: OutOfStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

KVM switch Eaton B005-DPUA2-K — 2-port DisplayPort/USB, 4K 60 Hz, HDR, HDCP 2.2, DP 1.4, USB sharing

Eaton B005-DPUA2-K 2‑port DisplayPort/USB KVM switch Photo 1

Eaton B005-DPUA2-K 2‑port DisplayPort/USB KVM switch Photo 2

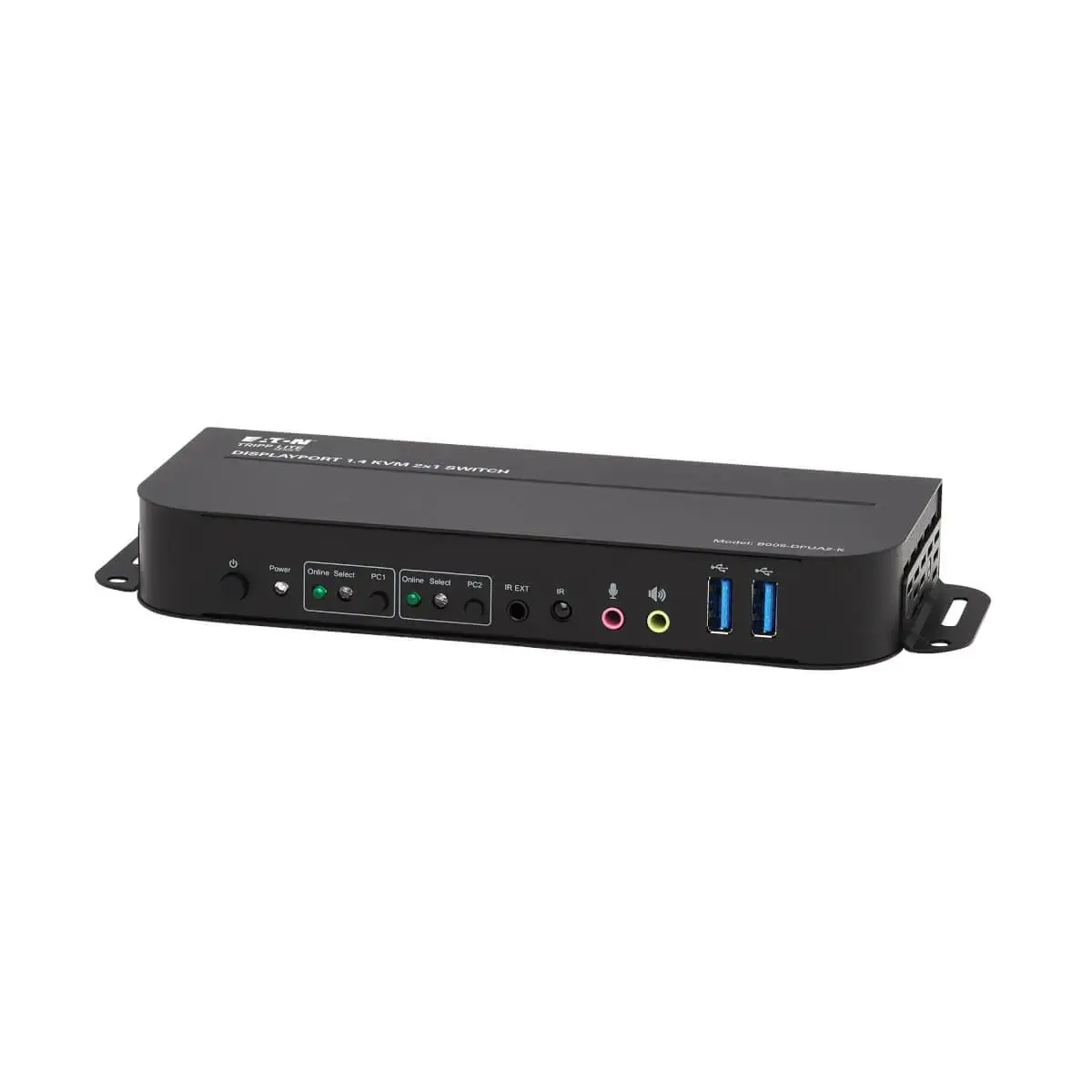

Eaton B005-DPUA2-K 2‑port DisplayPort/USB KVM switch Photo 3

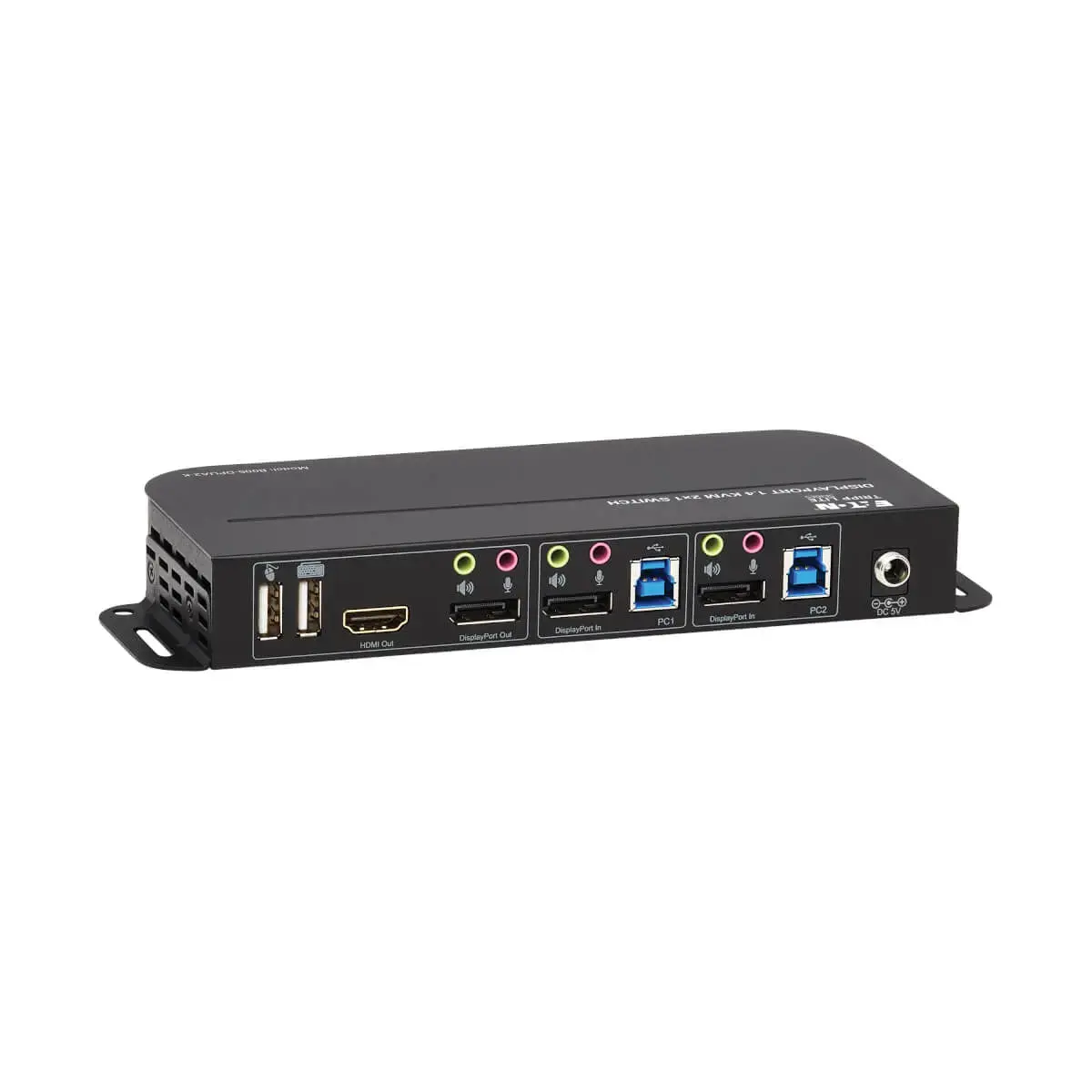

Eaton B005-DPUA2-K 2‑port DisplayPort/USB KVM switch Photo 4

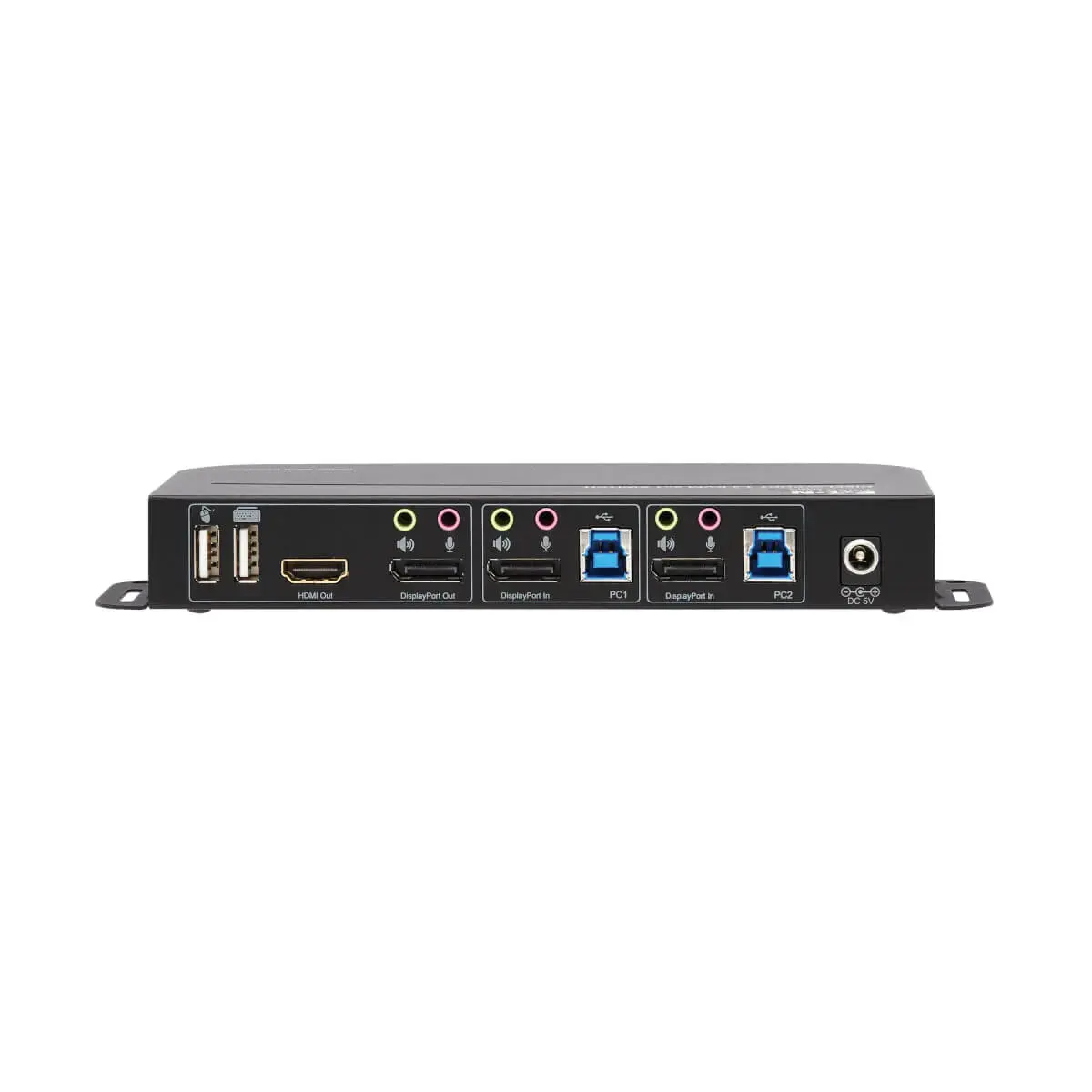

Eaton B005-DPUA2-K 2‑port DisplayPort/USB KVM switch Photo 5

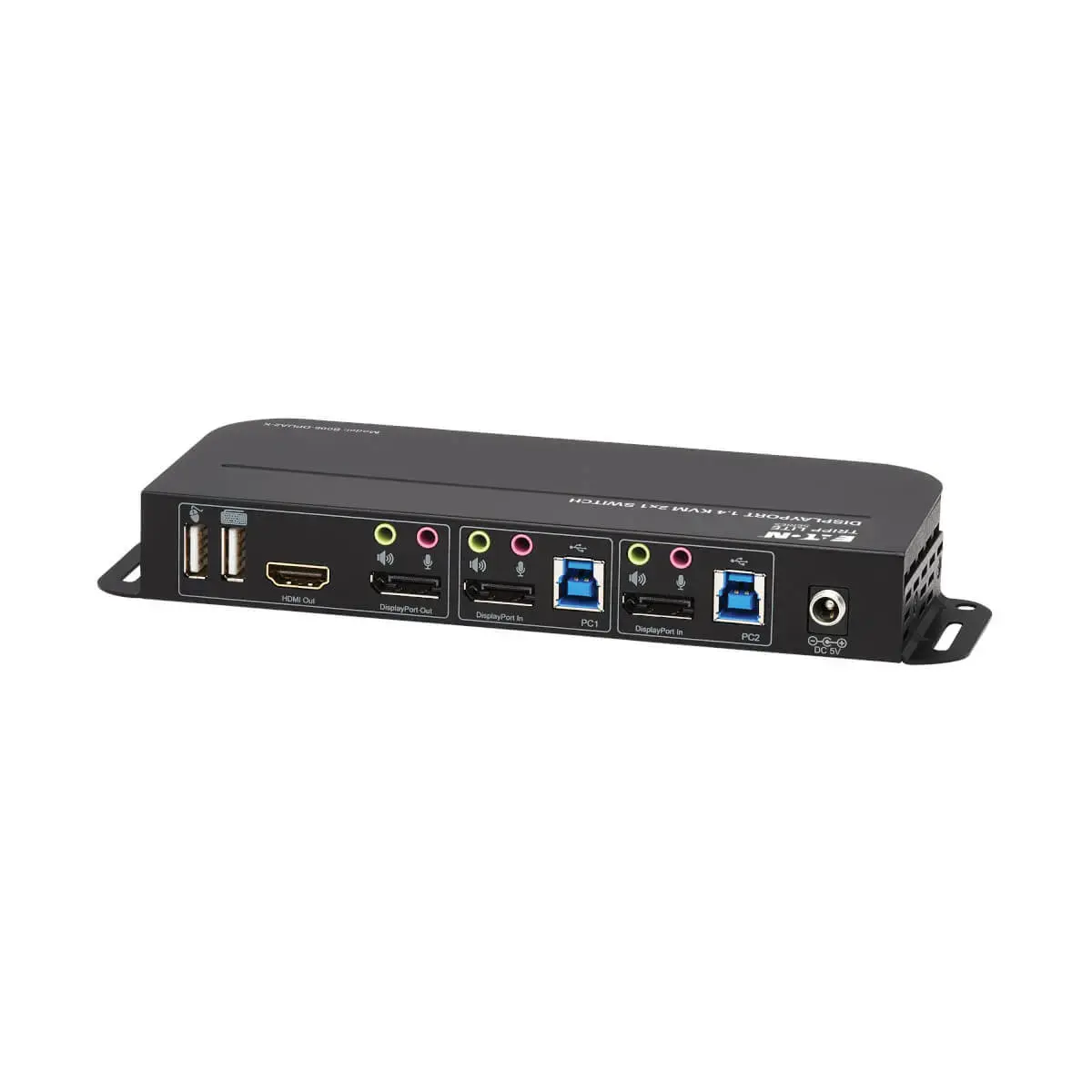

Eaton B005-DPUA2-K 2‑port DisplayPort/USB KVM switch Photo 6

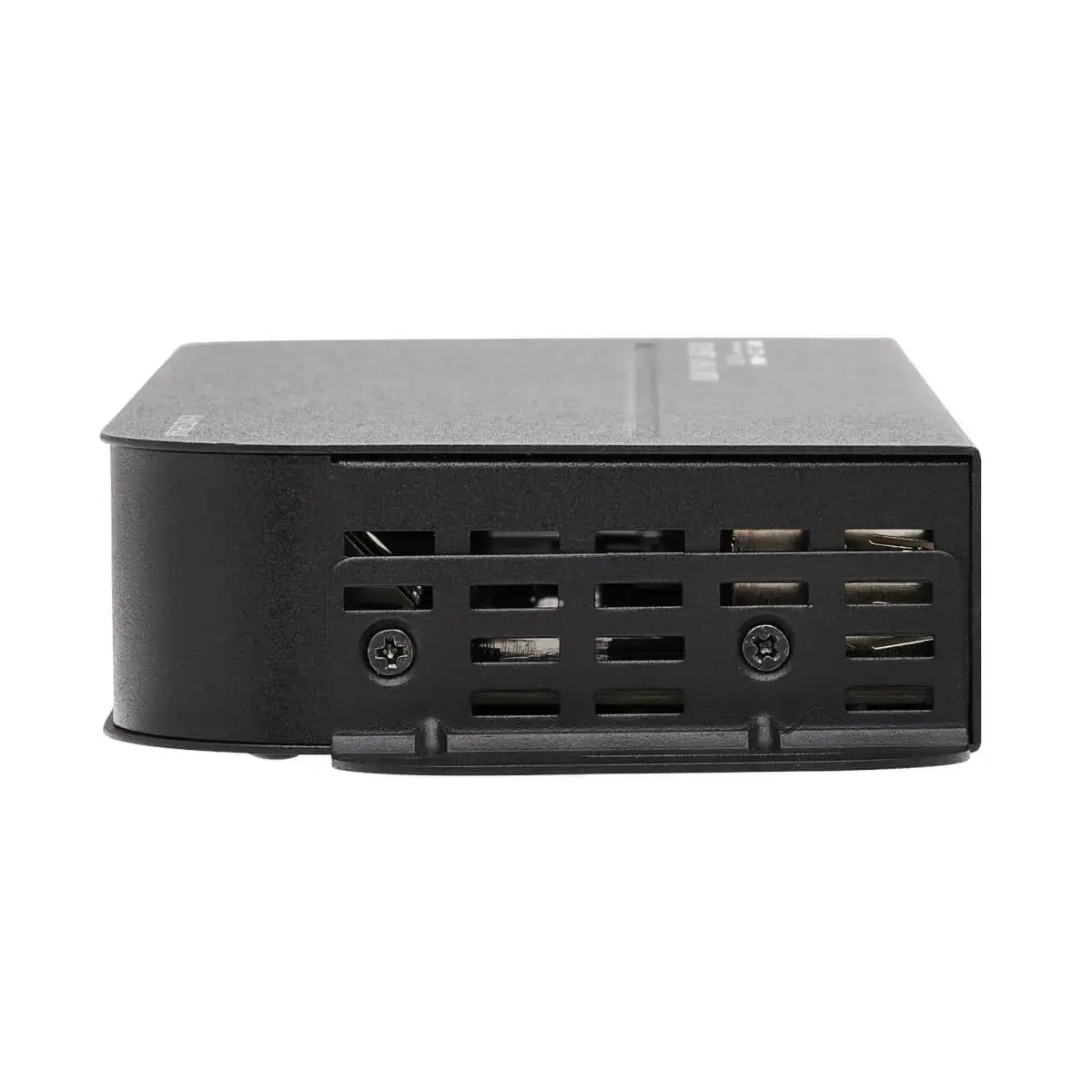

Eaton B005-DPUA2-K 2‑port DisplayPort/USB KVM switch Photo 7

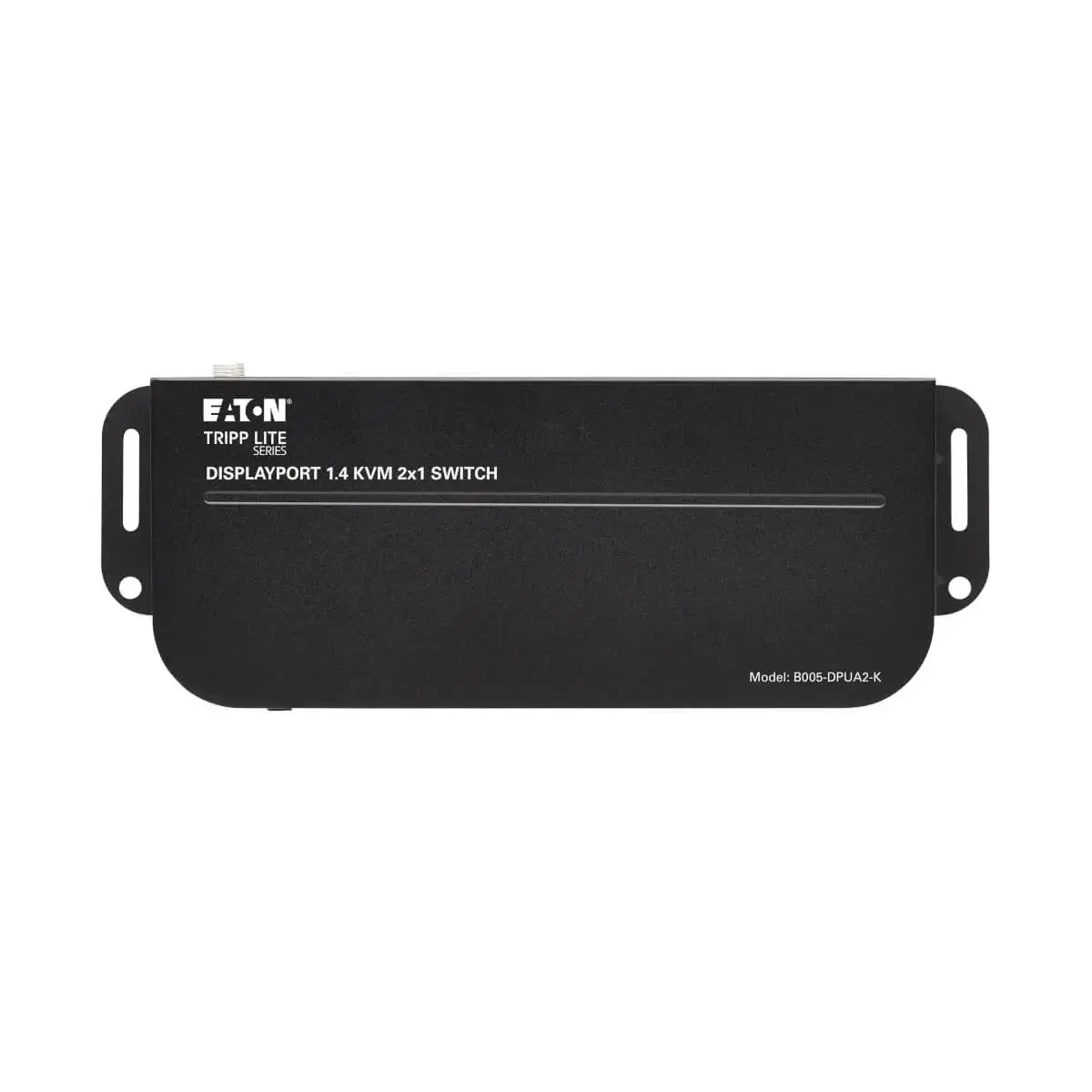

Eaton B005-DPUA2-K 2‑port DisplayPort/USB KVM switch Photo 8

Eaton B005-DPUA2-K 2‑port DisplayPort/USB KVM switch Photo 9

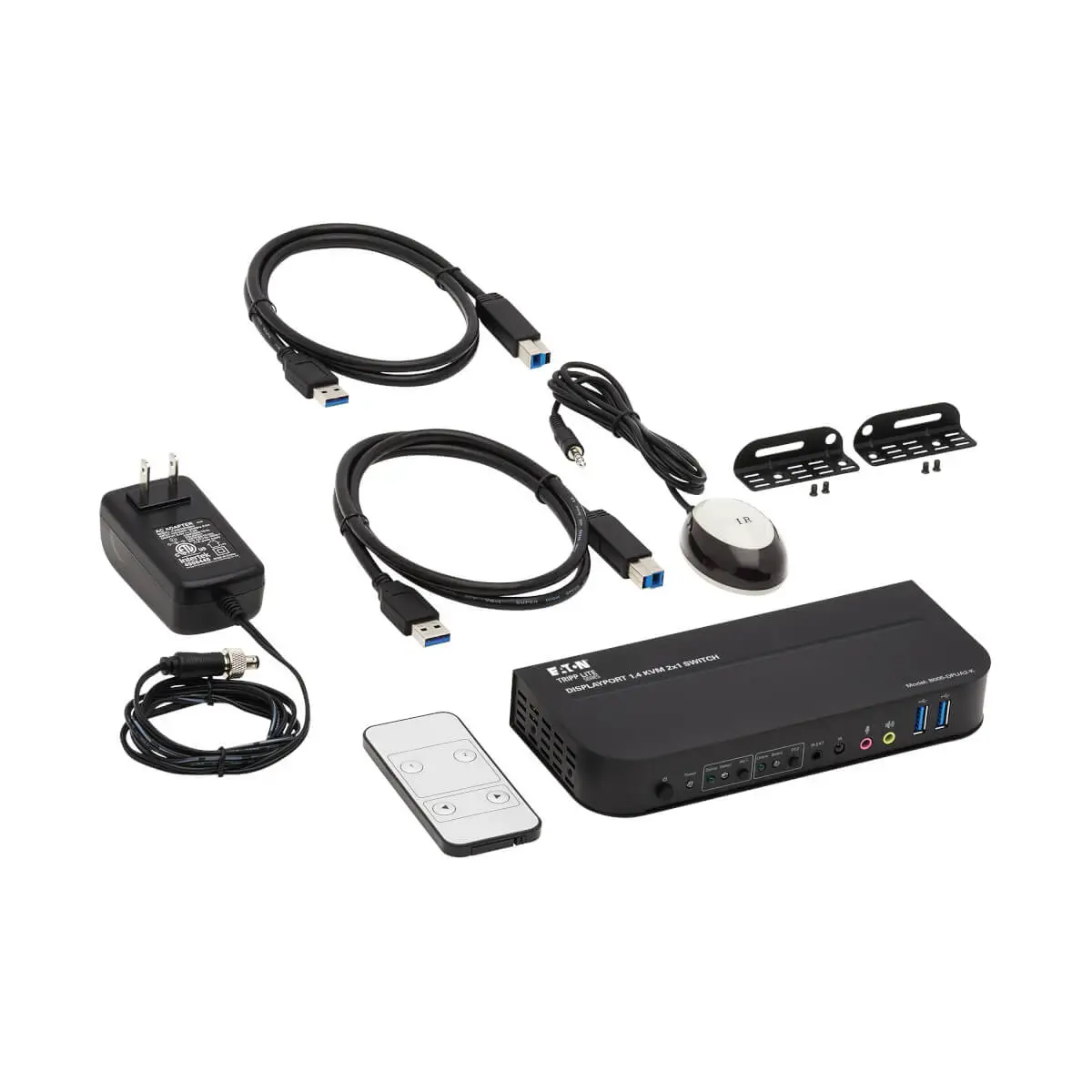

Eaton B005-DPUA2-K 2‑port DisplayPort/USB KVM switch Photo 10

Short description

Eaton B005-DPUA2-K is a 2‑port DisplayPort/USB KVM switch that lets you control two computers with a single keyboard, mouse and monitor. Supports up to 4K Ultra HD (4096×2160) at 60 Hz, HDR and HDCP 2.2 over DP 1.4. Includes IR remote control, USB sharing and 1.2 m USB 3.0 cables. Metal housing, black finish, AC powered (100–240 V, 50–60 Hz). RoHS compliant.

Warranty: 2 Years

SKU: 11690603

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Eaton B005-DPUA2-K is a 2‑port DisplayPort/USB KVM switch that allows two DisplayPort-enabled computers or devices to share a single monitor, keyboard and mouse. It supports DisplayPort++ for connecting an HDMI or DisplayPort monitor and delivers Ultra HD video up to 4096 x 2160 (4K) at 60 Hz with HDR and 4:4:4 chroma subsampling. The unit includes USB 3.0 cables, an IR remote, and a metal housing with mounting brackets; it is powered by an external AC adapter and is compatible with major operating systems.

Advantages

This KVM switch saves desk space by letting two computers share one display, one USB keyboard and one USB mouse while also providing two USB 3.0 hub ports for shared peripherals. It supports DP++ for flexible monitor connectivity (DisplayPort or HDMI), transmits true 4K@60Hz video with HDR and 4:4:4 color, and is HDCP 2.2 compliant for protected 4K streaming. Multiple switching methods are available—front-panel buttons, hotkeys, mouse movement, IR remote or auto-scan—and included USB cables enable quick plug-and-play setup without additional drivers.

Suitable for

Office workstations that require switching between two computers
Home studios or media centers sharing a single 4K display
Dual-computer gaming or streaming setups needing 4K@60Hz and 4:4:4 color
Environments that share USB peripherals such as printers, external drives or webcams

Key specifications

Display inputs: 2 × DisplayPort
Display outputs: 1 × DisplayPort output and 1 × HDMI output (DP++); only one monitor used at a time
Maximum resolution: up to 4096 × 2160 (4K) at 60 Hz with 4:4:4 chroma subsampling
HDR support: Yes
HDCP compliance: HDCP 2.2
USB: 2 × USB 3.0 hub ports for shared peripherals; includes USB 3.0 host cables
Switching methods: front-panel push buttons, hotkeys, mouse traversal, IR remote, Auto Scan
Housing: metal with mounting brackets for wall or under-desk installation
Power: external AC adapter

How to use

Connect each computer to the KVM switch using the included USB 3.0 cables and DisplayPort video cables. Attach a single monitor to either the DisplayPort or HDMI output (DP++ supports passive conversion to HDMI), then connect your USB keyboard and mouse to the switch. Power the unit with the supplied external adapter. Use the front-panel buttons, the IR remote, hotkey commands or mouse movement to switch control between connected computers; enable Auto Scan if you want the switch to cycle through inputs automatically. The device is plug-and-play and works with Windows, macOS and Linux without additional drivers.

Usage recommendations

Use high-quality DisplayPort or HDMI cables rated for 4K@60Hz and HDR to ensure full video performance. For protected 4K streaming, confirm source and display support HDCP 2.2. When sharing high-bandwidth USB devices, connect them to the USB 3.0 hub ports to benefit from maximum transfer speeds.

Specifications

Mouse port type:: USB
Keyboard port type:: USB
Video port type:: HDMI/DisplayPort
Number of computers controlled:: 2
Weight:: 0.37 kg
Product colour:: Black

All features

Performance

Plug and Play:: Yes
Maximum resolution:: 4096 x 2160
Number of users:: 1 user(s)
Number of displays supported:: 2
Data transfer rate (max):: 5 Gbit/s
HD type:: 4K Ultra HD
Audio channels:: 7.1
Auto scan delay (min):: 5 s
Auto scan delay (max):: 999 s
Video bandwidth:: 60 Hz

Ports & interfaces

Headphone outputs:: 4
DC-in jack:: Yes
Keyboard port type:: USB
Mouse port type:: USB
Video port type:: HDMI/DisplayPort
Number of computers controlled:: 2
HDMI ports quantity:: 1
Audio connections:: Yes
HDMI version:: 2.0
HDCP:: Yes
DisplayPorts quantity:: 3
DisplayPort version:: 1.4
Number of microphone inputs:: 4
USB hub:: Yes
Console ports:: USB A, HDMI, DisplayPort, 3.5mm mic, 3.5mm headphone
Console USB ports quantity:: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity:: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity:: 2

Packaging content

AC adapter included:: Yes
Cables included:: USB Type-A to USB Type-B
Manual:: Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 12 W
Power source:: AC
Input voltage:: 100 - 240
Output voltage:: 5
External power adapter:: Yes
Input current:: 0.6
Output current:: 3 A
AC input frequency:: 50 - 60
Compatible power plug types:: UK, EU, AU, US

Logistics data

Country of origin:: Vietnam
Master (outer) case height:: 199.9 mm
Master (outer) case width:: 340.1 mm
Master (outer) case gross weight:: 3500 g
Master (outer) case length:: 249.9 mm
Products per master (outer) case:: 5 pc(s)
Master (outer) case GTIN (EAN/UPC):: 10037332254884
Harmonized System (HS) code:: 85176200

Packaging data

Package weight:: 910 g
Package depth:: 200.4 mm
Package height:: 65 mm
Package width:: 230.1 mm
Package type:: Box

Operational conditions

Operating relative humidity (H-H):: 10 - 85
Storage temperature (T-T):: -10 - 80
Operating temperature (T-T):: 0 - 45
Storage relative humidity (H-H):: 5 - 90

Display

Built-in display:: No

Design

Certification:: CE, FCC, REACH
Rack mounting:: No
Hot keys:: Yes
Cable length:: 1.2 m
LED indicators:: Y
Product colour:: Black
Housing material:: Metal

Weight & dimensions

Weight:: 0.37 kg
Height:: 25.9 mm
Width:: 178.1 mm
Depth:: 74.9 mm

Sustainability

Compliance certificates:: RoHS
