Eaton SRW12USDP 12U wall-mount rack enclosure

Name: Wall-mount 12U Rack Enclosure Eaton SRW12USDP
Brand: EATON
SKU: 10467412
Price: 1053.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Wall-mount 12U Rack Enclosure Eaton SRW12USDP — 600.2×647.7×636.5 mm, IP20, black

Eaton SRW12USDP 12U wall-mount rack enclosure Photo 1

Eaton SRW12USDP 12U wall-mount rack enclosure Photo 2

Eaton SRW12USDP 12U wall-mount rack enclosure Photo 3

Eaton SRW12USDP 12U wall-mount rack enclosure Photo 4

Eaton SRW12USDP 12U wall-mount rack enclosure Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

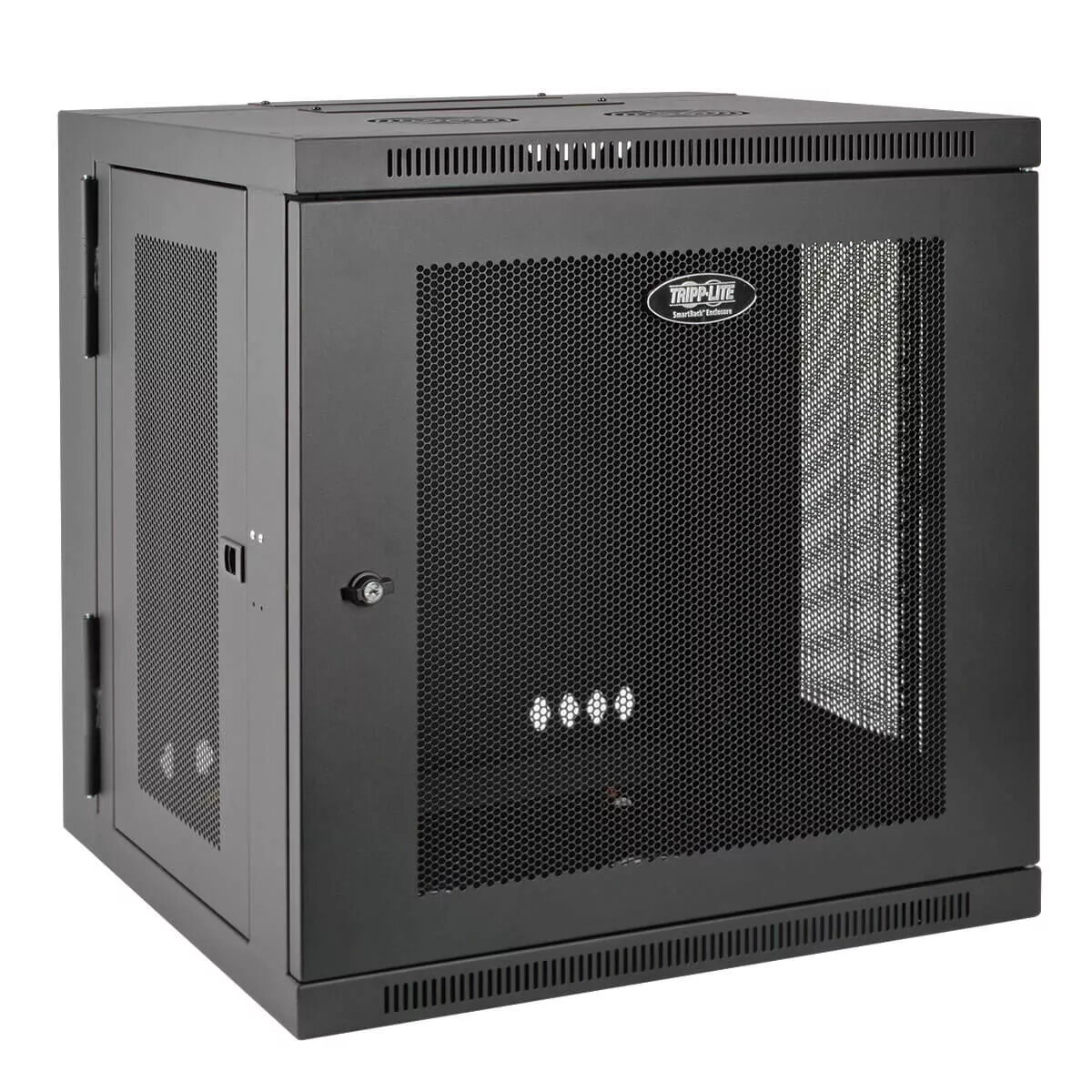

Eaton SRW12USDP is a 12U wall-mount rack enclosure designed for UPS-depth equipment. Dimensions: W 600.2 mm × D 647.7 mm × H 636.5 mm. IP20 protection, hinged rear panel for service access and black finish. Suitable for mounting network, server or UPS hardware in offices, telecom or edge locations where compact, secure equipment housing is required.

Available for order: 4 pcs.

Warranty: 2 Years

SKU: 10467412

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

12.08.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

12.08.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

17.08.2026 {{selectedOffer.courierDeliveryString}}

From 53.99 € (Weight: 43.00 kg)

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 351.33 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment, Leasing for legal entities

36 months installment: from 29.28 euros per month

Leasing for legal entities: from 36.68 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Eaton SRW12USDP SmartRack 12U UPS-depth wall-mount rack enclosure is built to house EIA-standard 19-inch equipment in locations with limited floor space. Constructed from heavy-duty steel with a black powder-coated finish, the cabinet supports up to 200 lb (90.7 kg) and provides IP20 protection. Its dimensions are approximately W 600.2 × D 647.7 × H 636.5 mm, and it is suitable for network switches, UPS systems and other rack-mount devices that fit 12U height and UPS-depth requirements.

Advantages

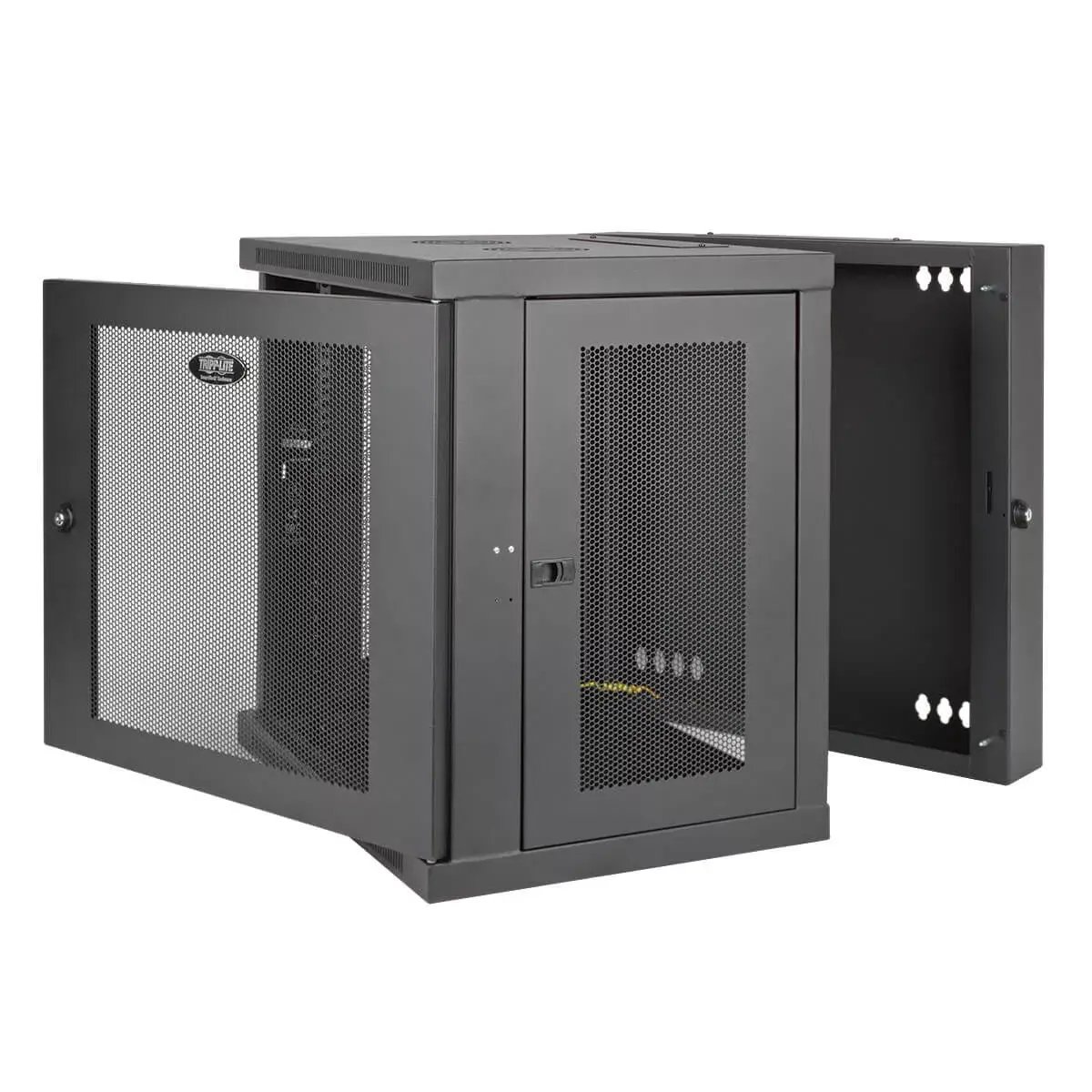

The enclosure swings away from the wall on a sturdy hinge for easy rear access during installation and maintenance. Vented front, top, bottom and removable side panels enable free airflow to help keep equipment cool. Doors and side panels lock to help prevent tampering or theft, and the reversible door design allows left- or right-hand opening by rotating the cabinet 180° before mounting. Numbered rack spaces, square and 12-24 threaded mounting holes, and adjustable vertical rails (in 7/8-inch increments) simplify equipment installation and support devices up to 24.5 inches deep. The cabinet ships fully assembled and can be wall-mounted or fitted with an optional caster kit (SRCASTER) for mobility.

Suitable for

Network wiring closets and telecom edge locations
Retail outlets and classrooms with limited floor space
Small server or UPS installations requiring 12U, UPS-depth rack space
Back offices and IT closets where secure, ventilated housing is needed

Key specifications

Model: Eaton SRW12USDP
Rack capacity: 12U
External dimensions (W×D×H): 600.2 × 647.7 × 636.5 mm
Maximum load capacity: 200 lb (90.7 kg)
Depth support: up to 24.5 in (adjustable vertical rails)
IP rating: IP20
Weight: 28.8 kg
Colour: Black (powder-coated steel)

How to use

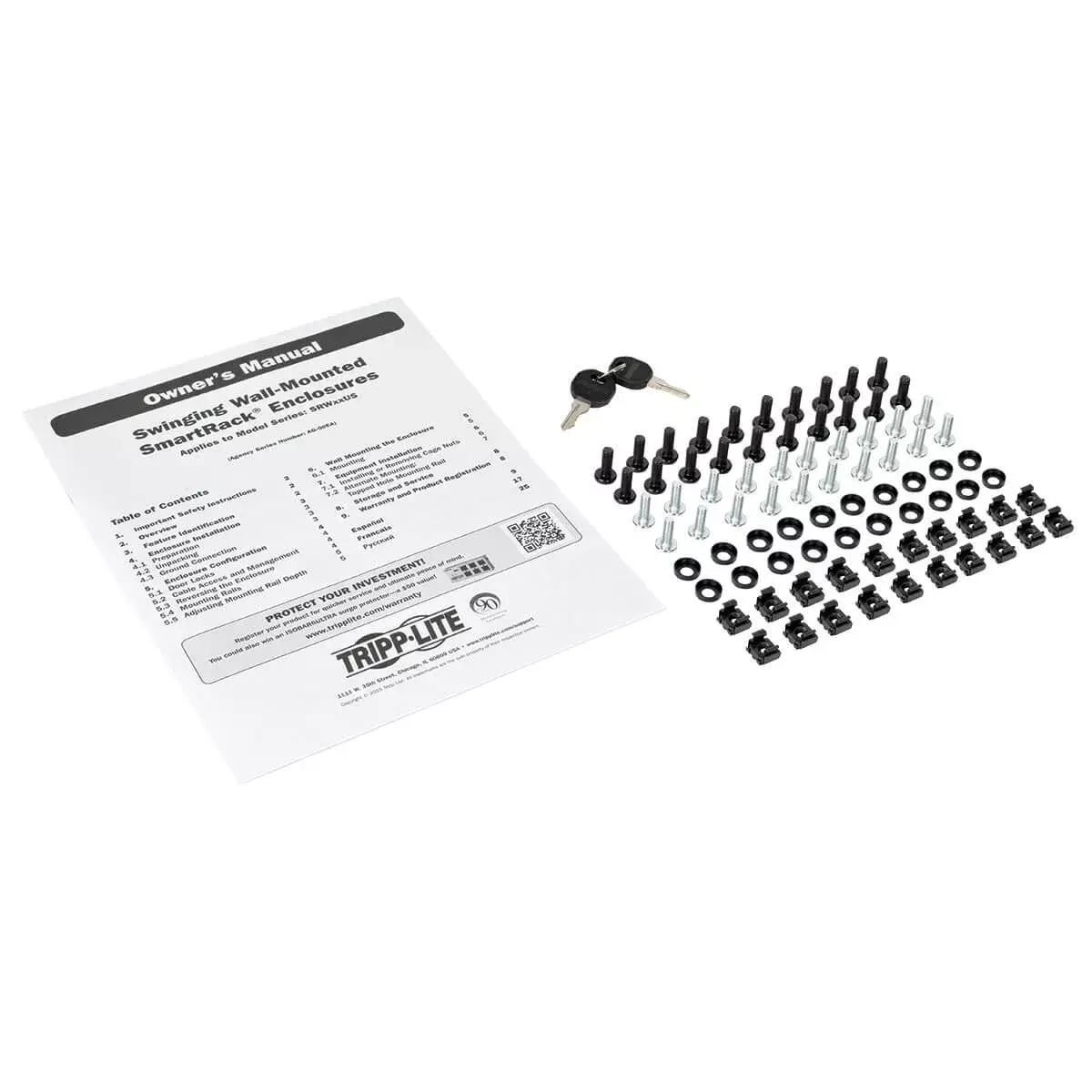

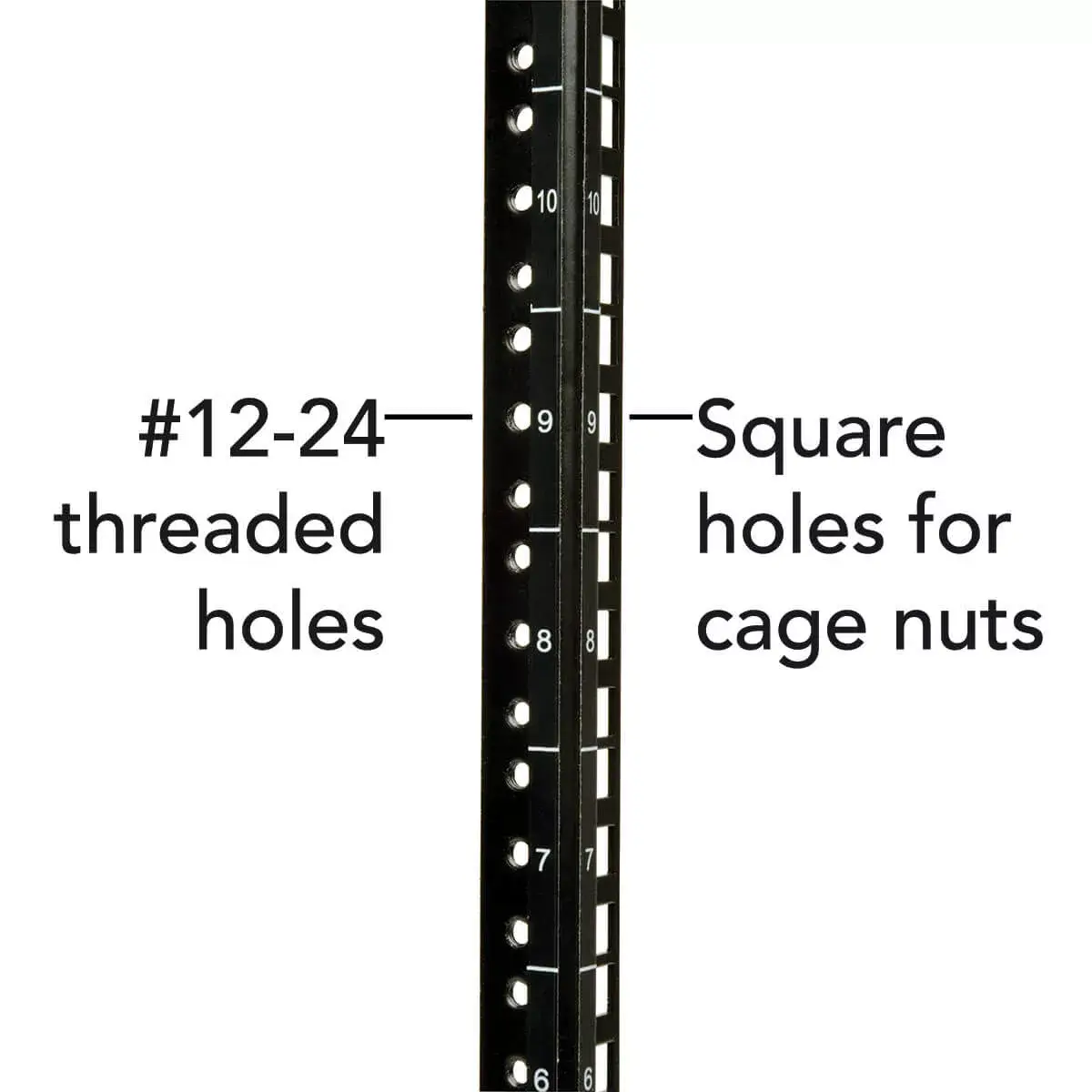

Mount the fully assembled cabinet to a suitable wall structure using appropriate fasteners for the wall type and the cabinet weight. Rotate the cabinet 180° before mounting if you require the door to open to the opposite side. Route cables through the top or bottom ports and secure equipment to the numbered vertical rails using the provided square or 12-24 threaded holes; adjust the rails in 7/8-inch increments to accommodate device depth up to 24.5 inches. Lock the front door and side panels after installation to protect equipment, and allow clearance for ventilation around the vented panels.

Usage recommendations

For reliable installation, ensure the mounting wall can support the cabinet and the combined weight of installed equipment. Maintain clearance for airflow, and consider using the optional SRCASTER caster kit if mobile use is required. Regularly check locks and vents and follow manufacturer guidelines for UPS and battery installations.

Specifications

Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 90 kg
Rack capacity: The spase that device fill in rack.: 12U

All features

Mounting type: Type of mounting e.g. wall mounting.: Wall
Locking:: Yes

Other features

Package dimensions (WxDxH):: 715 x 760 x 745

Logistics data

Products per master (outer) case:: 1 pc(s)
Master (outer) case gross weight:: 41730 g
Master (outer) case height:: 762 mm
Master (outer) case length:: 787.4 mm
Master (outer) case width:: 762 mm
Country of origin: Country where the device is made. Aka Country of manufacture (COM).: China

Technical details

Sustainability certificates:: RoHS

Packaging data

Package weight: Weight of the packaged product.: 41730 g
Package height: The distance from the top to the bottom of the packaging.: 762 mm
Package depth: The distance from the front to the back of the packaging.: 787.4 mm
Package width: The distance from one side of the packaging to the other.: 762 mm
Manual:: Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 28.8 kg
Height: The measurement of the product from head to foot or from base to top.: 636.5 mm
Depth: The distance from the front to the back of something.: 647.7 mm
Width: The measurement or extent of something from side to side.: 600.2 mm

Features

Cable entry location:: Rear
Reversible doors: The doors on the device can be moved so they can open from the right hand side (hinged on the left) or the left hand side (hinged on the right).: Yes
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP20
Side panels included: Indicates if the side panels are included or not: Yes
Removable side panels:: Yes
Material: The material from which a thing is or can be made e.g. wood, plastic.: Steel
Product colour: The colour e.g. red, blue, green, black, white.: Black
Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 90 kg
Rack capacity: The spase that device fill in rack.: 12U
