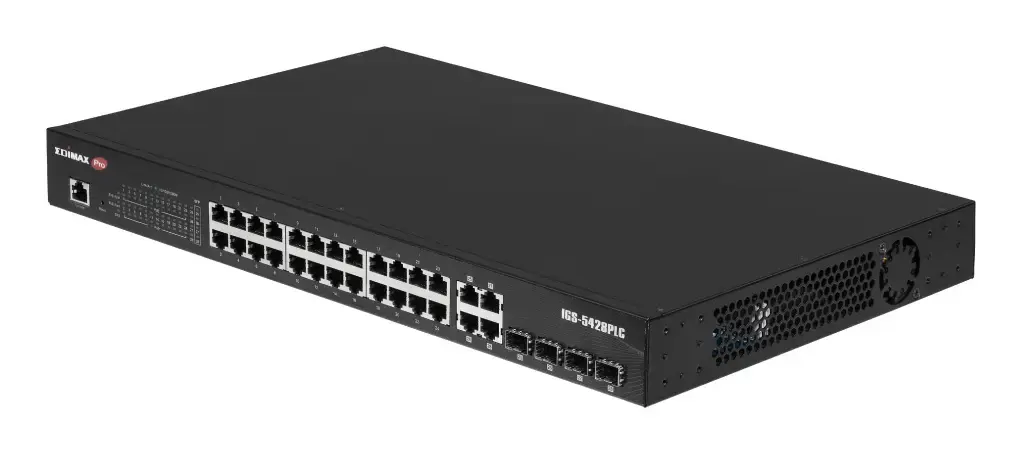

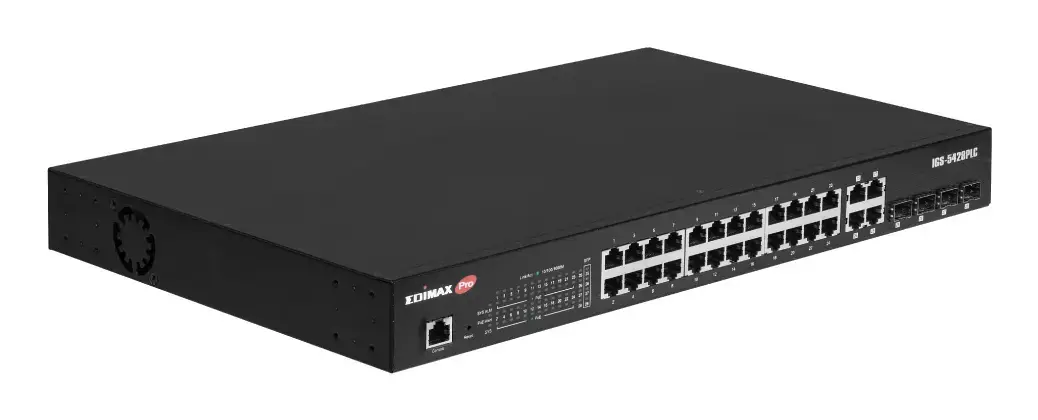

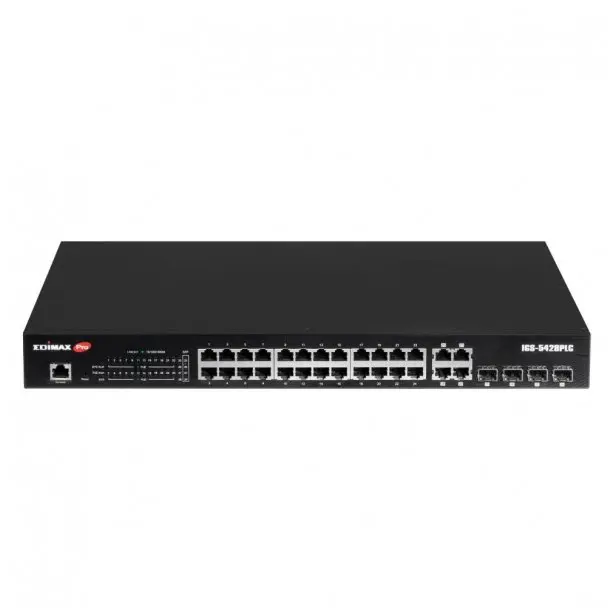

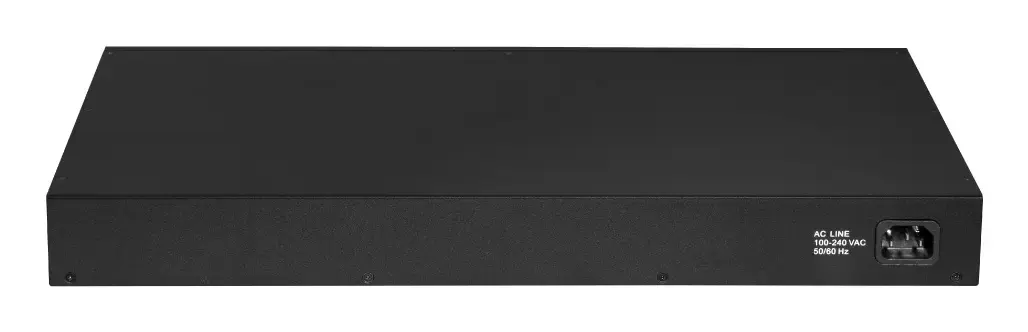

Edimax IGS-5428PLC Managed L2 Gigabit Ethernet Network Switch with Power over Ethernet and 24 RJ-45 Ports

Management protocols:

SNMP v1/v2c/v3

Power source: What is providing power for the product e.g. mains electricity.

AC/PoE

Switching capacity: The data transfer capacity of the switch per second.

56 Gbit/s

Flow control support:

Yes

Switch layer: A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).

L2

Port mirroring:

Yes

Link aggregation:

Yes

Broadcast storm control:

Yes

Static port security:

Yes

Access Control List (ACL):

Yes

Rate limiting:

Yes

Switch type: What switch device has, managed or unmanaged.

Managed

IGMP snooping:

Yes

Number of VLANs:

4096

Spanning tree protocol:

Yes

VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.

Yes

10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.

No

Console port:

RJ-45

Power over Ethernet plus (PoE+) ports quantity:

24

Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).

24

SFP module slots quantity:

4

Virtual LAN features:

Port-based VLAN, Voice VLAN, MAC address-based VLAN

DHCP features:

DHCP snooping

Technical details

Quality of Service (QoS) support:

Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

4.45 kg

Height: The measurement of the product from head to foot or from base to top.

44 mm

Depth: The distance from the front to the back of something.

270 mm

Width: The measurement or extent of something from side to side.

441 mm

Operational conditions

Storage relative humidity (H-H):

10 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70

Operating relative humidity (H-H):

10 - 90

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

-20 - 65

Certificates

Certification:

FCC, CE

Power

AC input frequency:

50/60

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100 - 240

Power over Ethernet (PoE) power per port:

30 W

Features

Form factor: The shape or design of the product.

1U

Number of fans: The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).

2 fan(s)

Jumbo frames support:

Yes

Jumbo frames:

9000

Rack mounting: The type of mounting that can position devices in a shelving system (rack).

Yes

Housing material: What the casing of the product is made of.

Metal

Product colour: The colour e.g. red, blue, green, black, white.

Black

Network

MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.

8000 entries

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1x, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3u

Web-based management: Using a website/web application to manage something.

Yes

Firmware upgradeable:

Yes

Forwarding rate:

41.6 Mpps

Packet buffer memory:

4.1 MB

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Yes
