Patch Panel EFB Elektronik 37738.8

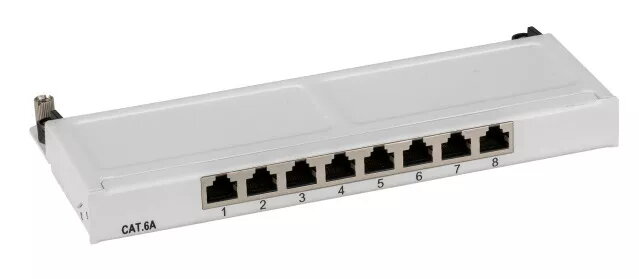

The EFB Elektronik 37738.8 patch panel is a compact, shielded Cat.6A mini patch panel designed for organized network installations. It provides eight RJ-45 ports with support for 10 Gigabit Ethernet, Gigabit Ethernet and Fast Ethernet, and a maximum data transfer rate of 10000 Mbit/s. Constructed from durable steel and finished in grey, the panel occupies 0.5U rack height and measures 254.6 mm × 22 mm × 108 mm, making it suitable for high-density setups where space efficiency and electromagnetic shielding are required.

Advantages

The mini patch panel combines Cat.6A shielding with a high port density of eight ports in a 0.5U footprint, providing reliable signal integrity for high-speed Ethernet links. Its steel construction ensures mechanical robustness and long-term durability while the shielded RJ-45 connectors reduce crosstalk and electromagnetic interference. Multiple mounting options increase flexibility for deployment in racks, 10" panels, wall mounts or DIN rail installations when used with an appropriate clamp set.

Suitable for

• Small and medium-sized server racks and network cabinets
• Compact telecommunication panels and 10" installations
• Wall-mounted network points in offices or technical rooms
• DIN rail installations when combined with a compatible clamp set

Key specifications

• Standard compatibility: Cat.6A shielded
• Port type: 8 × RJ-45 shielded ports
• Maximum data rate: 10000 Mbit/s (10 Gigabit Ethernet)
• Supported speeds: 10 Gbit/s, 1 Gbit/s, 100 Mbit/s
• Material: steel housing
• Colour: grey
• Form factor: 0.5U mini patch panel
• Dimensions (W×H×D): 254.6 mm × 22 mm × 108 mm
• Port density: high-density 8 ports in 0.5U

How to use

Install the patch panel into a compatible 10" frame or 0.5U rack space, or fix it to a wall or DIN rail using the recommended clamp set. Terminate network cabling onto the rear of the shielded RJ-45 connectors following Cat.6A cabling standards and use appropriate tools to ensure secure connections and correct shielding continuity. Label each port for clear identification and route patch cords to switches or other active equipment to complete the network patching.

Usage recommendations

For optimal performance with 10 Gigabit links, use Cat.6A shielded twisted-pair cable and ensure proper grounding of the panel and connected components. Avoid sharp bends in cabling, maintain recommended separation from power sources to reduce interference, and test each link after installation to verify signal quality and throughput.
