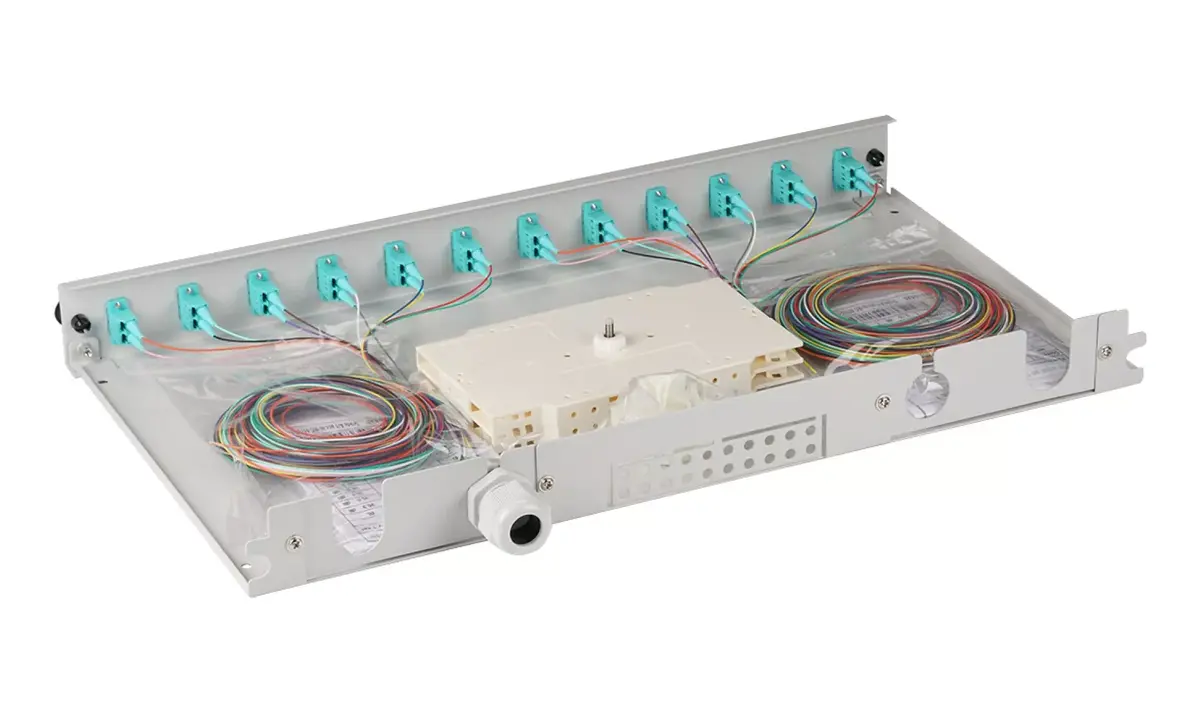

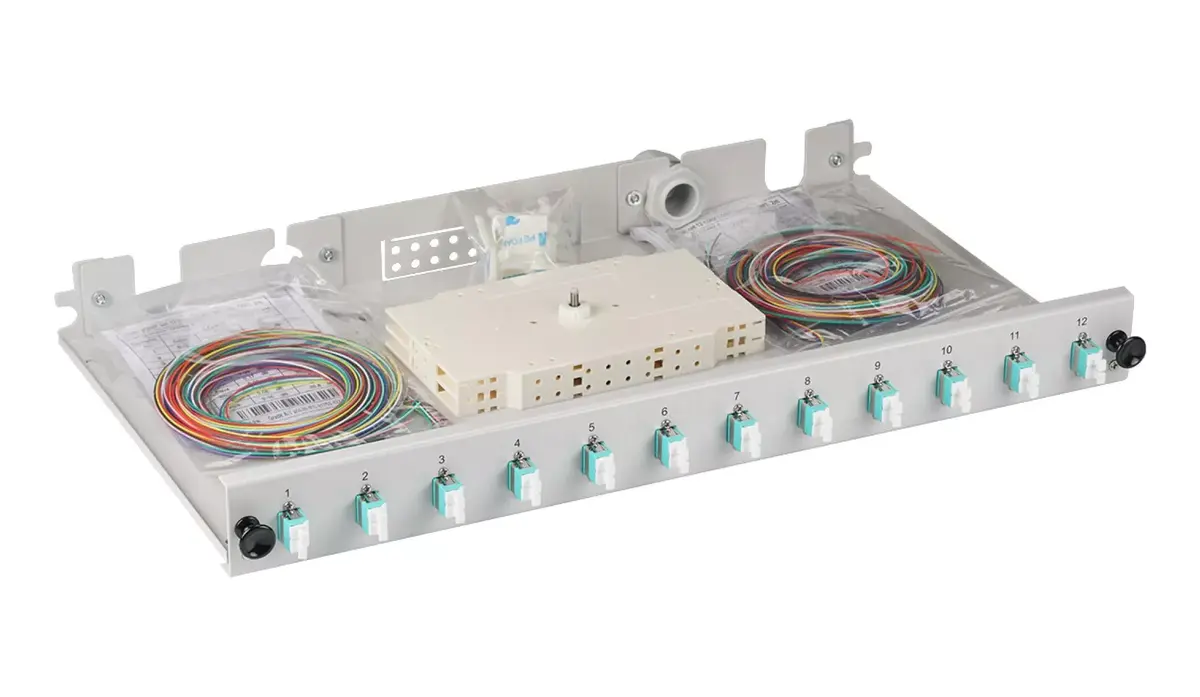

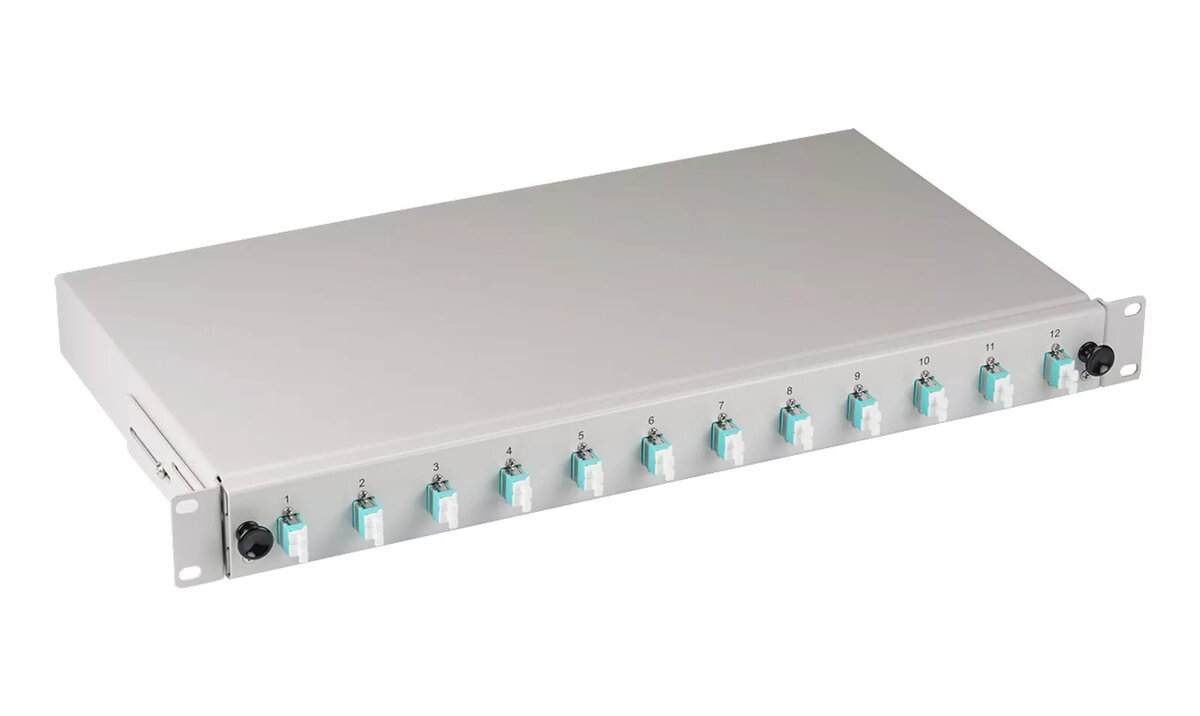

Patch panel EFB Elektronik B71901L24OM3 1U LC OM3 Grey

The EFB Elektronik B71901L24OM3 1U LC OM3 Grey patch panel is a compact rack-mountable unit designed to organize and terminate LC multimode OM3 fiber connections in server rooms and network cabinets. Constructed from durable plastic and sized to fit a standard 1U rack space, the panel provides 12 LC ports in a space-efficient layout, helping to maintain clear cable routing and reliable optical connections for high-speed multimode links.

Advantages

This 1U patch panel offers a compact footprint and a standardized 19-inch rack width, allowing easy integration into existing cabinet systems. The use of LC duplex ports supports high-density installations while OM3 compatibility ensures performance suitable for 10 Gigabit Ethernet over multimode fiber. The grey plastic housing reduces weight while providing stable mechanical protection for fiber terminations and connectors.

Suitable for

• Data center fiber distribution and cable management
• Server room rack installations requiring multimode OM3 connections
• Telecommunications closets and enterprise network edge patching
• High-density fiber consolidation panels and fiber-to-the-desk deployments

Key specifications

• Form factor: 1U rack-mountable, 19-inch compatible
• Connector type: LC ports (duplex configuration)
• Number of ports: 12
• Fiber type compatibility: OM3 multimode fiber
• Material: durable plastic housing
• Colour: grey
• Dimensions (W×H×D): 483 mm × 44.5 mm × 244 mm

How to use

Mount the patch panel into a standard 19-inch rack occupying a single 1U space. Route multimode fiber cables to the rear of the panel and terminate them to LC connectors or use pre-terminated LC pigtails as required. Secure cabling to strain-relief points or cable management accessories to maintain bend radii and prevent connector stress. At the front, plug in LC duplex patch cords to connect equipment or feed-through links, verifying optical continuity and signal levels after installation.

Usage recommendations

Handle LC connectors and OM3 multimode fiber with care to avoid contamination; always inspect and clean connector endfaces before mating. Maintain proper bend radius for multimode fiber runs and use cable management to reduce mechanical stress. For optimal performance in 10 Gigabit Ethernet environments, pair this panel with OM3-rated patch cords and follow structured cabling best practices.
