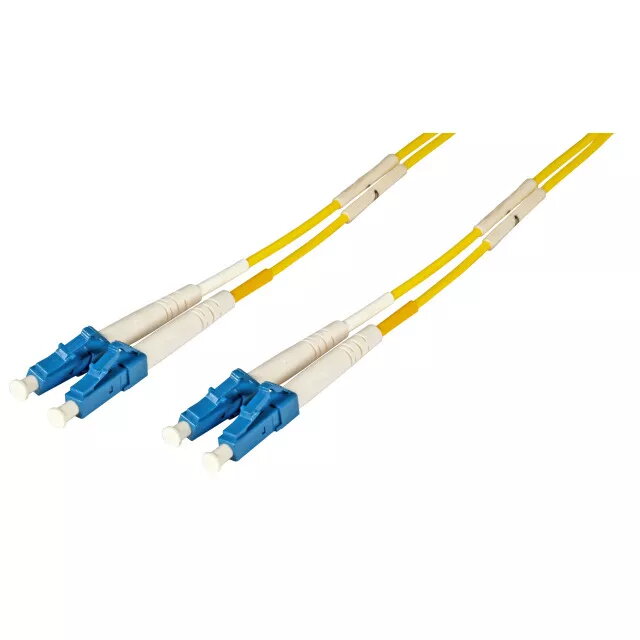

Fibre optic cable EFB Elektronik O0350.5 5 m LC Yellow

The EFB Elektronik O0350.5 is a 5 m OS2 fibre optic cable with LC connectors on both ends and a 9 µm core diameter. Designed for structured cabling, this LC–LC patchcord provides a short, direct connection between passive interfaces and active device ports and is suitable for high-speed data transmission with low attenuation. The cable’s yellow jacket aids identification in installations and wiring runs.

Advantages

The cable features aramid yarn reinforcement for improved tensile strength and long-term dimensional stability. Its LSZH (halogen-free, flame-retardant) sheath meets IEC-60754-2, IEC-60332-1 and IEC-61034 requirements. Connectors are manufactured and tested to meet quality grades B/2 for singlemode and A/1 for multimode per IEC-61753 series. Each patchcord is 100% inspected and supplied with an individual test report.

Suitable for

• Data centre fibre links and intra-rack connections
• Telecommunications backbone and distribution frames
• High-speed network equipment interconnects (LC to LC)
• Structured cabling installations requiring OS2 singlemode patchcords

Key specifications

• Brand: EFB Elektronik
• Model / MPN: O0350.5
• Length: 5 m
• Fiber type: OS2 (singlemode)
• Connector type: LC — LC
• Core diameter: 9 µm
• Jacket colour: Yellow
• Sheath: LSZH (halogen-free, flame retardant) to IEC standards
• Reinforcement: Aramid yarn
• Quality/test: 100% checked with individual test protocol; connector grades B/2 (SM) and A/1 (MM) per IEC-61753
• EAN: 4049759024840

How to use

Route the LC–LC patchcord between the device port and the passive interface, avoiding tight bends and excessive tension. Ensure connectors are clean before mating to prevent contamination-related attenuation. Plug the LC connectors into corresponding LC ports until they click and verify link status on connected equipment. For best performance, keep bending radius above the manufacturer’s minimum and avoid sharp kinks.

Usage recommendations

Store and handle the cable in a dry environment, protect connector endfaces with dust caps when not in use, and follow site-specific fibre handling and safety procedures to maintain the optical performance and longevity of the patchcord.
