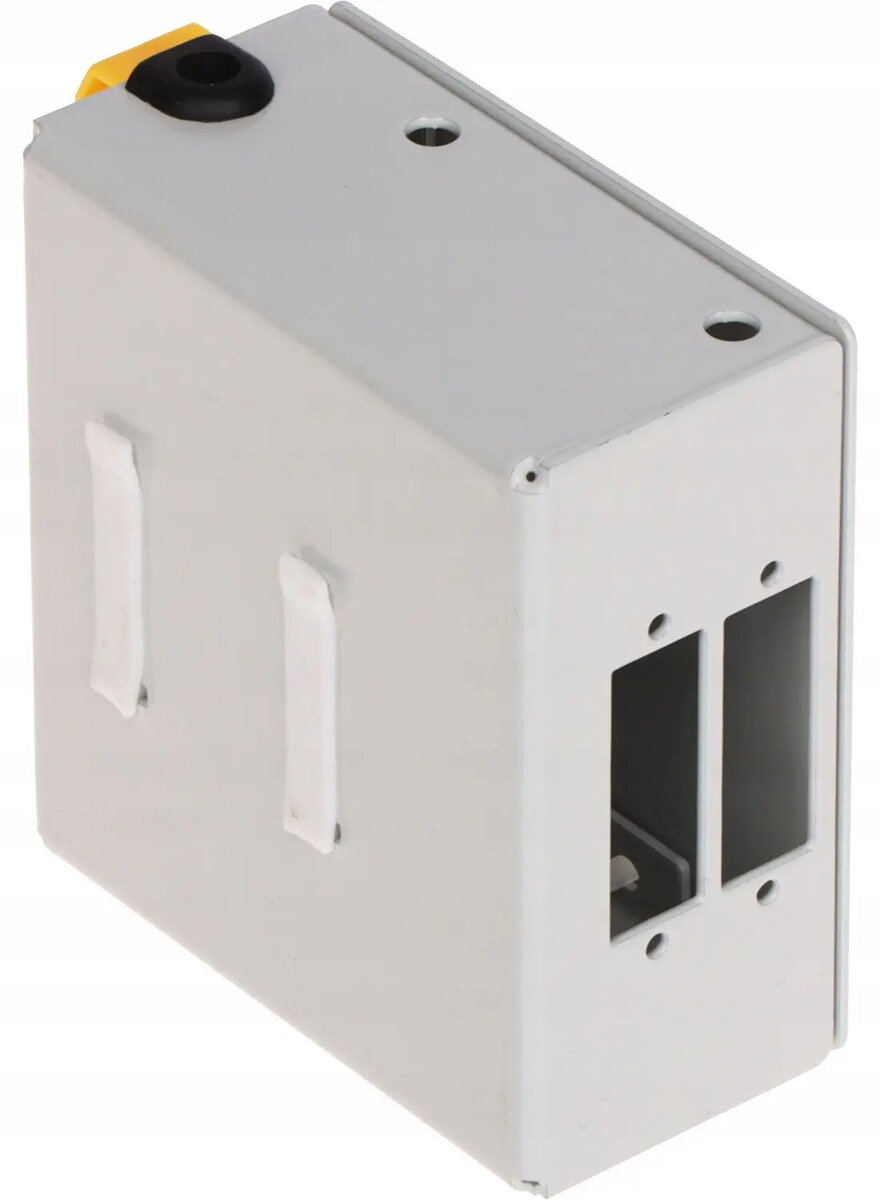

Fiber optic patch panel EFB Elektronik PPO-2X2SC/DIN with 2x SC duplex ports, DIN-rail mount

EFB Elektronik PPO-2X2SC/DIN is a compact fiber optic patch panel engineered for DIN-rail installation in industrial and telecom cabinets. The unit provides two SC duplex ports (2x SC) to terminate and route single-mode or multimode fiber connections in a small footprint. Its design supports organized cable management and straightforward access to fiber links for maintenance and patching tasks within control cabinets, distribution enclosures and network racks.

Advantages

The patch panel combines a DIN-rail compatible housing with two SC duplex adapters to save space while keeping fiber terminations accessible. It reduces cable clutter and protects connector endfaces from dust and mechanical damage by providing a secure enclosure. The panel’s compact dimensions make it suitable for installations where rack or cabinet space is limited, and its standardized SC interfaces ensure broad compatibility with common fiber patch cords and equipment.

Suitable for

• Industrial control cabinets and automation panels
• Telecom distribution enclosures and network racks
• Small patching points and fiber link termination
• Edge sites and field installations with DIN-rail infrastructure

Key specifications

• Connector type: 2x SC duplex ports
• Mounting: DIN-rail mount compatible with standard industrial rails
• Housing: compact, enclosure for connector protection and cable routing
• Port count: two duplex connections (four fiber channels)
• Usage: designed for fiber termination and patching in cabinets and racks

How to use

Install the panel by snapping or securing it onto a standard DIN rail inside the cabinet or enclosure at an appropriate location for cable entry and access. Route fiber cables into the housing, ensure proper strain relief, and terminate fibers to the SC duplex adapters using factory-terminated pigtails or by splicing as required. Connect patch cords to the SC ports for routing signals to active equipment. Keep connector dust caps in place until connection to reduce contamination.

Usage recommendations

Place the patch panel near cable entry points to minimize bend radius and use organized routing channels or cable ties to prevent stress on fiber cables. Clean connector endfaces before mating, and use appropriate strain relief and bend protection to maintain link performance.
