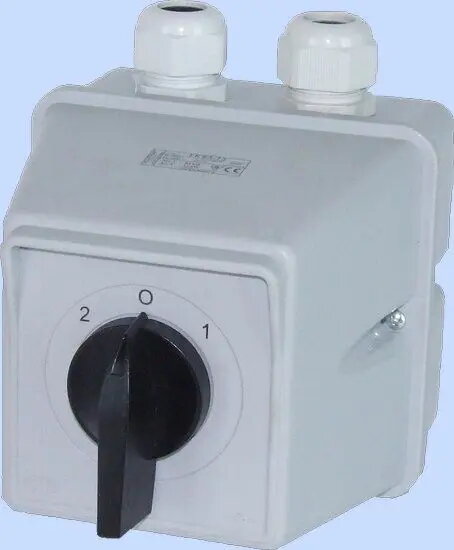

The Elektromet ŁK 100-73 is a high-performance 3-pole cam switch engineered for secure and efficient electrical circuit control. This device features a standard 2-0-1 switching sequence, allowing for precise manual operation of power supply lines. Housed in a durable enclosure with an IP44 ingress protection rating, the switch is designed to withstand challenging conditions, offering reliable resistance against dust ingress and water splashes. It serves as a dependable solution for industrial and commercial power management, ensuring equipment can be safely isolated or switched as required.
Advantages
The primary benefit of this cam switch is its robust construction, which ensures long-term reliability even in demanding operational environments. The 100A current rating makes it suitable for heavy-duty applications where high power loads are present. The inclusion of an IP44-rated enclosure eliminates the need for additional protective housing in many scenarios, simplifying the installation process. Its intuitive 2-0-1 switching mechanism provides clear and simple control, reducing the risk of operational errors during manual power management.
Suitable for
- Industrial machinery power control
- Commercial electrical distribution systems
- Manual isolation of equipment for maintenance
- Power switching in workshops and production facilities
When it may not be suitable
This device is not intended for use in environments requiring higher levels of ingress protection, such as areas subject to direct water jets or complete submersion, where an IP65 or higher rating would be necessary. It is also not suitable for applications requiring automated or remote switching, as it is strictly designed for manual operation.
Key specifications
- Switch type: 3-pole cam switch
- Switching sequence: 2-0-1
- Rated current: 100A
- Ingress protection: IP44
- Mounting: Enclosed
How to use
The switch should be installed by a qualified electrician in accordance with local electrical regulations. Ensure the power supply is disconnected before beginning the installation process. The unit should be mounted on a flat, stable surface using the provided mounting points. Once secured, connect the electrical conductors to the appropriate terminals inside the enclosure, ensuring all connections are tightened to the specified torque. After installation, verify the operation of the switch by moving the handle through the 2-0-1 positions to ensure smooth mechanical engagement.
What to consider before purchase
- Verify that the 100A current rating is compatible with your specific electrical load requirements.
- Ensure the IP44 rating is sufficient for the intended installation environment.
- Confirm that the 2-0-1 switching sequence meets your operational needs.
- Check the physical dimensions to ensure the enclosure fits the designated mounting space.
Usage recommendations
Regularly inspect the enclosure for any signs of physical damage or degradation of the seal to maintain the IP44 protection rating. Periodically check that all terminal connections remain tight, as vibrations in industrial settings can loosen electrical contacts over time.
