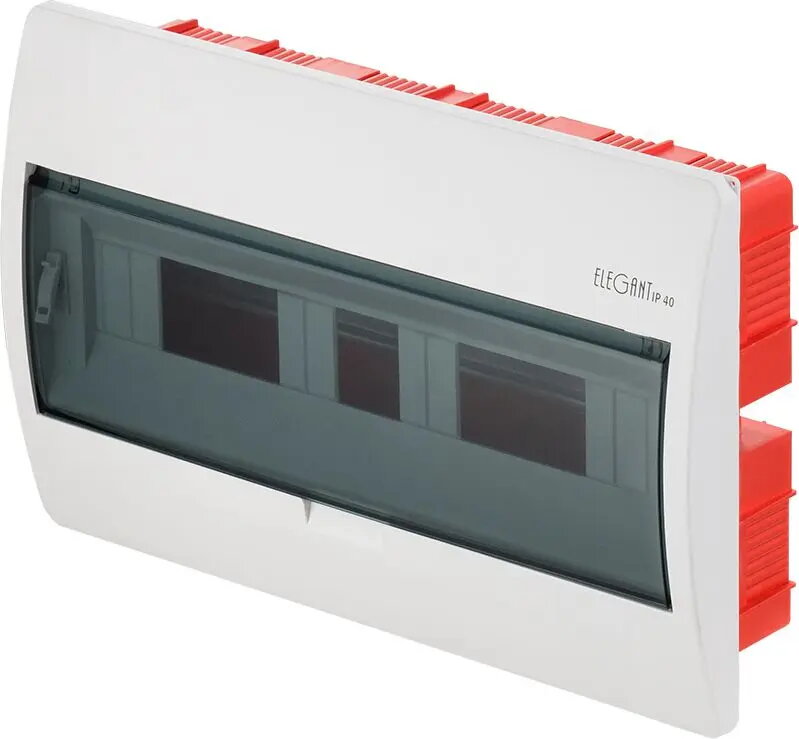

Flush-mounted modular distribution board ELEKTROPLAST 1x18 modules IP40 410×260×105 mm

Flush-mounted modular distribution board ELEKTROPLAST 1x18 modules IP40 410×260×105 mm is designed to house DIN-rail mounted protective and switching devices in a compact, recessed enclosure. The board accommodates a single row of up to 18 modules, providing a tidy installation point for circuit breakers, residual-current devices and terminal blocks. With IP40 protection and dimensions of 410×260×105 mm, it is suitable for mounting in walls of residential or light commercial premises where a concealed, space-saving distribution point is required.

Advantages

The flush-mounted design allows the distribution board to be recessed into walls for a low-profile finish while preserving easy access to DIN-rail components. Constructed for standard modular devices, the enclosure supports quick installation and orderly wiring, reducing clutter around the service point. IP40 protection ensures basic protection against solid objects and internal component access, and the stated internal depth accommodates typical wiring and device clearances for safe operation.

Suitable for

• Residential electrical panels and apartment installations
• Small commercial premises where a concealed distribution board is desired
• Mounting circuit breakers, RCDs and terminal blocks on a single DIN rail
• Retrofit projects and new installations requiring a compact recessed board

Key specifications

• Capacity: 1 row, up to 18 standard DIN modules
• Protection rating: IP40 (protection against solid objects greater than 1 mm)
• Overall dimensions: 410 × 260 × 105 mm (height × width × depth)
• Mounting type: flush/recessed into wall
• Suitable for DIN-rail mounted modular devices such as circuit breakers and RCDs

How to use

Install the distribution board into a prepared wall recess at a location complying with local electrical codes and accessibility requirements. Fix the enclosure securely, ensure correct orientation and mount the DIN rail and modular devices according to manufacturer instructions. Route incoming and outgoing cables through the designated knockouts or entry points, maintain proper clearances, and make all electrical connections with power isolated. After wiring, verify that devices are correctly seated on the DIN rail, secure the cover, and perform required testing in line with applicable regulations.

Usage recommendations

Install and service the distribution board only by qualified personnel. Verify compatibility of installed devices with available space and electrical parameters. Provide additional protection (e.g., enclosure or location) where higher ingress protection or environmental resistance is required.
