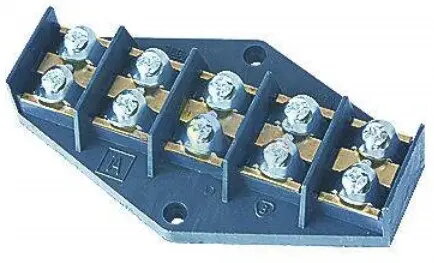

Ring Terminal Junction ELEKTROPLAST 0963-00 5×10 mm², black

ELEKTROPLAST ring terminal junction 0963-00 5×10 mm², black is a ring-type electrical connector engineered to split or combine conductors in electrical installations. Designed for a 5×10 mm² conductor configuration, this compact junction provides a mechanical and electrical connection point suitable for power distribution, cable branching and organized wiring inside control panels or equipment enclosures.

Advantages

The ring terminal junction offers a compact footprint and stable mechanical fixation for multiple conductors while maintaining reliable electrical continuity. Its black insulated body helps identify the connection and provides basic protection against accidental contact. The design supports neat cable routing and reduces the number of separate terminals required for branching or combining conductors, which simplifies assembly and maintenance.

Suitable for

• Splitting a single incoming supply into multiple outgoing conductors in distribution panels
• Combining several conductors to form a common connection point in equipment wiring
• Neat and compact branch points inside control cabinets and junction boxes

Key specifications

• Connector type: ring terminal junction for multi-conductor connection
• Conductor configuration: 5×10 mm²
• Color: black
• Application: power distribution and cable branching in panels and equipment

How to use

Prepare conductors by stripping insulation to the appropriate length for secure insertion. Insert each 10 mm² conductor into the designated terminal positions of the junction so that the conductor strands are fully engaged. Tighten any clamping screws or compression features according to manufacturer torque guidelines to ensure firm mechanical and electrical contact. Mount the junction in the desired location inside the panel or enclosure, ensuring that the ring terminal alignment and any mating fasteners are compatible with the installation. Verify continuity and secure insulation after installation.

Usage recommendations

Use the junction only with conductors and equipment rated for the intended circuit current. Ensure proper stripping length, correct conductor seating, and recommended tightening to avoid loose connections. Inspect periodically for corrosion or looseness in applications subject to vibration or thermal cycling.
