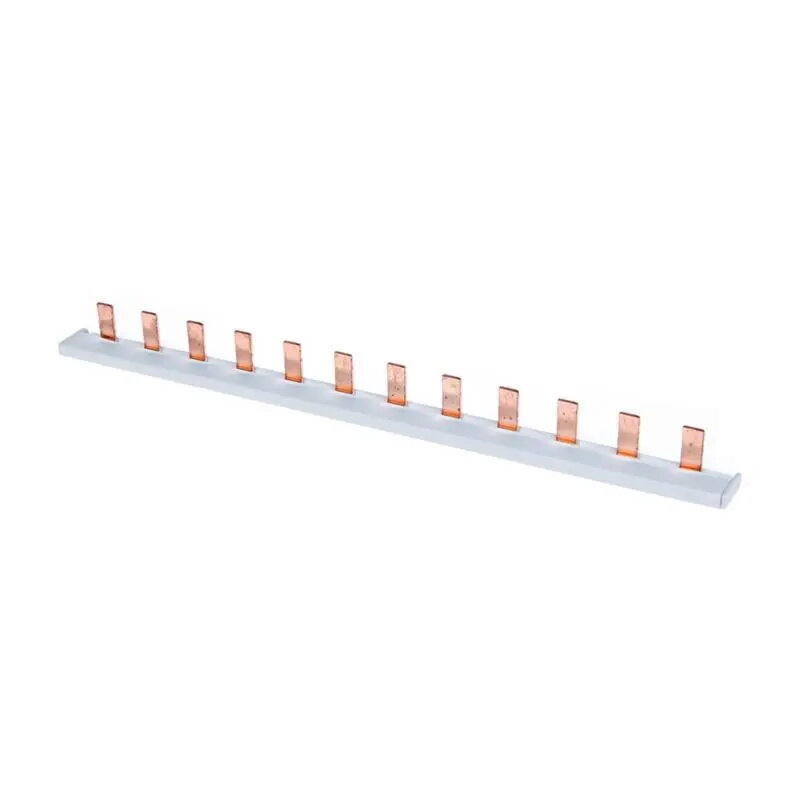

ELER BUSBAR 1P T-1P-225/100 A Single-Phase Busbar

The ELER BUSBAR 1P T-1P-225/100 A is a professional-grade single-phase electrical busbar engineered for efficient power distribution within electrical distribution boards. This component facilitates a clean and organized wiring layout, allowing for the reliable connection of circuit breakers and other modular DIN-rail devices. By providing a stable and continuous current path, it minimizes the need for complex jumper wiring, thereby enhancing the safety and structural integrity of electrical panels in both residential and industrial environments.

Advantages

This busbar offers significant benefits for electrical installations by streamlining the connection process and reducing the risk of loose contacts associated with traditional wiring methods. Its robust construction ensures high conductivity and long-term durability, even under demanding operational conditions. The design allows for quick and precise installation, which saves time during panel assembly and maintenance. Furthermore, the use of a dedicated busbar improves the overall thermal management of the electrical cabinet by reducing clutter and optimizing airflow around the modular components.

Suitable for

• Residential electrical distribution boards
• Industrial control panels
• Modular device connectivity
• Circuit breaker grouping

This product may not be suitable for three-phase electrical systems or applications requiring a higher current capacity than 100 A. It is also not intended for use in environments where the physical dimensions of the busbar do not align with the specific spacing of the installed modular equipment.

Key specifications

• Number of poles: 1P
• Rated current: 100 A
• Length: 225 mm
• Cross-section: 14 mm²
• Capacity: 12 modules

How to use

To install the ELER busbar, first ensure that the main power supply to the distribution board is completely disconnected. Measure the required length and align the busbar pins with the input terminals of the modular devices. Insert the pins securely into the terminals and tighten the screws to the manufacturer's recommended torque to ensure a firm connection. Verify that the busbar is properly seated and that there is no risk of accidental contact with other live parts before restoring power.

What to consider before purchase

• Verify the compatibility of the busbar pitch with your specific circuit breakers
• Ensure the 100 A rating is sufficient for your circuit load
• Confirm the physical length of 225 mm fits within your enclosure
• Check that the 14 mm² cross-section meets your project requirements

Always follow local electrical codes and safety regulations during installation. If you are not a qualified electrician, it is recommended to seek professional assistance to ensure the installation is safe and compliant.
