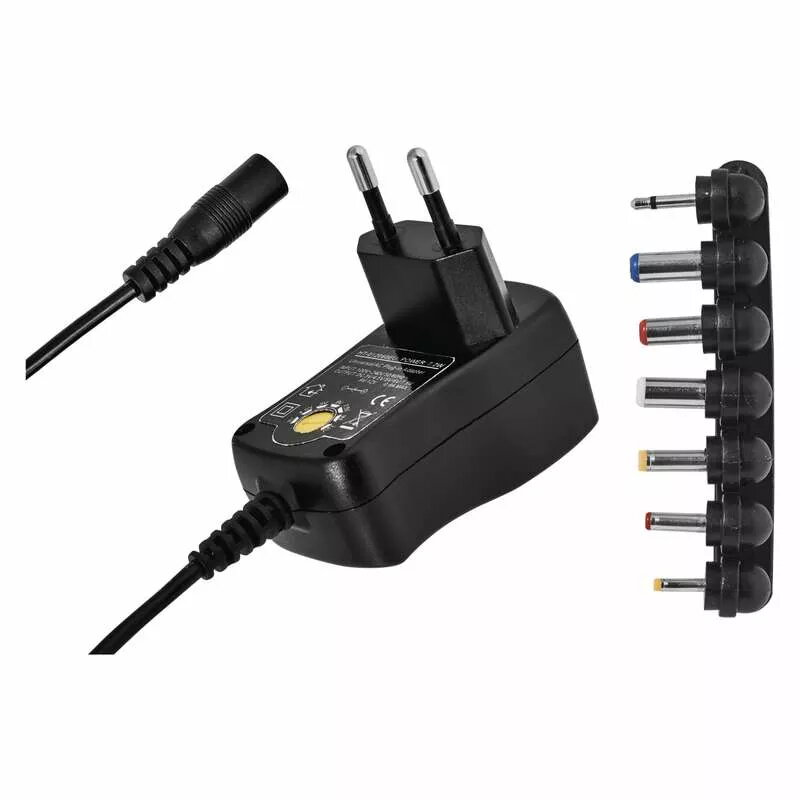

Power supply EMOS 1703060021, universal DC adapter 3–12 V, 600 mAh output

Universal power supply EMOS 1703060021 is a compact DC adapter with selectable output voltages from 3 V to 12 V and a maximum output current of 600 mA. The adapter is designed to power small portable devices and to serve as a replacement or temporary external source during repairs. It features overload, overvoltage and short-circuit protection, an LED status indicator and a 1.5 m cable; the housing is black and the unit weighs 78 g.

Advantages

The EMOS 1703060021 offers a range of selectable output voltages (3 V, 4.5 V, 5 V, 6 V, 7.5 V, 9 V, 12 V) to match different devices, a compact form factor (36 × 66 × 30 mm) and multiple interchangeable connector sizes listed for compatibility. Built-in protection against overload, overvoltage and short circuit increases safety during use. The included 1.5 m cable and LED indicator make connection and status monitoring straightforward.

Suitable for (tasks / use cases)

• Powering small portable electronics that accept 3–12 V DC and up to 600 mA
• Replacing a lost or faulty external DC adapter for compatible devices
• Providing temporary power during device repair or testing

Key specifications

• Model: EMOS 1703060021
• Input voltage: 100–240 V AC, 50/60 Hz
• Output voltages: 3 V, 4.5 V, 5 V, 6 V, 7.5 V, 9 V, 12 V
• Maximum output current: 600 mA
• Protection: overload, overvoltage, short circuit
• LED indicator: yes
• Cable length: 1.5 m
• Connectors (dimensions / quantity): B 3.5/15, C 3.0×1.0/10, D 5.0×2.1/12, G 5.5×2.5/10, H 3.5×1.35/10, I 4×1.7/10, S 2.35×0.75/8.7
• Dimensions: 36 × 66 × 30 mm
• Weight: 78 g
• Color: black
• Packaging: 1 pc, blister

How to use

Select the output voltage that matches your device (3–12 V) and connect the appropriate adapter tip to the device input. Plug the power supply into a 100–240 V AC outlet and verify the LED indicator for correct operation. Ensure the device’s required current does not exceed 600 mA. If the adapter or device becomes unusually hot or the LED indicates a fault, disconnect immediately and inspect connections or device compatibility.

Usage recommendations

Use only the connector that fits securely into the device socket and confirm polarity before connecting. Do not exceed the maximum output current of 600 mA and avoid using the adapter in damp or unventilated environments. For long-term powering, verify that the selected voltage precisely matches the device specification to prevent damage.
