Fiber Optic Pigtail Equip LC/PC OM3 1.0m

Name: Fiber Optic Pigtail Equip LC/PC 255632
Brand: EQUIP
SKU: 1040572
Price: 31.99 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

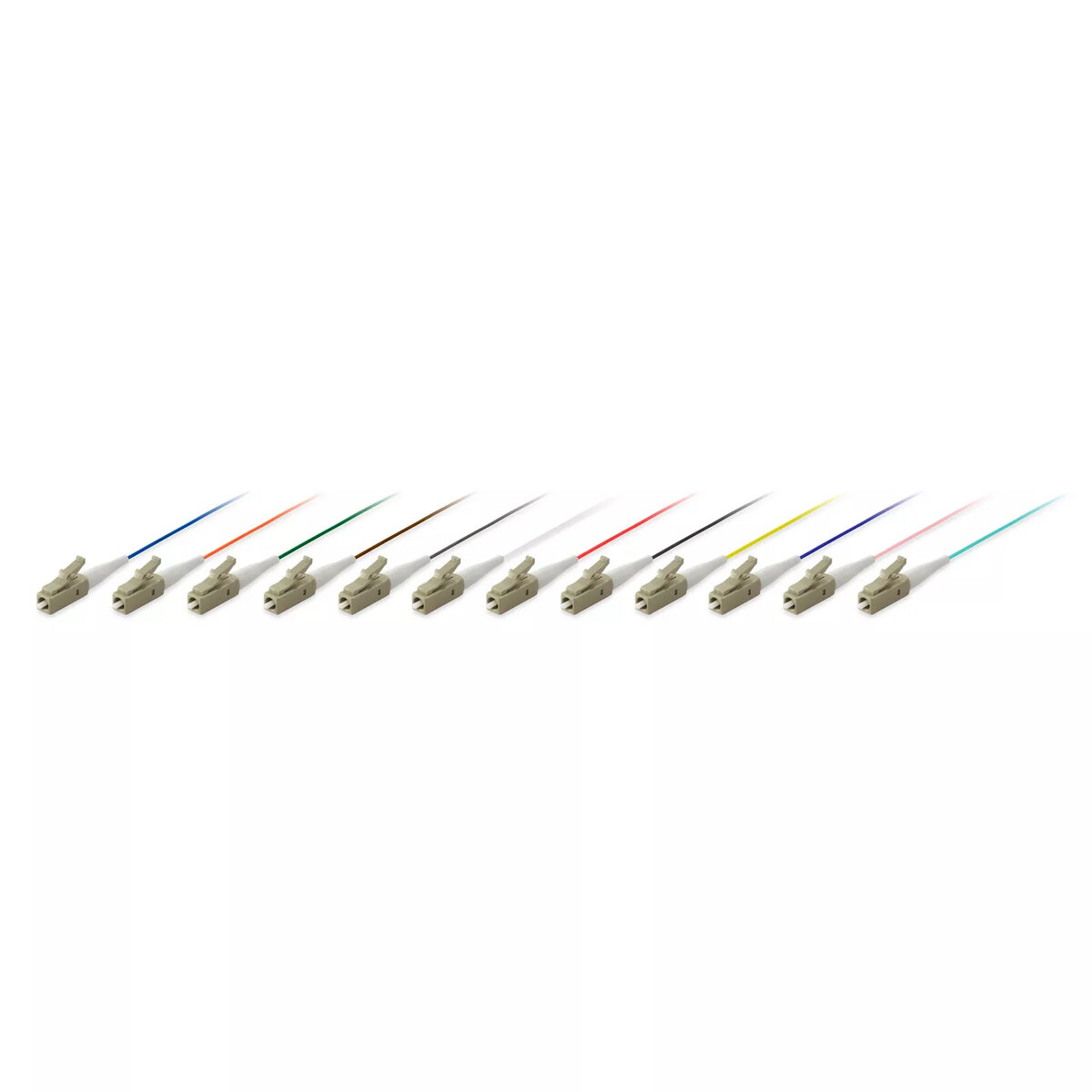

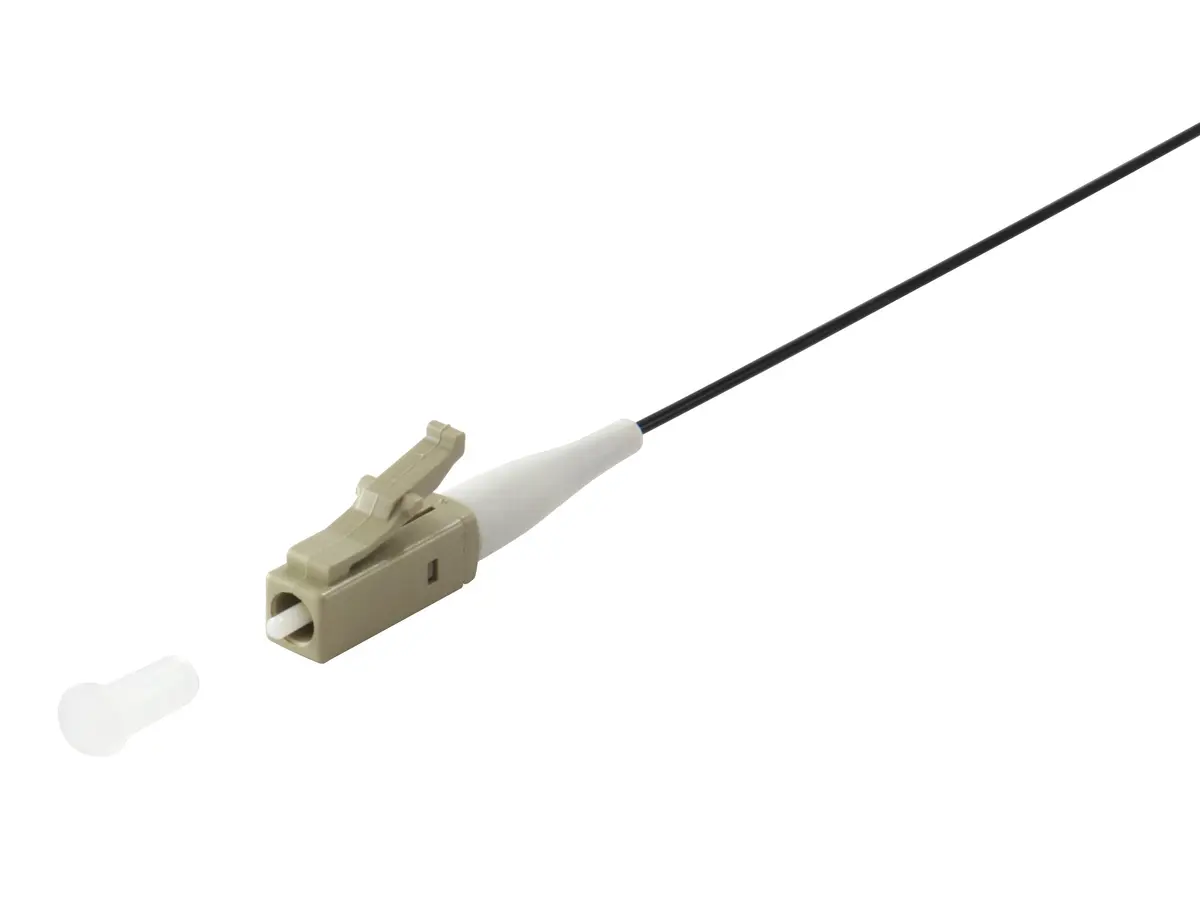

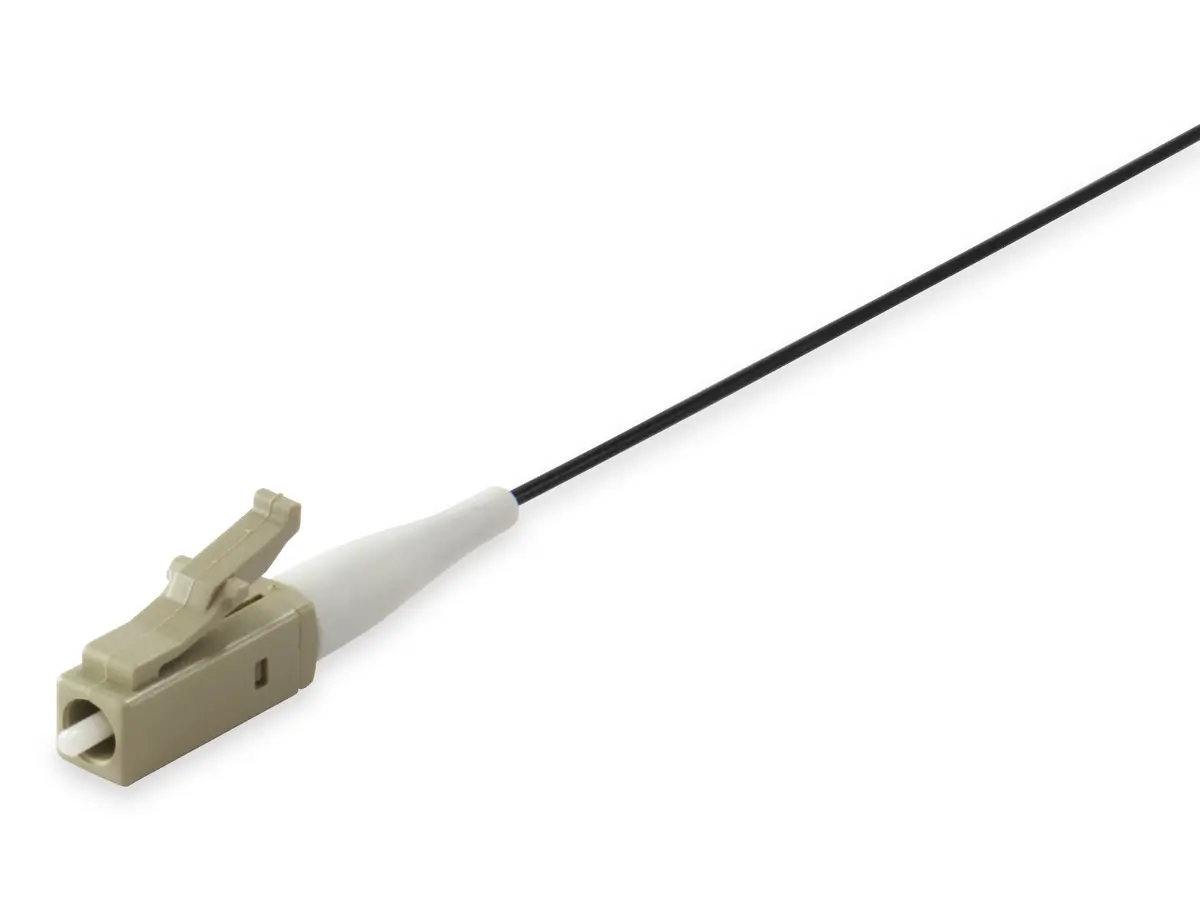

Fiber Optic Pigtail Equip LC/PC OM3 1.0m Photo 3

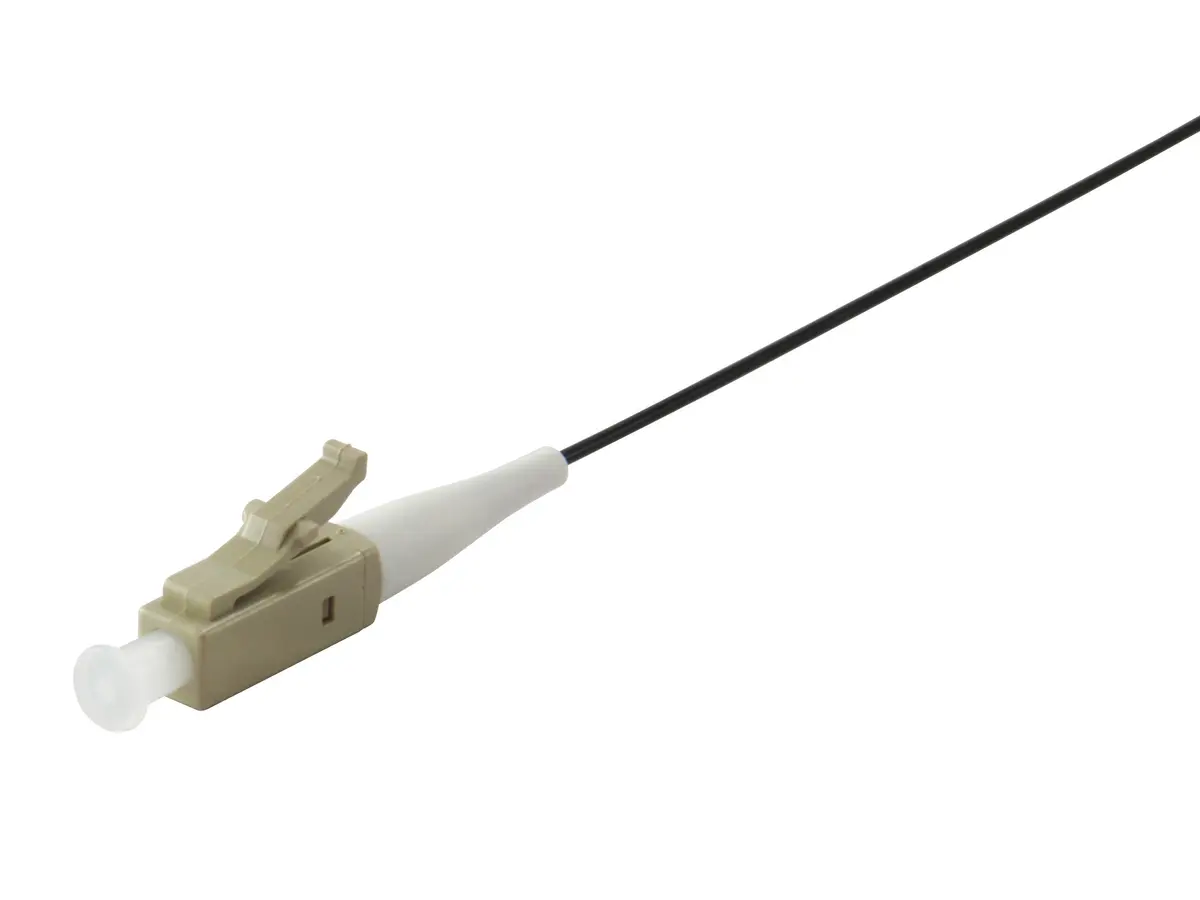

Fiber Optic Pigtail Equip LC/PC OM3 1.0m Photo 4

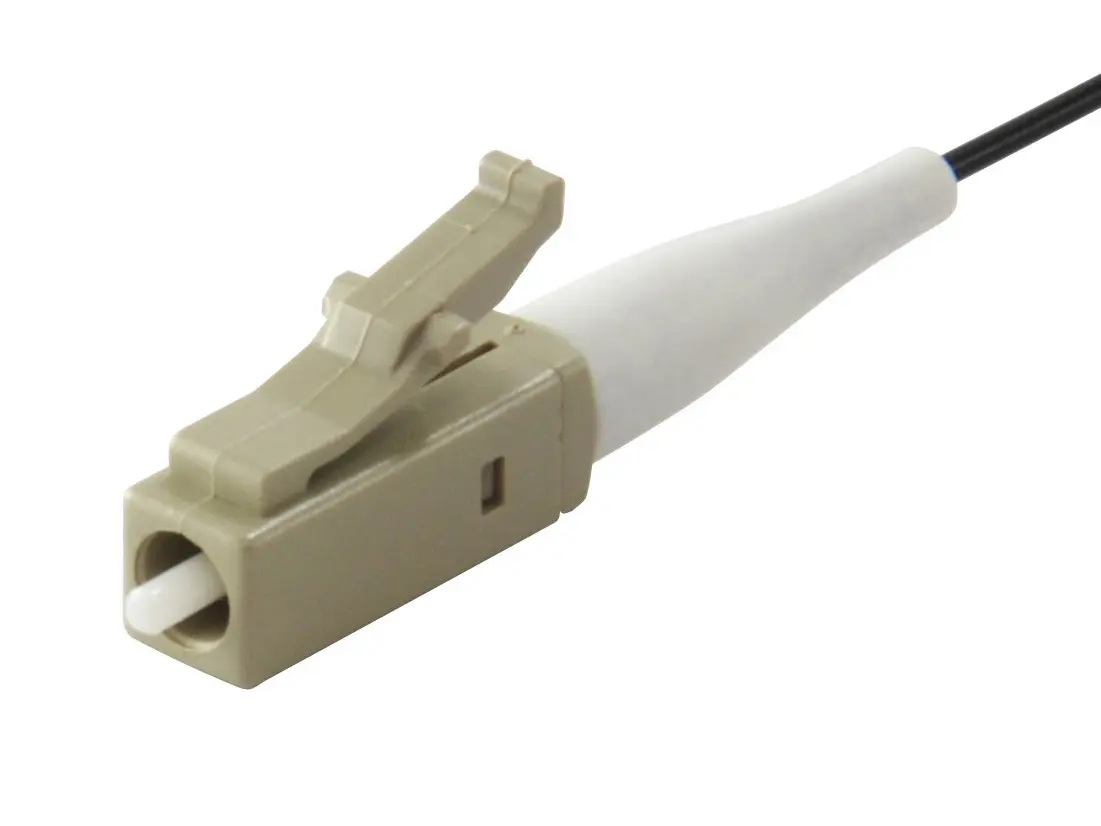

Fiber Optic Pigtail Equip LC/PC OM3 1.0m Photo 5

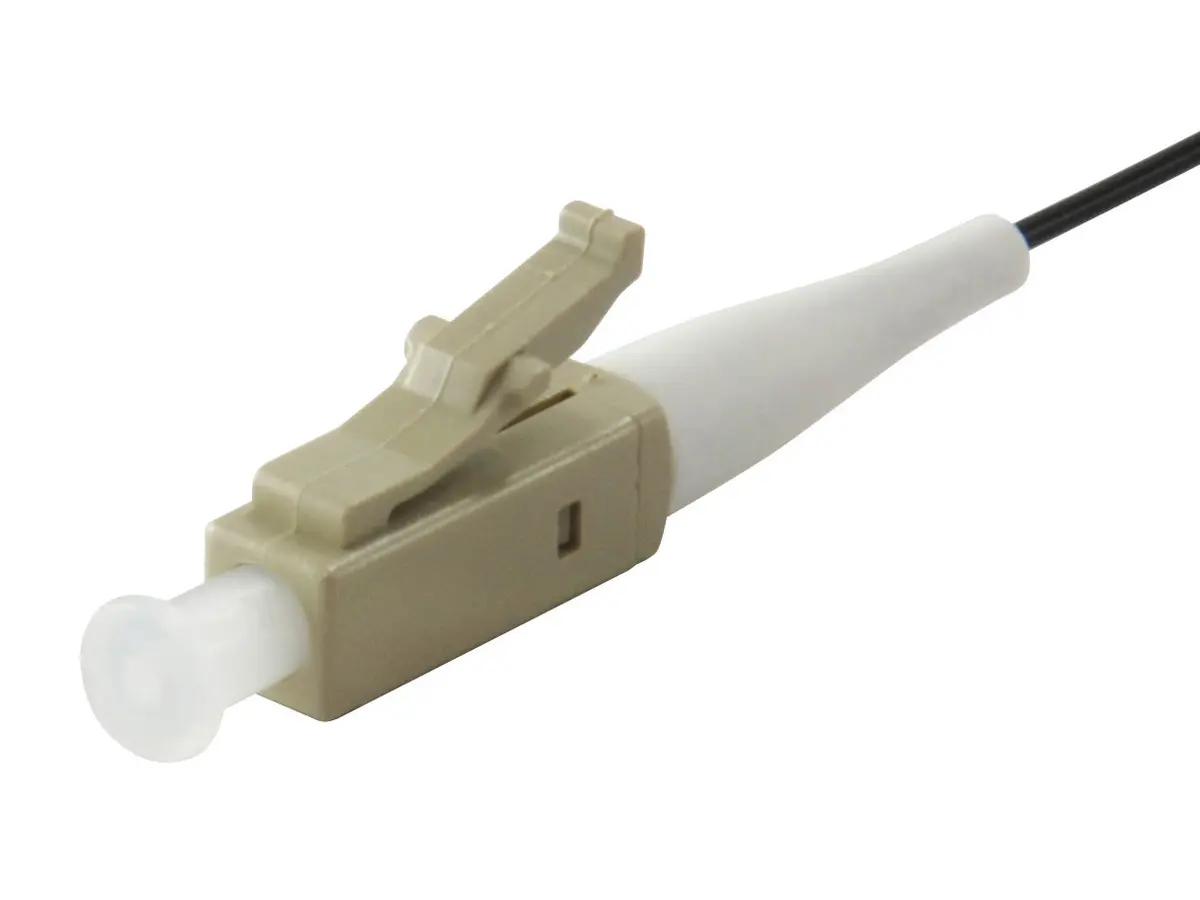

Fiber Optic Pigtail Equip LC/PC OM3 1.0m Photo 6

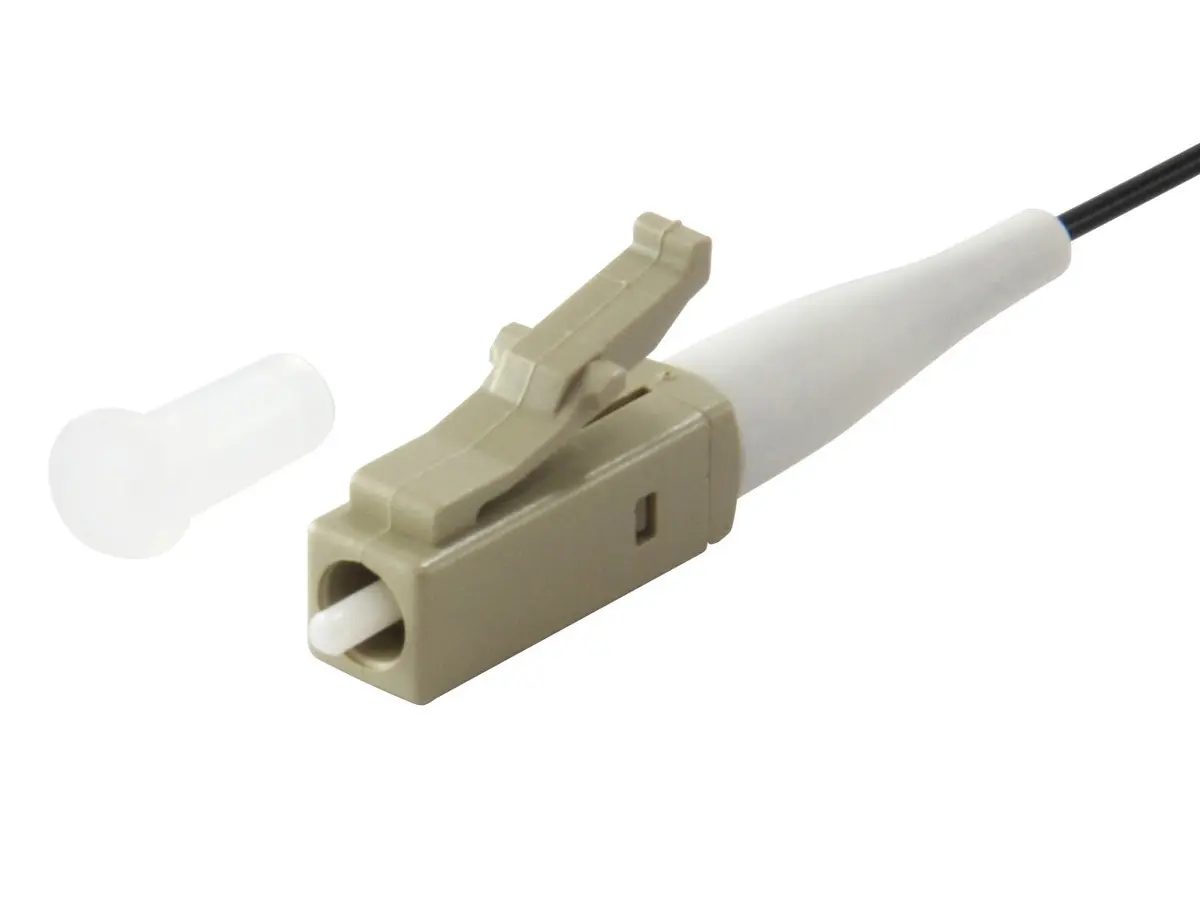

Fiber Optic Pigtail Equip LC/PC OM3 1.0m Photo 7

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Equip LC/PC Fiber Optic Pigtail OM3 1.0m features a 50 µm core diameter, ensuring high-speed data transmission. This full duplex cable is ideal for connecting network devices with LC connectors, providing reliable performance for various applications.

Available at price 31.99 €: 11 pcs.

Total available for order: 33 pcs.

Warranty: 2 Years

SKU: 1040572

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

11.08.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

14.08.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.02 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

14.08.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Equip LC/PC Fiber Optic Pigtail OM3 1.0m is a single-mode patch cable designed for reliable fibre connections in data networks. With a 50 µm core diameter and LC/PC connectors, this 1.0 m OM3 pigtail supports high-speed, full-duplex transmission and is suitable for short-range multimode links where controlled return loss and low insertion loss are required.

Advantages

This fiber optic pigtail is manufactured from high-quality materials to provide consistent end-face geometry, resulting in lower return loss and reduced insertion loss. The LC/PC connector ensures stable mating with LC ports and the OM3 fibre grade supports enhanced bandwidth for modern network applications. The product’s 1.0 m length and standardized connector type make installation and patching straightforward.

Suitable for

Data center patch panels and fibre trunk extensions
LAN and campus network links requiring OM3 multimode performance
Connecting switches, transceivers and optical equipment with LC ports

Key specifications

Brand: EQUIP
MPN: 255632
EAN: 4015867202593
Product type: Fiber optic pigtail / patch cord
Connector: LC/PC (single LC on one end for pigtail termination)
Fibre type: OM3 multimode
Core diameter: 50 µm
Length: 1.0 m
Mode: Full duplex

How to use

Prepare the fibre management area and ensure dust-free conditions before installation. Route the pigtail from the termination point to the patch panel or transceiver port and secure the cable to avoid sharp bends (keep bend radius within manufacturer recommendations). Clean LC/PC end faces with appropriate fibre-cleaning tools before mating. Insert the LC connector into the matching LC port until it clicks; verify link continuity and optical power levels after connection.

Usage recommendations

Store the pigtail in a protective spool or bag when not installed, avoid excessive bending or tensile stress, and always clean connector end faces prior to connection to maintain low insertion loss and reliable optical performance.

All features

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.019 kg
Certification:: CE
Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.: Yes
Package weight: Weight of the packaged product.: 22 g
Cable length: How long the cable is.: 1 m
Product colour: The colour e.g. red, blue, green, black, white.: Multicolour
Connector material:: Ceramic
Package depth: The distance from the front to the back of the packaging.: 12 mm
Package height: The distance from the top to the bottom of the packaging.: 275 mm
Package width: The distance from one side of the packaging to the other.: 175 mm
Connector 1: This is the first connector in the device.: LC
Connector 2: This is the second connector in the device.: No
Cable diameter: The distance from one side of the cable to the other, with a straight line going through the middle of the cable.: 0.9 mm
Fiber mode structure:: Multi-mode
Core diameter: The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.: 50 µm
Cladding diameter: The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.: 125 µm
Jacket material:: Low smoke zero halogen (LSZH)
Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.: Male
Quantity per pack:: 12 pc(s)
Harmonized System (HS) code:: 85447000
Fibre optic type: The standardised properties of the fiber optic cable.: OM3
Doesn't contain:: Halogen
Connector polish type:: PC
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: RoHS
