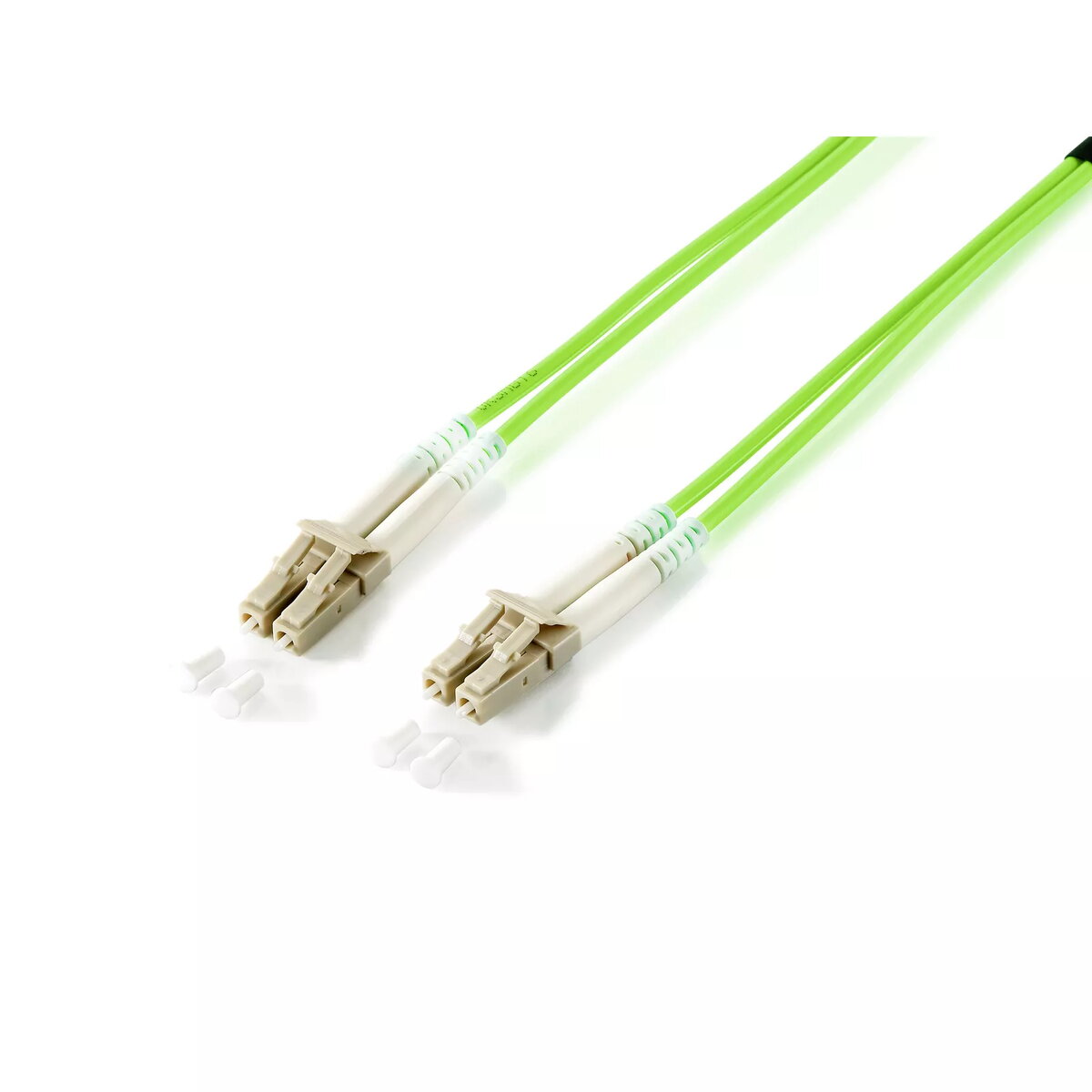

Fiber Optic Patch Cable Equip LC/LC OM5 1.0m

Fiber Optic Patch Cable Equip LC/LC OM5 Photo 1

Fiber Optic Patch Cable Equip LC/LC OM5 Photo 2

Fiber Optic Patch Cable Equip LC/LC OM5 Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Equip LC/LC Fiber Optic Patch Cable OM5, 1.0m features a 50 µm core diameter and full duplex capability, ensuring high-speed data transmission. Ideal for connecting devices in data centers or networks, this cable provides reliable performance and durability. Its compact length of 1 meter makes it perfect for tight spaces.

Available at price 12.49 €: 78 pcs.

Total available for order: 259 pcs.

Warranty: 2 Years

SKU: 10627770

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

11.08.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

14.08.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.02 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

14.08.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Equip LC/LC Fiber Optic Patch Cable OM5, 1.0m is a duplex LC-to-LC patch cord with a 50 µm multimode OM5 core designed for high-speed data transmission in data centers and network installations. Manufactured with quality materials, the cable delivers consistent insertion loss, return loss, and controlled endface geometry for reliable optical connections in compact environments.

Advantages

This 1.0 m Fiber Optic Patch Cable offers full duplex connectivity with standardized LC connectors and an OM5 50 µm multimode core, providing compatibility with modern multimode transceivers and optimized performance for short-range high-bandwidth links. The cable construction and connector polishing reduce insertion and return loss, supporting stable signal transmission and durable operation in patching panels and equipment racks.

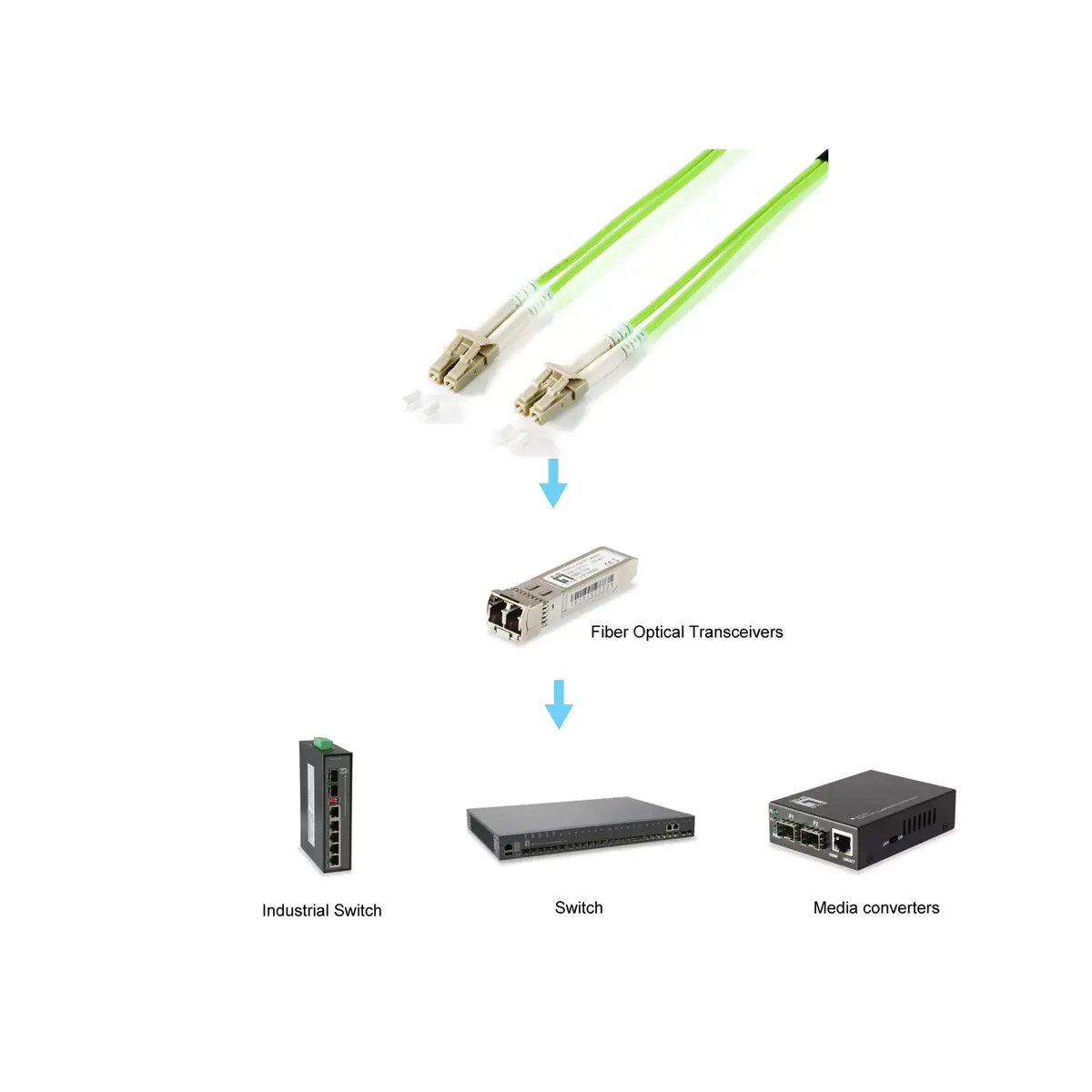

Suitable for

Short-range connections in data centers
Interconnects between switches, servers and patch panels
High-density rack installations and telecom cabinets
Multimode OM5 network links requiring duplex LC connectors

Key specifications

Brand: EQUIP
MPN: 255711
EAN: 4015867228982
Connector type: LC to LC (duplex)
Fiber type: OM5 multimode
Core diameter: 50 µm
Length: 1.0 m

How to use

Align each LC connector with the corresponding LC port on your transceiver, switch or patch panel and insert until the connector latches audibly. Use the duplex clip to maintain polarity and ensure the correct transmit/receive orientation. Route the cable to avoid tight bends and secure it within cable management hardware to prevent stress on the connectors and fiber.

Usage recommendations

For best performance, keep connector endfaces clean and inspect or clean them with appropriate fiber-optic cleaning tools before installation. Avoid bending the cable beyond its minimum bend radius and use the 1.0 m length for short-distance patching to minimize excess slack.

All features

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.018 kg
Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.: Yes
Cable length: How long the cable is.: 1 m
Data transfer rate: Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.: 100 Gbit/s
Product colour: The colour e.g. red, blue, green, black, white.: Green
Connector material:: Ceramic
Package type: The type of product package e.g. box.: Polybag
Connector 1: This is the first connector in the device.: LC
Connector 2: This is the second connector in the device.: LC
Cable diameter: The distance from one side of the cable to the other, with a straight line going through the middle of the cable.: 2 mm
Ethernet interface type:: 100 Gigabit Ethernet
Fiber mode structure:: Multi-mode
Core diameter: The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.: 50 µm
Cladding diameter: The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.: 125 µm
Jacket material:: Low smoke zero halogen (LSZH)
Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.: Male
Connector 2 gender: The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.: Male
Quantity per pack:: 1 pc(s)
Fibre optic type: The standardised properties of the fiber optic cable.: OM5
Sustainability compliance:: Yes
Sustainability certificates:: RoHS
