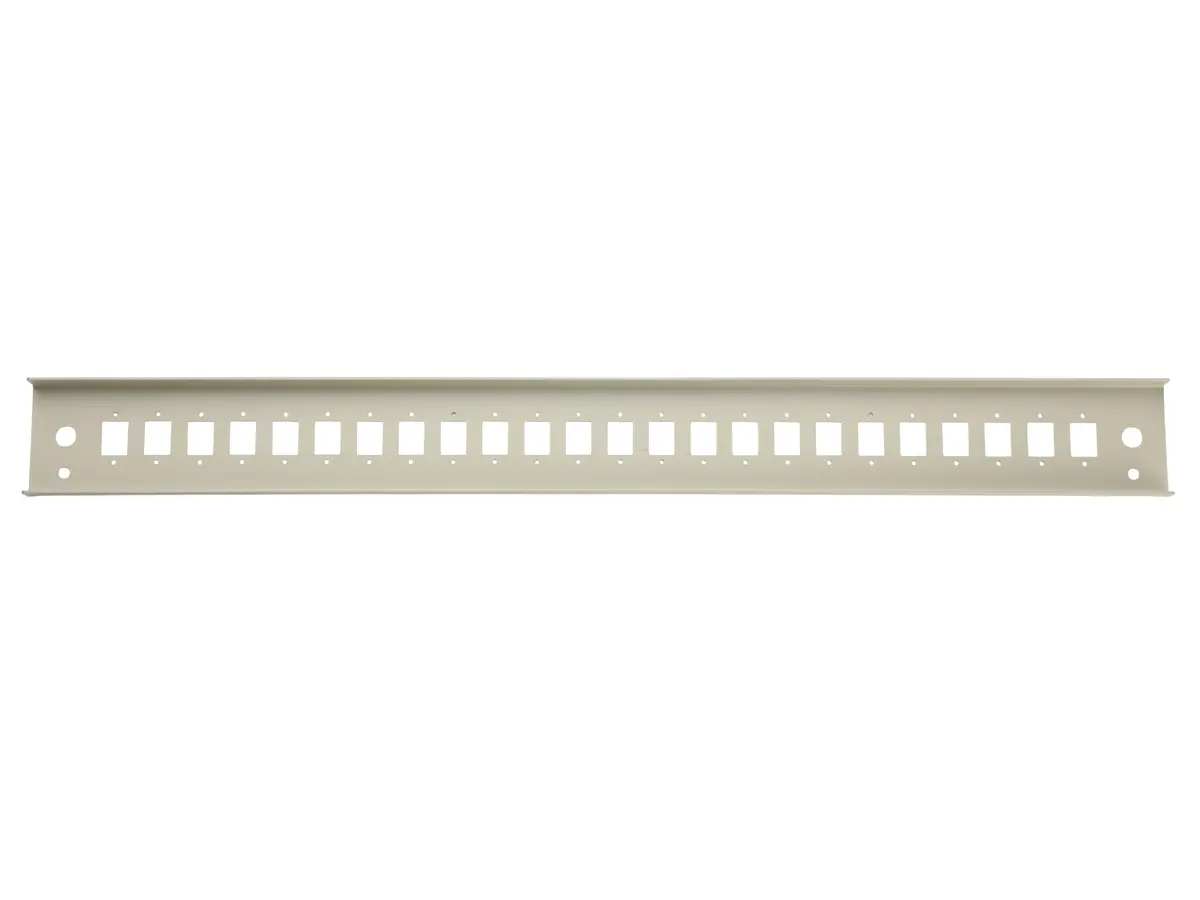

Equip 19" Patch Panel 24x LC-Duplex SC-Simplex 1U Steel Grey 337101

The Equip 19" Patch Panel 24x LC-Duplex SC-Simplex 1U Steel Grey is a reliable networking component designed to streamline fiber optic cable management in professional environments. Engineered for standard 19-inch rack installations, this patch panel occupies 1U of rack space and offers 24 versatile ports that accommodate LC-Duplex or SC-Simplex adapters. Constructed from robust steel with a functional grey finish, it provides a stable platform for organizing terminations and maintaining structured cabling systems in server rooms, data centers, and telecommunication facilities.

Advantages

This patch panel delivers exceptional durability and long-term reliability thanks to its sturdy steel construction, which protects internal connections and withstands the demands of high-density networking environments. Its 1U space-saving form factor maximizes rack efficiency without compromising accessibility. The inclusion of 24 flexible ports supporting both LC-Duplex and SC-Simplex adapters ensures seamless integration with existing fiber infrastructure, simplifying maintenance, cable routing, and network expansions.

Suitable for

• Organizing fiber optic cables in data centers and server rooms
• Managing telecommunication connections in 19-inch standard racks
• Enterprise network infrastructures requiring LC-Duplex or SC-Simplex connectivity
• Structured cabling systems demanding high port density within limited rack space

When it may not be suitable

This patch panel is not designed for copper cabling applications and cannot be used with RJ45 Ethernet cables. Additionally, it may not be appropriate for non-standard rack sizes that do not accommodate 19-inch equipment or installations requiring fewer ports where a high-density panel is unnecessary.

Key specifications

• Rack size compatibility: 19 inches
• Height form factor: 1U
• Port capacity: 24 ports
• Supported adapters: LC-Duplex and SC-Simplex
• Material: Steel
• Color: Grey

How to use

Begin by mounting the patch panel securely into an available 1U space within a standard 19-inch server rack or telecommunication cabinet using appropriate rack screws. Attach the compatible LC-Duplex or SC-Simplex adapters to the panel ports if they are not pre-installed. Route your incoming and outgoing fiber optic cables carefully through the rack management accessories to avoid excessive bending or tension. Insert the fiber optic connectors securely into the designated ports, ensuring proper alignment to maintain optimal signal transmission and prevent contamination.

What to consider before purchase

• Verify that your rack is a standard 19-inch model with 1U of available vertical space
• Confirm that your network setup utilizes LC-Duplex or SC-Simplex fiber optic connections
• Assess your current and future port requirements to ensure the 24-port capacity meets your needs

Usage recommendations

Always inspect and clean fiber optic connectors before inserting them into the patch panel ports to prevent signal loss and network degradation. Ensure proper cable slack management to reduce strain on the connections and facilitate future maintenance.
