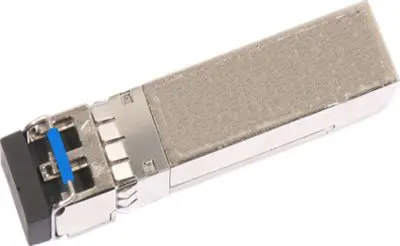

Fiber optic transceiver module Ernitec ELECTRA-S-SFP-L

The Ernitec ELECTRA-S-SFP-L is a compact fiber optic transceiver module operating at a wavelength of 1310 nm. Designed for SFP slots, it supports transmission over 9/125 µm single-mode fiber and provides a data link reach of up to 10 km. The module integrates the LD driver, limiting amplifier, digital diagnostic monitor, 1310 nm FP laser and PIN photodetector in a small metallic housing measuring approximately 15 mm × 60 mm × 10 mm and weighing 0.09 kg.

Advantages

The SFP form factor ensures compatibility with standard SFP ports and the module’s 1310 nm FP laser enables reliable single-mode fiber communication up to 10 km. Built-in digital diagnostic monitoring and integrated transmitter/receiver circuits simplify installation and maintenance. The compact metallic housing is suitable for space-constrained network equipment.

Suitable for

• Single-mode fiber links in LAN and campus networks
• Media conversion and small-scale fiber uplinks
• Network equipment with SFP ports (switches, routers, media converters)

Key specifications

• Brand: ERNITEC
• Model: ELECTRA-S-SFP-L (MPN: ELECTRA-S-SPF-L)
• Wavelength: 1310 nm
• Interface: SFP
• Fiber type: 9/125 µm single-mode
• Maximum reach: up to 10 km
• Dimensions: ca. 15 mm × 60 mm × 10 mm
• Weight: 0.09 kg
• Color: Metallic
• EAN: 5711783178071

How to use

Insert the ELECTRA-S-SFP-L module into an available SFP slot on compatible network equipment until it clicks into place. Connect a 9/125 µm single-mode fiber cable to the module’s optical connector following the device’s polarity and connector type requirements. Verify link status via the host device’s LEDs or management interface; use the digital diagnostic monitor to check optical parameters if available. To remove, power down the port if recommended by the host device, press the module latch and gently pull the transceiver out.

Usage recommendations

Use with certified 9/125 µm single-mode fiber and verify connector cleanliness before insertion. Observe electrostatic discharge (ESD) precautions when handling the module and follow the host equipment manufacturer’s guidelines for hot-swap and power procedures.
