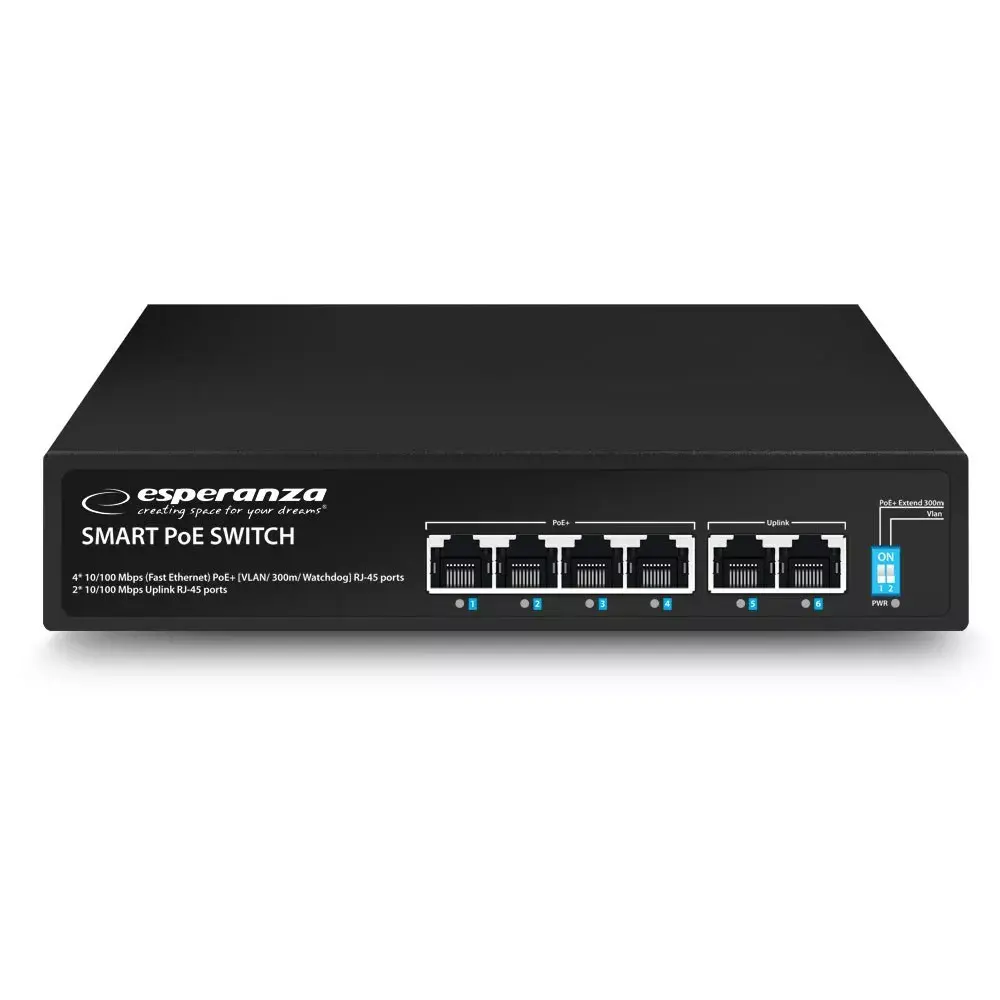

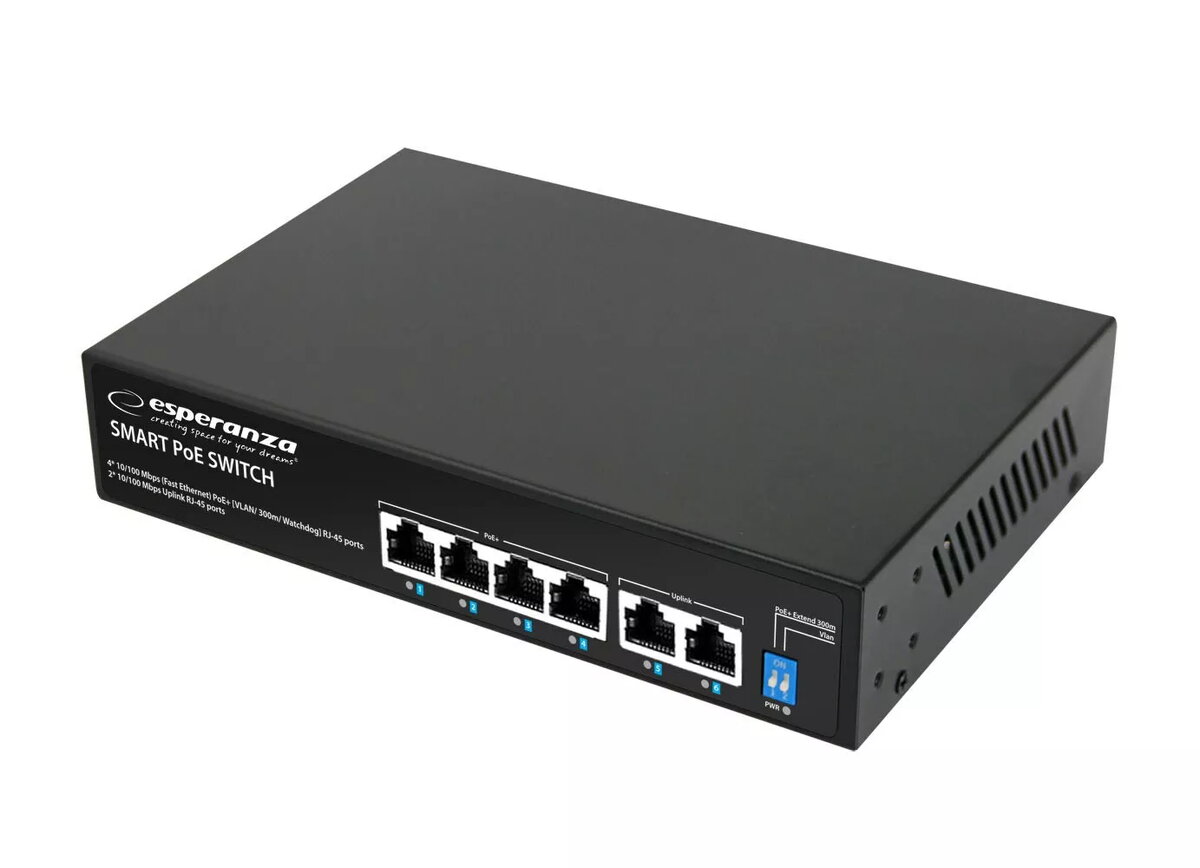

PoE switch ESPERANZA ENS105 — 6-port 10/100 Mbps, 4 PoE ports, 60W total PoE power

ESPERANZA ENS105 is an unmanaged PoE switch with six 10/100 Mbps RJ‑45 ports, four of which supply Power over Ethernet. The switch provides a total PoE budget of 60 W and supports up to 30 W per PoE port. The compact metal housing, low standby consumption and support for IEEE 802.3x flow control make it suitable for small office networks and simple IP device installations.

Advantages

The switch delivers four PoE ports with up to 30 W per port and a combined PoE power of 60 W, enabling direct power and data over a single cable to devices such as IP cameras and VoIP phones. It features auto MDI/MDI‑X and MAC address auto‑learning and auto‑aging for plug‑and‑play installation. The device operates over a wide temperature range and has low standby power consumption.

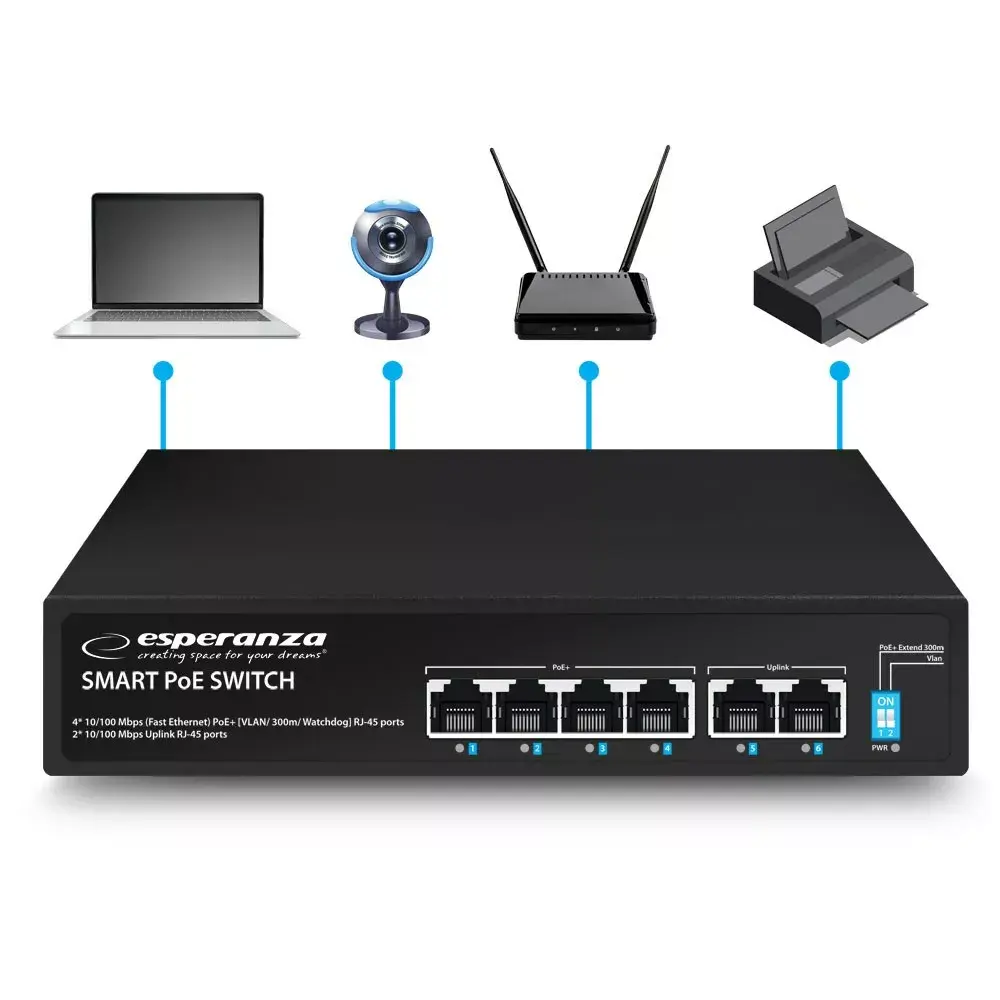

Suitable for

• Connecting and powering IP cameras
• Small office networks and workgroups
• VoIP phones and access points
• Simple PoE device deployments where unmanaged switching is sufficient

Key specifications

• Ports: 6 × Fast Ethernet (10/100) RJ‑45, 4 with PoE
• Total PoE power: 60 W (up to 30 W per PoE port)
• Switching capacity: 1.2 Gbit/s
• Forwarding rate: 0.89 Mpps
• Networking standards: IEEE 802.3x
• Cabling: 10/100Base‑T
• Auto MDI/MDI‑X: Yes
• MAC address auto‑learning and auto‑aging: Yes
• AC input voltage: 220–240 V, 50 Hz
• Power consumption (max): 60 W; standby: 2 W
• Operating temperature: -20 to 55 °C
• Storage temperature: -40 to 75 °C
• Operating humidity: 5–90% relative humidity
• Dimensions (H×W×D): 40 × 135 × 195 mm
• Colour: Black

How to use

Place the switch on a stable, ventilated surface or mount it according to the manufacturer's instructions. Connect the device to AC mains (220–240 V, 50 Hz). Use Ethernet cables to connect network devices to the RJ‑45 ports; PoE‑capable devices will receive power automatically from the PoE ports. The switch is unmanaged, so no configuration is required—connect devices and verify link/activity LEDs to confirm operation.

Usage recommendations

For reliable PoE operation, ensure the total power draw of connected PoE devices does not exceed the 60 W budget. Use quality Cat5e or better cabling for PoE devices and place the switch in an environment within the specified temperature and humidity ranges. If powering higher‑consumption devices, check per‑port power limits and distribute loads across PoE ports.
