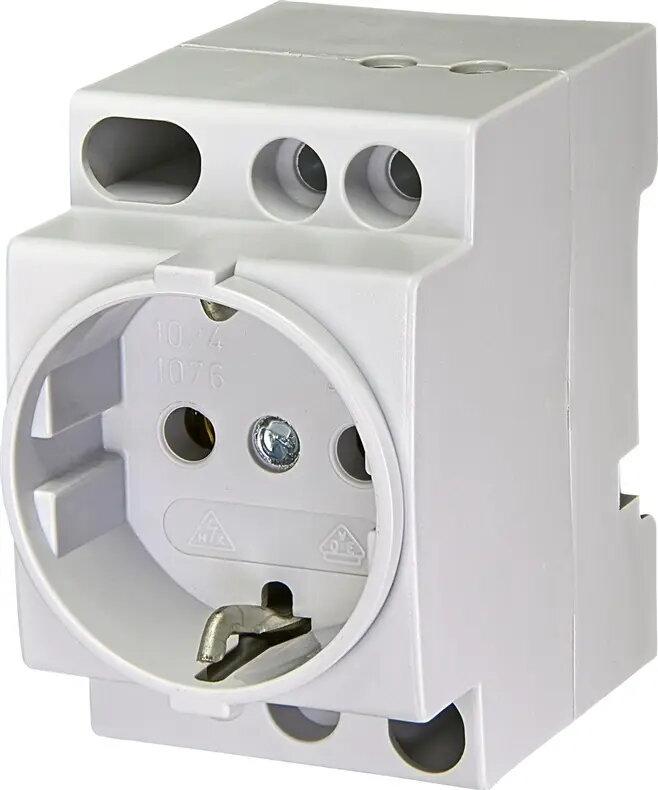

ETI 2414 DIN Rail Mounted Schuko Socket

The ETI 2414 DIN Rail Mounted Schuko Socket is a professional-grade electrical component engineered for seamless integration into electrical distribution systems. Designed for direct installation onto standard 35mm DIN rails, this socket provides a convenient and secure power source within control cabinets, industrial enclosures, and distribution boards. Its robust plastic construction and reliable grounding contacts ensure safe operation for various auxiliary electrical devices.

Advantages

This DIN rail socket offers exceptional ease of installation, allowing for quick mounting without the need for complex modifications to the enclosure panel. By providing a dedicated power point directly inside the cabinet, it simplifies the process of connecting testing equipment, maintenance tools, or auxiliary power supplies. The compact design ensures that it occupies minimal space on the rail, making it an efficient solution for crowded electrical panels where space optimization is critical.

Suitable for

• Powering testing and measurement equipment in control cabinets
• Connecting maintenance tools during electrical system servicing
• Providing auxiliary power for lighting or communication devices in distribution boards
• Industrial automation setups requiring localized power access

When it may not be suitable

This socket is rated at IP20, meaning it is not protected against water ingress or dust accumulation. Therefore, it is not suitable for outdoor installations or environments with high humidity, moisture, or significant airborne contaminants unless housed within a secondary protective enclosure.

Key specifications

• Mounting type: 35mm DIN rail
• Rated current: 16 A
• Rated voltage: 250 V
• Number of sockets: 1
• Grounding: Integrated grounding contacts
• Material: Durable plastic
• Degree of protection: IP20
• Dimensions: 70 mm length, 45 mm width

How to use

To install the ETI 2414, simply snap the unit onto a standard 35mm DIN rail inside your electrical enclosure. Ensure that the power supply to the rail or the circuit is disconnected before performing any wiring. Connect the phase, neutral, and earth conductors to the corresponding terminals on the back of the socket according to local electrical regulations. Once the wiring is secure and the connections are verified, the socket is ready to provide power to your devices.

What to consider before purchase

• Verify that your enclosure has sufficient space on the DIN rail for the 45mm width of the unit
• Ensure the environment meets the IP20 protection rating requirements
• Check that your local electrical standards permit the use of Schuko-style sockets in your specific application
• Confirm that the total load of connected devices does not exceed the 16 A current rating

Usage recommendations

Always ensure that the installation is performed by a qualified electrician in accordance with local safety standards. Regularly inspect the socket for signs of wear or loose connections during routine maintenance of the electrical panel.
