header-product Pigtail SC/UPC multimode cable Extralink OM2 50 µm 900 µm 2 m FTTH orange
4.49 €

Pigtail SC/UPC multimode cable Extralink OM2 50 µm 900 µm 2 m FTTH orange

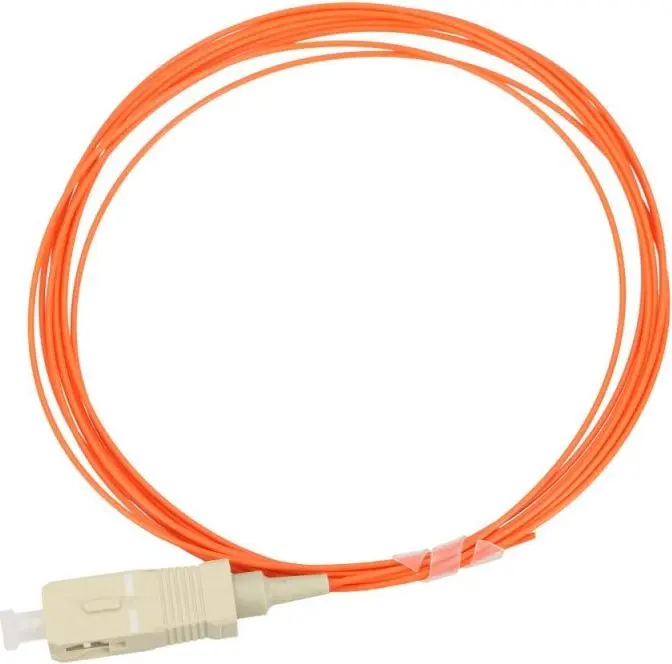

Extralink Pigtail SC/UPC OM2 2 m Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Pigtail SC/UPC multimode cable Extralink OM2 50 µm 900 µm 2 m FTTH orange

{{email}}
You keep track of price changes

Pigtail SC/UPC multimode cable Extralink OM2 50 µm 900 µm 2 m FTTH orange

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Extralink multimode pigtail with SC/UPC connector designed for FTTH installations. OM2 fibre with 50 µm core and 900 µm buffer, 2 m cable length, orange jacket. Used for splicing and patching in optical networks, fibre distribution panels and telecom equipment where short multimode pigtails are required.
Available for order: 66 pcs.
Warranty: 2 Years
SKU: 961854
Manufacturer: Extralink
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
25.09.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
30.09.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
30.09.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Pigtail SC/UPC multimode cable Extralink OM2 50 µm 900 µm 2 m FTTH orange is a factory-terminated multimode pigtail designed for short-range fibre connections in FTTH and telecom installations. It features an SC/UPC connector on one end and a bare fibre tail on the other for fusion splicing or mechanical splicing. The cable uses OM2 multimode fibre with a 50 µm core and 900 µm buffered fibre, and comes in an orange jacket with a 2 m overall length. Typical use includes splicing and patching in optical distribution panels, telecom equipment and CCTV fibre runs where a short, pre-connectorised multimode lead is required.

Advantages

The Extralink OM2 multimode pigtail provides a pre-terminated SC/UPC interface that simplifies splicing and hookup in fibre distribution frames and enclosures. Its 900 µm buffered fibre tail eases handling during fusion or mechanical splicing, while the 50 µm core OM2 fibre supports reliable multimode transmission for local and building-level networks. The 2 m cable length and bright orange jacket make routing and identification straightforward in fibre bundles and racks.

Suitable for

  • FTTH splice enclosures and distribution panels
  • Short-distance multimode links in buildings and campus networks
  • CCTV camera fibre connections requiring multimode pigtails
  • Fusion splicing and mechanical splicing operations

Key specifications

  • Fibre type: Multimode OM2
  • Core diameter: 50 µm
  • Buffer diameter: 900 µm
  • Connector: SC/UPC on one end
  • Cable length: 2 m
  • Cable jacket colour: Orange
  • Cable application: FTTH / short-range multimode patching and splicing

How to use

Prepare the fibre tail according to standard splicing procedures, strip the buffer and clean the bare fibre before fusion or mechanical splicing. Insert the pre-terminated SC/UPC connector into the matching adapter or patch panel after splicing is complete and verify optical continuity and loss with appropriate test instruments. Securely route and fix the 2 m pigtail inside the enclosure to avoid strain on the splice point and to maintain stable connections.

Usage recommendations

Handle the 900 µm buffered fibre carefully to avoid microbending; perform splicing and cleaning in a dust-free environment and use an optical power meter or visual fault locator to confirm correct operation after installation.

Specifications

Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2: This is the second connector in the device.
No
Connector 1: This is the first connector in the device.
SC
Cable length: How long the cable is.
2 m
All features
Connector material:
Ceramic
Insertion loss:
0.15 dB
Fiber mode structure:
Multi-mode
Core diameter: The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.
50 µm
Cladding diameter: The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.
125 µm
Fibre optic type: The standardised properties of the fiber optic cable.
OM2
Return loss:
60 dB
Connector polish type:
UPC

Other features

Cable diameter: The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
0.9 mm

Packaging data

Package type: The type of product package e.g. box.
Bag

Packaging content

Quantity per pack:
1 pc(s)

Certificates

Certification:
CE, RoHs

Operational conditions

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-40 - 85

Features

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Yes
Cable type: Type of cable e.g. electicity cable, optical cable.
FTTH
Jacket material:
Polyvinyl chloride (PVC)
Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2: This is the second connector in the device.
No
Connector 1: This is the first connector in the device.
SC
Product colour: The colour e.g. red, blue, green, black, white.
Orange
Cable length: How long the cable is.
2 m
