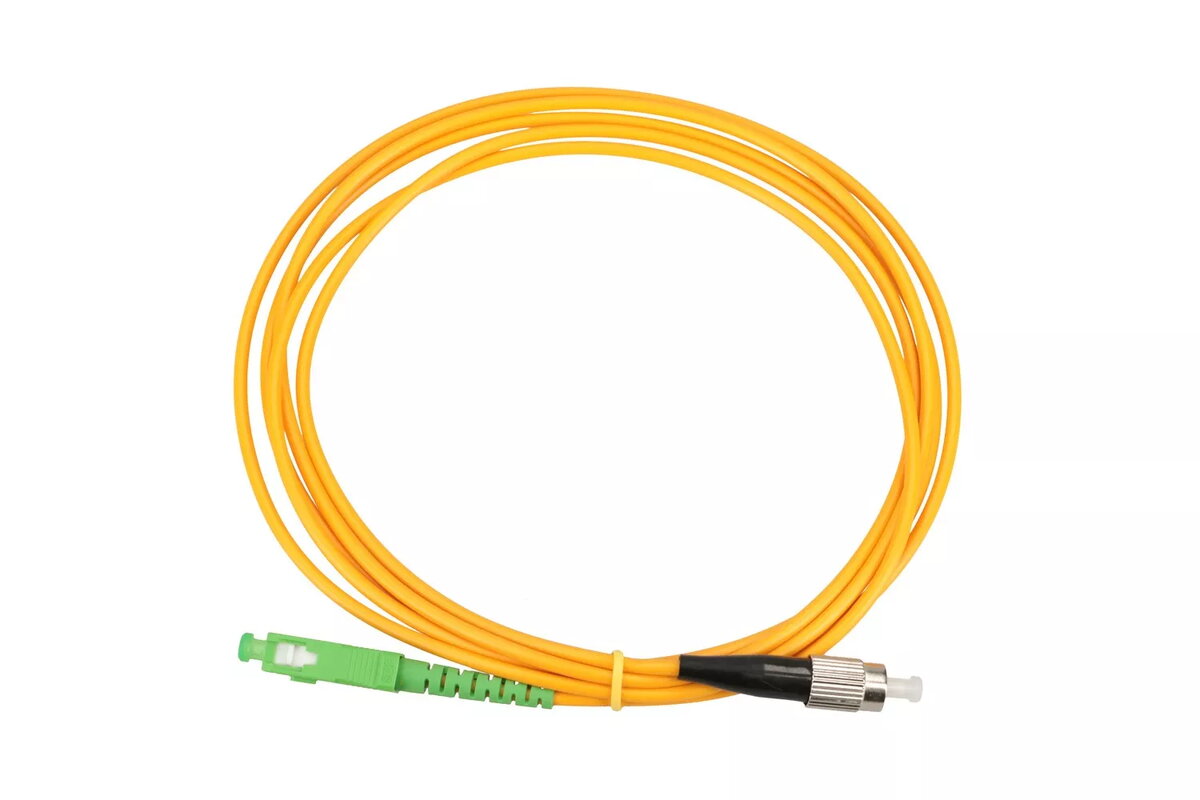

Extralink SC/APC–FC/UPC G.657.A1 2 m fiber patchcord

Name: Fiber optic patchcord Extralink SC/APC–FC/UPC EX.13780
Brand: Extralink
SKU: 10844319
Price: 5.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Fiber optic patchcord Extralink SC/APC–FC/UPC simplex G.657.A1 3.0 mm 2 m (FTTH)

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Extralink fiber optic patchcord, simplex FTTH cable with G.657.A1 single-mode fiber, 3.0 mm jacket and 2 m length. Fitted with an SC/APC connector on one end and an FC/UPC connector on the other, suitable for fiber-to-the-home links, patch panels and optical equipment interconnection where low-bend-loss single-mode fiber is required.

Available for order: 62 pcs.

Warranty: 2 Years

SKU: 10844319

Manufacturer: Extralink

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

09.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

09.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

14.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.02 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

14.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Extralink fiber optic patchcord SC/APC–FC/UPC simplex G.657.A1 3.0 mm 2 m is a single-mode fiber jumper designed for FTTH and optical equipment interconnection. The cable uses bend-insensitive G.657.A1 fiber with a 3.0 mm outer jacket and a 2 meter length, terminated with an SC/APC connector on one end and an FC/UPC connector on the other. This patchcord provides a compact, low-loss connection for patch panels, optical line terminals and customer premises equipment where controlled attenuation and reliable single-mode performance are required.

Advantages

The use of G.657.A1 bend-insensitive single-mode fiber reduces macro-bend losses and improves signal stability in installations with tight routing and limited bend radius. The mixed connector configuration (SC/APC to FC/UPC) offers compatibility between different types of optical equipment while maintaining low insertion loss and return loss suitable for single-mode networks. The 3.0 mm jacket provides mechanical protection and handling ease during installation and maintenance.

Suitable for

FTTH drop and indoor subscriber connections
Interconnection between OLT, ONU/ONT and optical network devices
Patch panels and rack-mounted optical equipment
Laboratory setups and test benches requiring mixed SC/APC–FC/UPC interfaces

Key specifications

Fiber type: single-mode, bend-insensitive G.657.A1
Cable diameter: 3.0 mm jacket
Length: 2 meters
Connector A: SC with angled physical contact (APC)
Connector B: FC with UPC polish
Configuration: simplex (single fiber)
Intended use: indoor/FTTH signal interconnection

How to use

Route the patchcord along the planned cable paths avoiding sharp bends and securing the cable with appropriate clamps or cable management elements. Insert the SC/APC connector into the corresponding SC/APC receptacle using the keyed housing to ensure correct orientation, then insert the FC/UPC connector into the FC port and secure it by threading the connector's ferrule sleeve as required. Verify optical continuity and signal levels with suitable test equipment after connection. Handle the fiber ends by keeping protective caps on until final insertion and avoid touching or contaminating connector end faces.

Usage recommendations

Store and transport the patchcord coiled without tight loops; maintain a bend radius according to G.657.A1 recommendations to preserve low-bend-loss performance. Clean connector end faces with appropriate fiber cleaning tools before mating. Use the SC/APC–FC/UPC patchcord in applications requiring compatibility between APC and UPC interfaces while monitoring return loss when connecting mixed-polish connectors.

Specifications

Cable length:: 2 m
Cable type:: FTTH
Connector 1:: SC
Connector 2:: FC
Weight:: 0.022 kg
Product colour:: Yellow

All features

Full duplex:: No
Fibre optic type:: G.657.A1
Connector polish type:: APC/UPC
Test protocol included:: Yes

Features

Cable length:: 2 m
Cable type:: FTTH
Connector 1:: SC
Connector 2:: FC
Product colour:: Yellow
Plug and Play:: Yes
Jacket material:: Nylon/Polyvinyl Chloride (PVC)
Connector 1 gender:: Male
Connector 2 gender:: Male

Other features

Cable diameter:: 3 mm

Weight & dimensions

Weight:: 0.022 kg

Packaging data

Package weight:: 2200 g
Package depth:: 200 mm
Package height:: 400 mm
Package width:: 200 mm
Package type:: Box
Package volume:: 0.16 cm³

Packaging content

Quantity per pack:: 100 pc(s)
