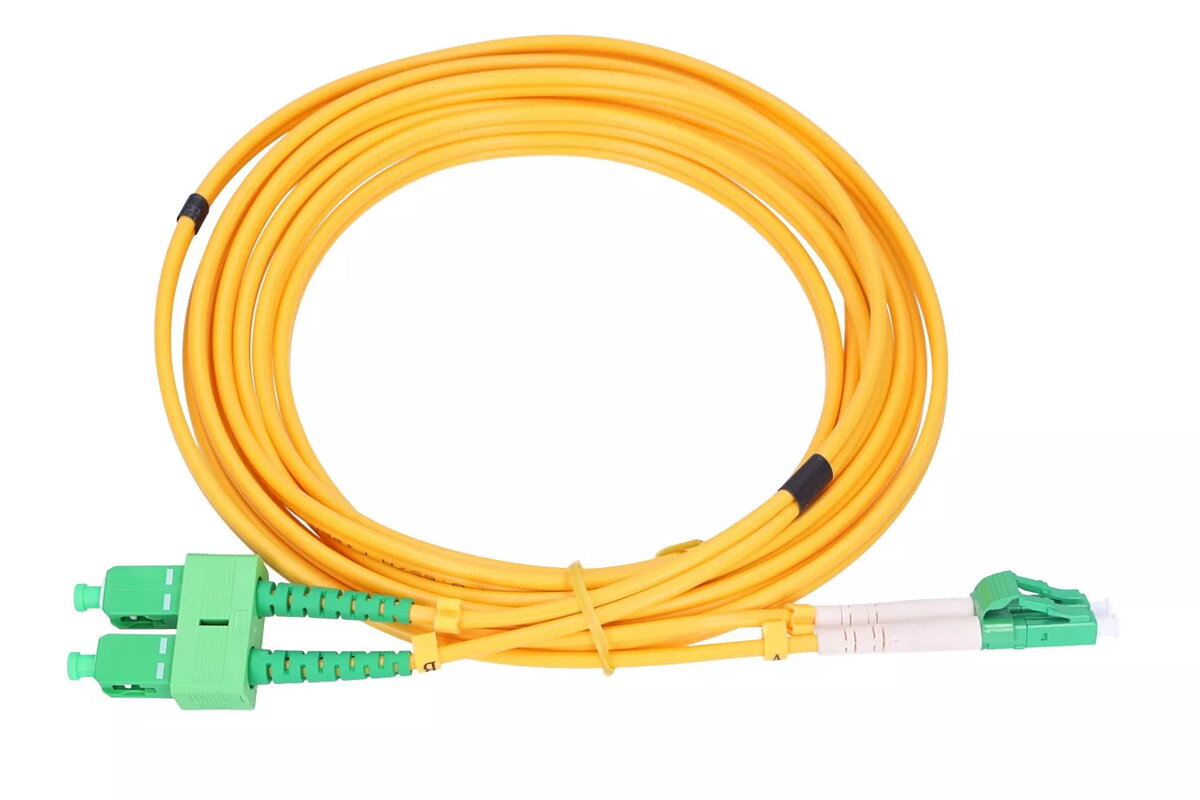

Extralink Patchcord SC/APC–LC/APC Singlemode 5 m

Name: Patchcord Extralink SC/APC to LC/APC EX.1452
Brand: Extralink
SKU: 10734366
Price: 8.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Patchcord Extralink SC/APC to LC/APC Singlemode Duplex 9/125 µm 3 mm 5 m

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Singlemode duplex fibre optic patchcord by Extralink with SC/APC connector on one end and LC/APC on the other. Cable: 9/125 µm singlemode (G.657.A1), 3 mm diameter, 5 m length. Designed for FTTH and network connections requiring low-loss singlemode links and full duplex transmission between equipment.

Available for order: 35 pcs.

Warranty: 2 Years

SKU: 10734366

Manufacturer: Extralink

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

09.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

09.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

14.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.08 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

14.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Extralink SC/APC to LC/APC Singlemode Duplex patchcord, 9/125 µm, 3 mm diameter, 5 m length, is a factory-terminated optical cable designed for low-loss singlemode connectivity. The cable uses G.657.A1 fibre characteristics and provides full-duplex transmission through SC/APC connector on one end and LC/APC connector on the other. It is suitable for FTTH deployments and connections between optical equipment such as switches, media converters, and ONT/ONU devices where precise alignment and low back-reflection are required.

Advantages

The patchcord combines angled APC terminations with singlemode 9/125 µm fibre to minimise return loss and improve signal integrity in systems sensitive to reflections. Its 3 mm jacket offers mechanical protection and flexibility for rack, patch panel and in-premises routing while keeping bend sensitivity low thanks to the G.657.A1 fibre type. Factory-polished connectors deliver consistent insertion loss and reproducible performance across installations.

Suitable for

FTTH subscriber connections between OLT and ONT/ONU
Interconnections between switches, optical transceivers and media converters
Patch panels and rack-mounted optical distribution frames
Low-loss singlemode links in data centres and telecom rooms

Key specifications

Fibre type: Singlemode 9/125 µm, compliant with G.657.A1 bending performance
Connector A: SC/APC (angled physical contact)
Connector B: LC/APC (angled physical contact)
Configuration: Duplex (two fibres)
Cable diameter: 3.0 mm
Length: 5 metres
Usage: Indoor patching and short-distance interconnects

How to use

Route the patchcord following standard fibre handling practices: avoid sharp bends, kinks and excessive tensile stress. Insert SC/APC and LC/APC connectors into the corresponding adapter ports until they click or seat firmly, ensuring the keyed orientation matches the adapter. For duplex links, maintain correct polarity so transmit and receive channels align between devices. Inspect connector endfaces with a fibre inspection tool and clean with approved wipes or solvents if contamination is present before making connections.

Usage recommendations

Store and install the patchcord in controlled conditions, avoiding temperatures or humidity outside equipment specifications. Use bend radius guidance (typically >30 mm for a 3 mm jacket unless otherwise specified) and protect exposed connectors with dust caps when not in use to preserve low insertion loss and return loss characteristics.

Specifications

Cable length:: 5 m
Cable type:: FTTH
Connector 1:: SC
Connector 2:: LC
Weight:: 0.075 kg
Product colour:: Yellow

All features

Full duplex:: Yes
Fiber mode structure:: Single-mode
Fibre optic type:: G.657.A1
Connector polish type:: APC
Test protocol included:: Yes

Features

Cable length:: 5 m
Cable type:: FTTH
Connector 1:: SC
Connector 2:: LC
Product colour:: Yellow
Jacket material:: Nylon/Polyvinyl Chloride (PVC)
Connector 1 gender:: Male
Connector 2 gender:: Male

Other features

Cable diameter:: 3 mm

Weight & dimensions

Weight:: 0.075 kg

Packaging data

Package weight:: 7500 g
Package depth:: 200 mm
Package height:: 400 mm
Package width:: 200 mm
Package type:: Box
Package volume:: 0.16 cm³

Packaging content

Quantity per pack:: 100 pc(s)

Hide Show all
