Extralink Patchcord SC/UPC - SC/APC G.657.B3 20 m

Name: Patchcord Extralink SC/UPC - SC/APC, EX.3128
Brand: Extralink
SKU: 10937060
Price: 5.99 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

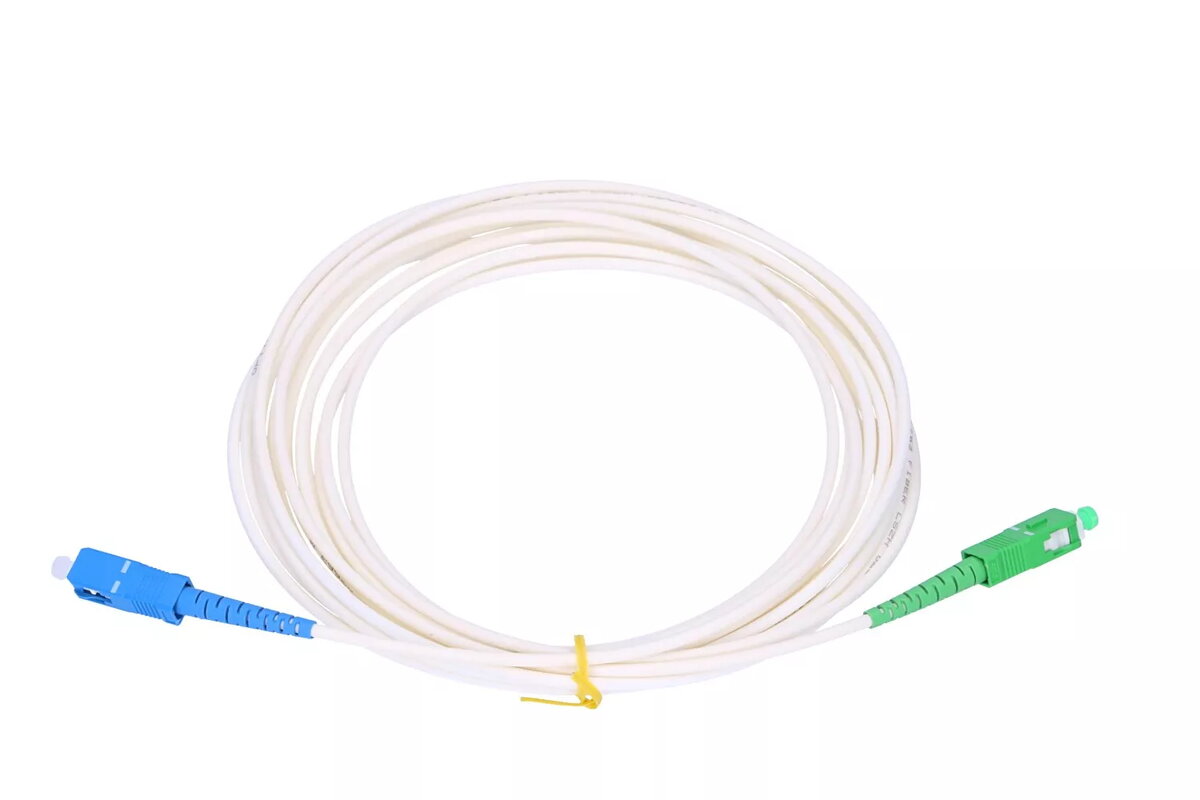

Patchcord Extralink SC/UPC - SC/APC, Singlemode G.657.B3, LSZH 3mm Simplex Easy Flex, 20 m

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Singlemode fibre optic patchcord Extralink with SC/UPC connector on one end and SC/APC on the other. Cable: FTTH G.657.B3, 3 mm diameter, LSZH jacket, Easy Flex construction, simplex configuration, 20 m length. Designed for fiber access, indoor/outdoor routing, subscriber connections and equipment linking where low-bend-loss singlemode cable is required.

Available at price 5.99 €: 1 pcs.

Total available for order: 55 pcs.

Warranty: 2 Years

SKU: 10937060

Manufacturer: Extralink

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

02.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 €

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

02.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Singlemode Extralink patchcord with SC/UPC connector on one end and SC/APC on the other, designed as a 20 m simplex cable for low-bend-loss applications. The fibre meets G.657.B3 profile requirements and is installed inside a 3.0 mm diameter cable with an LSZH (Low Smoke Zero Halogen) jacket and Easy Flex construction. This patchcord is suitable for fiber access, subscriber connections and inter-equipment links where a flexible yet robust singlemode connection is required.

Advantages

The Extralink SC/UPC–SC/APC patchcord combines low-bend-loss G.657.B3 fibre with a slim 3 mm LSZH jacket to provide reliable optical performance in tight routing paths. Easy Flex cable construction improves handling during installation and reduces stress on connectors, while the mixed connector pair (SC/UPC to SC/APC) enables compatibility with equipment requiring different end-face polish types. The LSZH outer sheath limits smoke and toxic fumes in the event of fire, making the cable suitable for indoor environments and confined spaces.

Suitable for

FTTH subscriber drops and indoor subscriber patching
Interconnection between OLT, ONU/ONT and optical equipment
Tight bend routing in cabinets, conduits and behind walls
Signal distribution in buildings where low-smoke materials are required

Key specifications

Fibre type: Singlemode, ITU-T G.657.B3 (low-bend-loss)
Connectors: SC/UPC (one end) and SC/APC (other end)
Configuration: Simplex
Cable diameter: 3.0 mm
Jacket material: LSZH (Low Smoke Zero Halogen)
Construction: Easy Flex for improved flexibility and handling
Length: 20 metres

How to use

Verify connector types on the equipment before installation to ensure SC/UPC and SC/APC terminations match the intended ports. Route the patchcord along planned pathways avoiding sharp bends and mechanical pinch points; the G.657.B3 fibre tolerates tighter radii than standard singlemode cable but still requires careful routing. Insert connectors into corresponding adapter ports until a positive click is felt for secure mating. When disconnecting, press the connector latch and pull straight out to avoid lateral stress. Clean connector end-faces with appropriate fibre cleaning tools before making connections to maintain low insertion loss and good optical performance.

Usage recommendations

Store the patchcord coiled with a large radius and avoid repeated tight bending. Use dust caps on unused connectors and perform end-face inspection and cleaning before each connection. In environments with fire-safety requirements, prefer LSZH cabling and follow local installation standards for routing and support.

Specifications

Cable length:: 20 m
Cable type:: FTTH
Connector 1:: SC
Connector 2:: SC
Product colour:: White

All features

Full duplex:: No
Fiber mode structure:: Single-mode
Fibre optic type:: G.657.B3
Connector polish type:: APC/UPC
Test protocol included:: Yes

Features

Cable length:: 20 m
Cable type:: FTTH
Connector 1:: SC
Connector 2:: SC
Product colour:: White
Jacket material:: Low smoke zero halogen (LSZH)
Connector 1 gender:: Male
Connector 2 gender:: Male

Other features

Cable diameter:: 3 mm

Hide Show all
