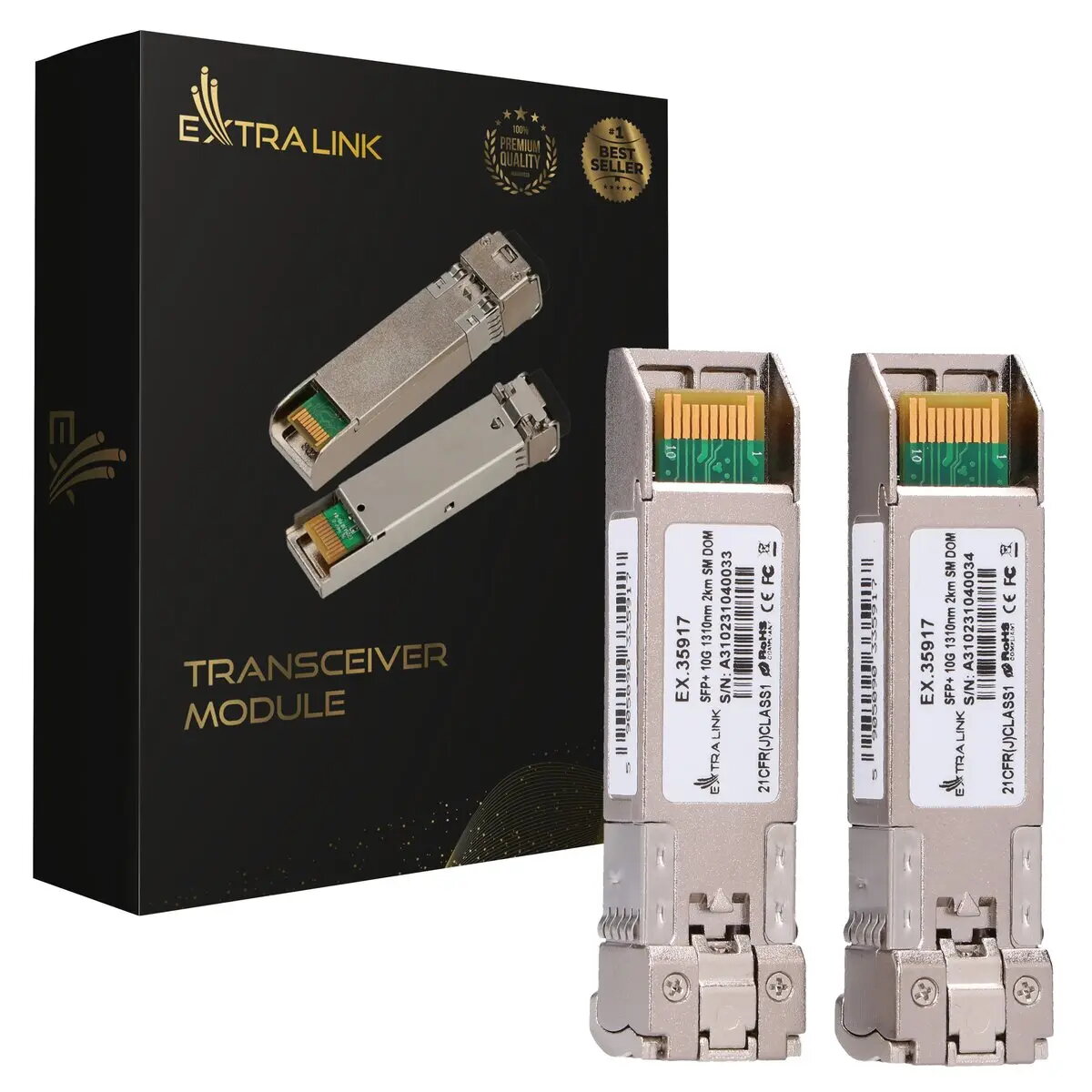

SFP+ Module Extralink EX.35917 10Gbps 1310nm 2km

The SFP+ Module Extralink EX.35917 10Gbps 1310nm 2km is a hot-pluggable optical transceiver designed for high-speed uplinks and short-range single-mode fiber links. It supports a 10 Gbps data rate over a 1310 nm wavelength and is intended for use in compatible SFP+ ports on switches, routers, servers and fiber media converters. The compact form factor simplifies installation and replacement in data centers, enterprise networks and telecom access points.

Advantages

This SFP+ module delivers a 10 Gbps throughput on single-mode fiber with a reach up to 2 km at 1310 nm, combining high bandwidth with a compact, hot-swappable design. It is compatible with standard SFP+ interfaces and supports straightforward plug-and-play installation, minimizing downtime during upgrades. The transceiver is optimized for short metro and enterprise links where reliable, low-latency connectivity is required.

Suitable for

• 10 Gbps uplinks between switches and aggregation devices
• Server-to-switch fiber connections in data centers
• Short metro or campus fiber links up to 2 km
• Fiber media converters and SFP+ enabled network appliances

Key specifications

• Data rate: 10 Gbps
• Wavelength: 1310 nm
• Maximum reach: up to 2 km over single-mode fiber
• Form factor: SFP+ (hot-pluggable)
• Interface type: LC duplex fiber connector

How to use

Insert the SFP+ module into a compatible SFP+ port until it clicks into place, then secure any module latch if present. Connect LC duplex single-mode fiber cables to the transceiver, observing correct TX/RX orientation. After physical installation the host device should recognize the transceiver; verify link status and interface configuration on the switch, router or server and adjust network settings as needed. For removal, power down the interface where required by your device documentation, release the latch and pull the module straight out.

Usage recommendations

Use single-mode fiber with appropriate LC connectors and maintain proper cable cleanliness to ensure optimal signal quality. Verify compatibility with the host equipment’s SFP+ slot and firmware, and follow the manufacturer’s ESD and handling guidelines when installing or removing the module.
