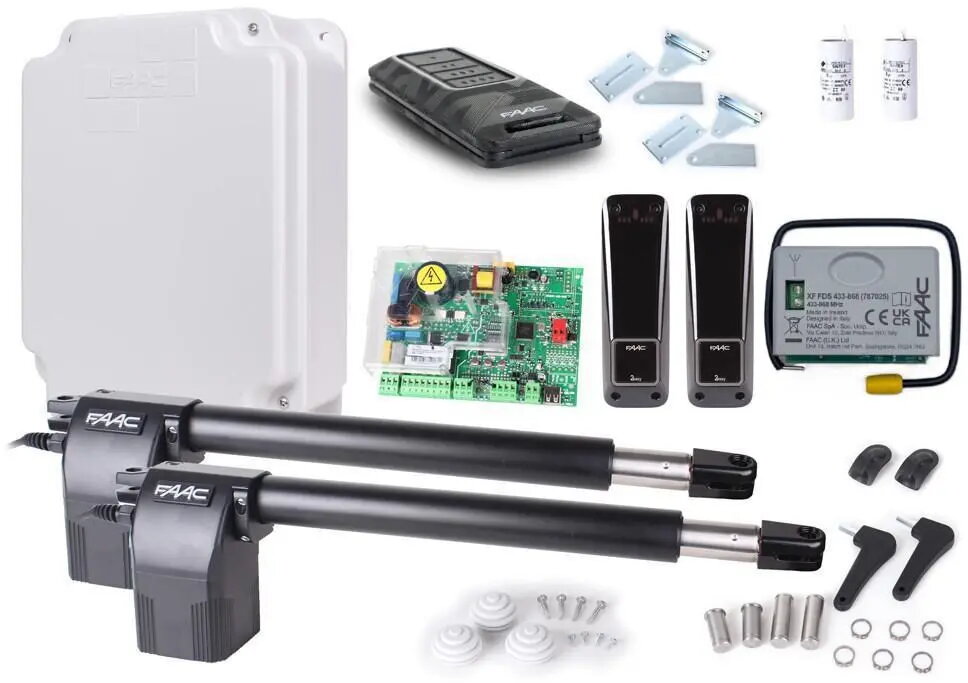

Gate automation set FAAC 414 for double-wing gates, model 5170224

FAAC 414 gate automation set for double-wing gates, model 5170224 provides motorised operation for residential and light-commercial swing gates with two leaves. The set is designed to automate opening and closing cycles, reduce manual handling and allow integration with common safety devices and control accessories. It is suitable for users who need reliable daily operation and basic access control for private homes, small apartment entrances or light commercial premises.

Advantages

The FAAC 414 set offers compact electromechanical actuation tailored for double-wing gates, delivering consistent torque and controlled movement. Installation is compatible with common gate geometries and mounting points, and the system supports connection to standard safety photocells, keypads, remote controls and safety edges. The kit design simplifies replacement or upgrade of manual gates and provides predictable performance for frequent cycles under normal residential conditions.

Suitable for

• Residential two-leaf swing gates
• Small apartment or condominium entrances with moderate traffic
• Light-commercial sites with low to medium duty cycles
• Retrofit projects to replace manual hinges with motorised actuation

Key specifications

• Type of gate: double-wing (two-leaf) swing gates
• Drive: electromechanical operator for each leaf
• Intended use: residential and light-commercial applications
• Compatibility: designed to integrate with standard safety photocells, remote controls and control panels
• Installation: floor- or surface-mounted actuator arrangement depending on gate configuration
• Operation: automated opening and closing with adjustable limits and stops

How to use

Mount each actuator to the gate leaf and supporting post or pillar following the manufacturer’s mounting recommendations and ensure secure mechanical connections. Connect the actuators to the control unit and to the building power supply using qualified electrical wiring practices. Configure travel limits, speed and force settings through the control panel or adjustment points so that both leaves move smoothly and stop at the correct positions. Install safety devices such as photocells and safety edges and wire them into the control circuit to prevent collisions. Commission the system with several open/close cycles and verify correct functioning, interlocks and manual release operation in case of power failure.

Usage recommendations

For reliable long-term operation, follow scheduled maintenance: clean and lubricate mechanical linkages, check mounting bolts and electrical connections periodically, and test safety devices regularly. Use compatible FAAC or equivalent accessories for controls and safety to maintain conformity with relevant local regulations and to ensure safe gate operation.
