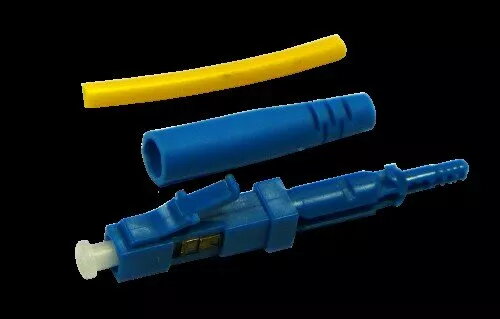

Fiber optic connector LC AD-FAST-LC single‑mode

LC AD-FAST-LC single‑mode is a fiber optic LC connector engineered for single‑mode fiber links. It adopts the compact LC form factor with a push‑pull mating mechanism and is intended for use in telecommunications, data centers and network equipment where space efficiency and reliable optical performance are required. The connector is suitable for terminating single‑mode optical fibers and integrates into standard LC duplex/single configurations to provide stable low‑loss connections.

Advantages

The LC AD-FAST-LC single‑mode connector offers a compact footprint that saves panel and patching space while maintaining consistent optical performance. Its push‑pull design enables quick insertion and removal without additional tools, and the precision ferrule alignment reduces insertion loss and back reflection. The connector is built for repeated mating cycles and provides mechanical stability for fixed and semi-permanent installations.

Suitable for

• Single‑mode fiber patch panels and wall outlets
• Telecommunications backbone and long‑reach links
• Data center interconnects and fiber management systems
• Network equipment ports requiring LC single‑mode termination
• Field and laboratory fiber termination where compact LC form factor is preferred

Key specifications

• Connector type: LC (small form factor)
• Fiber mode: single‑mode
• Mating mechanism: push‑pull
• Ferrule material: precision ceramic (typical for single‑mode performance)
• Typical insertion loss: low (designed for single‑mode links) — exact values depend on mating conditions
• Return loss: high return loss performance suitable for single‑mode applications
• Durability: designed for multiple mating cycles
• Compatibility: standard LC receptacles and adapters

How to use

Prepare the single‑mode fiber according to standard termination procedures for LC connectors, including stripping, cleaving and cleaning the fiber endface. Insert the prepared fiber into the connector housing until the ferrule seats fully, then engage the push‑pull latch into the LC receptacle to establish the optical connection. Verify the connection by measuring insertion loss and return loss with appropriate test equipment. For field terminations or pre‑assembled pigtails, follow the manufacturer's assembly or polishing instructions where applicable.

Usage recommendations

Handle the connector endface with care and always use lint‑free wipes and approved alcohol for cleaning. Avoid touching or scratching the ferrule endface; store unused connectors with dust caps fitted. When installing in patch panels or high‑density panels, ensure proper bend radius control of single‑mode fiber to maintain optical performance. For critical links, perform and record insertion loss and return loss measurements after installation.
