Power Supply Unit FSP Twins PRO 500W

Name: Power Supply Unit FSP Twins PPA5008601
Brand: Fortron
SKU: 11448719
Price: 434.49 EUR
Availability: OutOfStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Power Supply Unit FSP Twins PRO 500W 20+4 pin ATX PS/2 Black

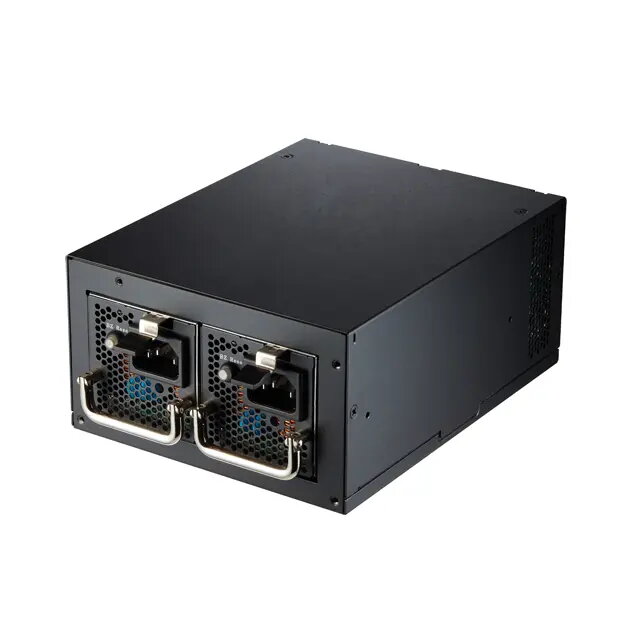

Power Supply Unit FSP Twins PRO 500W Photo 1

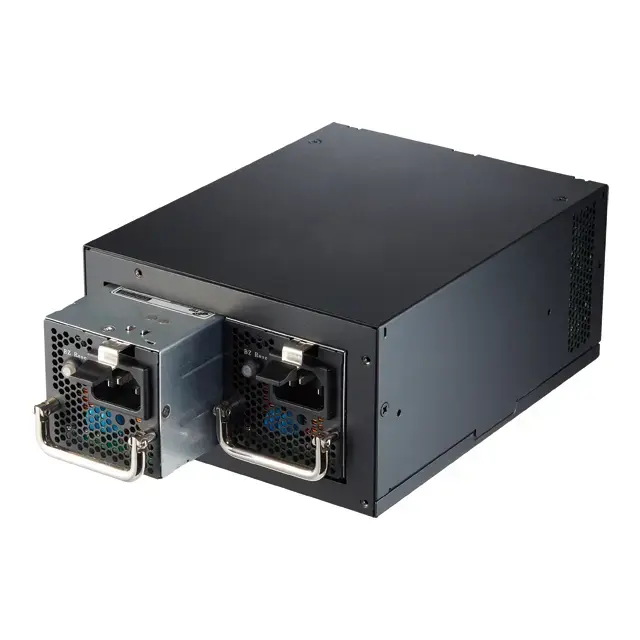

Power Supply Unit FSP Twins PRO 500W Photo 2

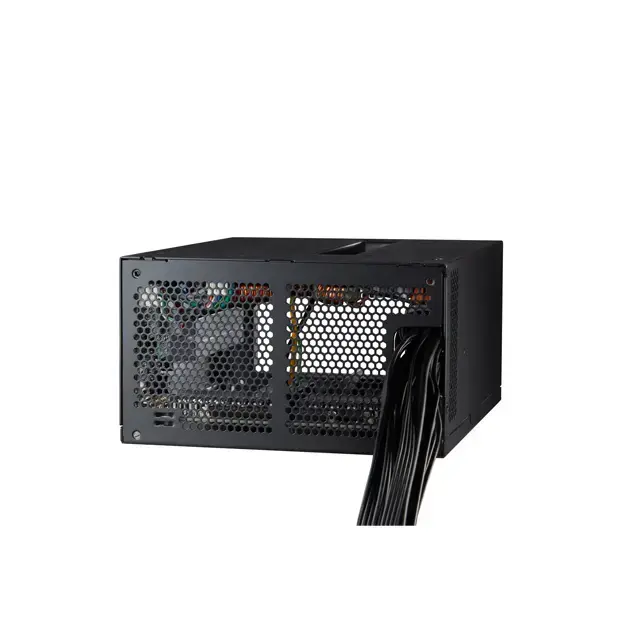

Power Supply Unit FSP Twins PRO 500W Photo 3

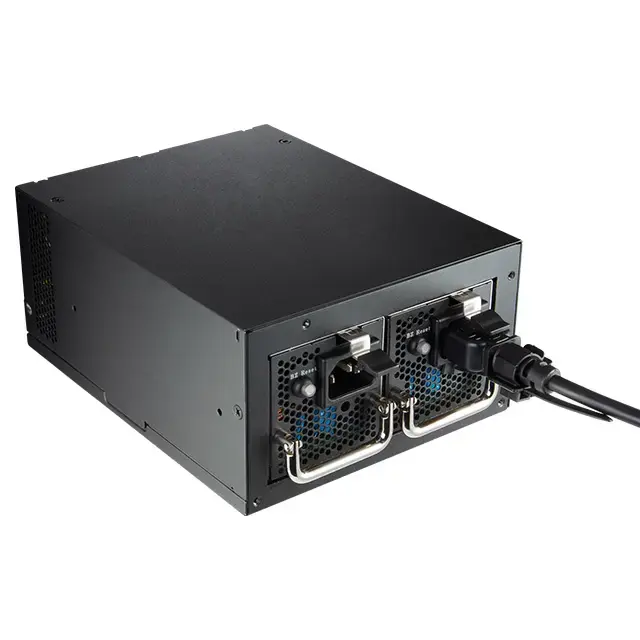

Power Supply Unit FSP Twins PRO 500W Photo 4

Short description

The FSP Twins PRO 500W power supply unit features a 20+4 pin ATX connector, 80 PLUS Gold certification, and a total power output of 500W. It operates on an AC input voltage of 100-240V and frequency of 50-60Hz. Designed for server use, it includes two 4 cm fans for efficient cooling and comes with essential cables like CPU, PCIe, and SATA.

Warranty: 2 Years

SKU: 11448719

Manufacturer: Fortron

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Power Supply Unit FSP Twins PRO 500W 20+4 pin ATX PS/2 Black is a redundant dual-module PSU designed for standard ATX or PS/2 chassis. It delivers a combined 500W output, supports a wide AC input range of 100–240V at 50–60Hz, and features an 80 PLUS Gold efficiency rating. The unit includes common connector types such as a 20+4 pin ATX, plus CPU, PCIe and SATA cables, and is intended for server-class applications including home, mail and web servers where continuous operation and hot-swap capability are important.

Advantages

The Twins PRO design uses two hot-swappable power modules that share the load and provide redundancy: if one module fails, the other immediately takes over to prevent system downtime. The 80 PLUS Gold certification ensures higher energy efficiency and lower heat generation under typical loads. Built-in features such as a power cord locking device and a black ribbon cable layout improve operational stability and cable management while supporting longer component life. Two 4 cm fans provide active cooling for reliable thermal control in compact server environments. The unit can also be monitored via a USB header when used with compatible monitoring software.

Suitable for

Home cloud servers and NAS devices
Mail servers and lightweight mail routing systems
Small to medium-sized enterprise (SME) web servers
Compact ATX or PS/2 chassis requiring redundant power

Key specifications

Total power output: 500W (redundant dual-module configuration)
Efficiency rating: 80 PLUS Gold
AC input: 100–240V, 50–60Hz
Main connector: 20+4 pin ATX
Additional connectors: CPU, PCIe, SATA cables included
Cooling: two 4 cm fans
Form factor: ATX / PS/2 compatible redundant module design (no front-end bracket required)
Color: Black

How to use

Install the Twins PRO modules into a compatible ATX or PS/2 chassis following the chassis manufacturer’s instructions. Connect the 20+4 pin ATX cable to the motherboard and attach CPU, PCIe and SATA cables to the corresponding components. Ensure the AC mains connection uses the power cord locking device to prevent accidental disconnection. If desired, connect the PSU’s USB header to a monitoring-capable motherboard or controller and configure compatible software for real-time status and alerts. Hot-swap replacement of a failed module can be performed while the system remains powered by the remaining module; follow static-safety and hot-swap guidance from the chassis and module documentation.

Usage recommendations

Use the FSP Twins PRO 500W in server or always-on environments where uninterrupted operation is required. Maintain adequate airflow in the chassis, keep intake/exhaust paths clear, and monitor module status with compatible software if continuous logging or temperature alerts are necessary. Replace a failed module promptly with a compatible unit and follow standard hot-swap procedures to preserve redundancy.

Specifications

Product colour:: Black

All features

Bearing technology:: DBB
Number of fans:: 2 fan(s)
Motherboard power connector:: 20+4 pin ATX
Number of SATA power connectors:: 6
CPU power connector (4+4 pin):: Yes
PCI Express power connectors (6+2 pin):: 4
80 PLUS certification:: 80 PLUS Gold
Power Factor Correction (PFC) type:: Active
Combined power (+3.3V):: 130 W
Combined power (+5V):: 130 W
Max output current (+3.3V):: 20 A
Max output current (+12V):: 41.76 A
Max output current (+5V):: 20 A
Max output current (-12V):: 0.5 A
Max output current (+5Vsb):: 3 A
AC input frequency:: 50 - 60
AC input voltage:: 100 - 240
Cabling type:: Non-Modular
Total power:: 500 W
Power supply unit (PSU) form factor:: PS/2

Performance

Purpose:: Server
Power protection features:: Over current, Under voltage, Short circuit, Overheating, Over voltage, Over power
Fan diameter:: 40 mm

Power

Input current:: 8-4
Efficiency:: 90 %

Design

Product colour:: Black

Technical details

Peripheral (Molex) power connectors (4-pin):: 2

Weight & dimensions

Height:: 190 mm
Width:: 86 mm
Depth:: 150 mm

Logistics data

Harmonized System (HS) code:: 84733020

Packaging content

Cables included:: CPU, PCIe, SATA
