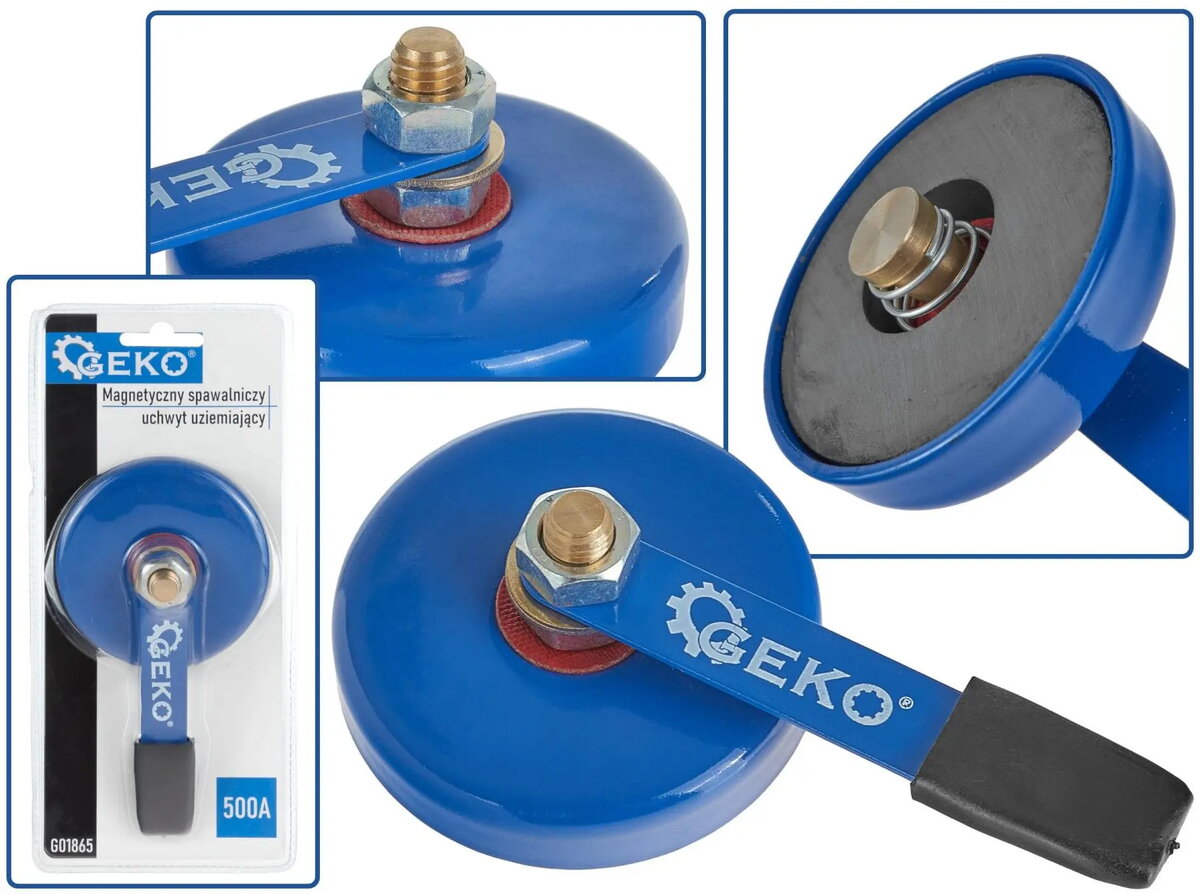

Grounding Welding Magnetic Clamp GEKO 500A for 12V/24V Systems

Magnetic grounding welding clamp GEKO 500A for 12V/24V systems is a heavy-duty earthing clamp designed to provide a stable, low-resistance ground connection for welding operations on vehicles and metal structures. The clamp integrates a strong magnetic base for secure attachment to ferrous surfaces and a conductive jaw designed to maintain consistent contact during welding. Engineered for use with both 12V and 24V electrical systems, this GEKO grounding clamp helps ensure reliable current return and reduces the risk of poor weld quality caused by intermittent grounding.

Advantages

The clamp offers a rated capacity of 500A and a magnetic base that grips ferrous metal surfaces to minimize movement during welding. Its robust construction and conductive contact surfaces are intended to deliver low electrical resistance and stable grounding under typical automotive and workshop conditions. The design supports repeated attachment and removal while maintaining electrical continuity and mechanical durability.

Suitable for

• Automotive welding on chassis, body panels and frames
• Workshop and maintenance welding where a reliable ground is required
• On-site repairs that need a temporary yet stable earthing point
• Welding tasks on steel structures and ferrous metal components

Key specifications

• Rated current capacity: 500 A
• Compatibility: designed for 12 V and 24 V systems
• Magnetic base for secure attachment to ferrous surfaces
• Conductive jaw/contact surfaces for low-resistance grounding
• Construction: durable metal body suitable for workshop use

How to use

Select a clean, paint- and rust-free ferrous surface near the welding area and attach the magnetic base so the conductive jaw makes direct metal-to-metal contact. Ensure that the clamp is placed away from the welding arc path to avoid heat damage to the clamp or cable. Connect the clamp to the negative terminal or ground lead of the welding machine, and verify secure mechanical and electrical contact before starting welding operations. After finishing work, allow any heated components to cool and remove the clamp by gripping the insulated handle or body as intended.

Usage recommendations

For reliable performance, keep contact surfaces free of paint, heavy rust and dirt; inspect the clamp regularly for wear or damage to the contact surfaces and magnetic base. Use on appropriate ferrous metals only and avoid placing the clamp close to sensitive electronics or non-ferrous bodywork without proper isolation. Store in a dry place to prevent corrosion and check connections before each use.
