Rack mount panel Gembird Cablexpert 1U, black, 89×33×483 mm, RoHS/ISO9002/UL

Gembird Cablexpert 1U is a 24-port rack mount panel designed for standard 19" server racks and cabinets. With a 1U height and compact external dimensions of 89×33×483 mm, the panel provides a high-density, space-saving solution for structured cabling in data cabinets and telecom installations. The panel features 110-type termination and supports both EIA/TIA T568B and T568A wiring configurations, and is finished in black electrostatic powder-coated steel. The product is certified to RoHS, ISO 9002 and UL standards, offering recognized compliance for professional installations.

Advantages

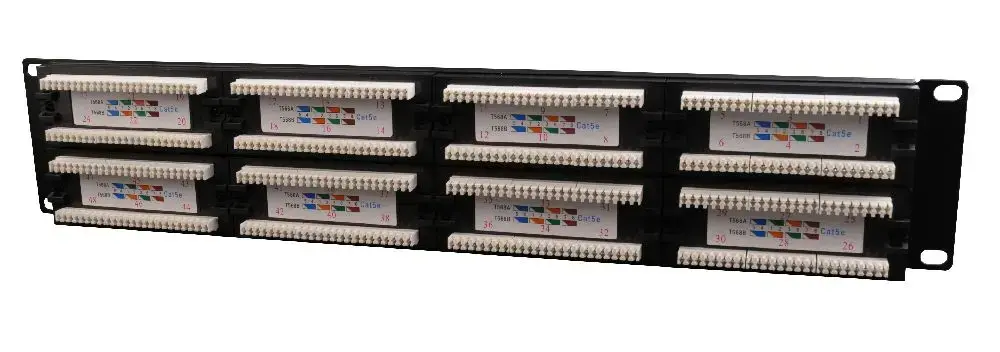

The metal chassis and black powder coating ensure mechanical strength and resistance to wear while maintaining a professional appearance in server rooms. Fifty-micron gold-plated contacts improve conductivity and corrosion resistance at connection points. The rear cover includes a wire management bar that helps preserve correct patch cable bend radius and provides strain relief. A write-on designation label with a clear holder on the front simplifies port identification.

Suitable for

• 19" server racks and network cabinets requiring a 1U patch panel
• High-density patching in small to medium data closets and telecom cabinets
• Structured cabling installations using 110-type termination and T568B/A wiring
• Environments where clear port labelling and cable strain relief are needed

Key specifications

• Ports: 24
• Form factor: 1U rack mount panel
• Termination: 110-type
• Wiring standard: EIA/TIA T568B and T568A compatible
• Contact plating: 50 µm gold
• Material and finish: steel with black electrostatic powder coating
• External dimensions: 89 × 33 × 483 mm
• Cable entry: supports top, bottom or side cable entry
• Includes rear wire management bar and front write-on designation label with clear holder
• Certifications: RoHS, ISO 9002, UL

How to use

Mount the panel into any standard 19" rack or cabinet at the desired 1U position using appropriate rack screws. Terminate horizontal cabling to the 110-type blocks according to the chosen T568B or T568A wiring scheme, ensuring each conductor is fully seated. Route patch cables through the rear wire management bar to maintain bend radius and provide strain relief, and use the front label holder to mark port assignments for easy identification. Verify continuity and correct wiring with a cable tester before placing the panel into production service.

Usage recommendations

For reliable long-term performance, use compatible patch cords and avoid sharp bends near termination points; secure cables in the provided wire management bar to prevent strain on terminations. Follow EIA/TIA wiring practices and verify connections with a tester after installation.
