Fibre optic cable Alcasa LW-902LS 2m LC SC Yellow

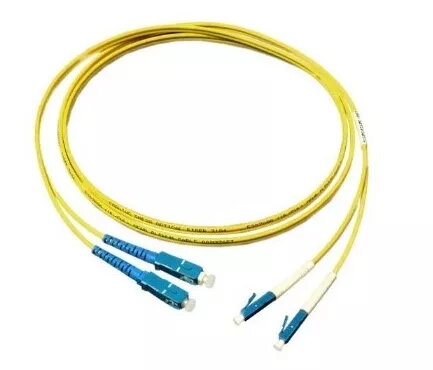

The Alcasa LW-902LS 2m LC SC Yellow is a single-mode OS2 fibre optic patch cable designed for reliable, high-speed point-to-point connections. Measuring 2 metres in length and terminated with an LC connector on one end and an SC connector on the other, this cable uses a 9 µm core to support long-distance, low-loss optical transmission and full duplex data links. Its yellow jacket and standard connector types make identification and installation straightforward in structured cabling and data centre environments.

Advantages

This fibre optic cable provides low insertion loss and stable optical performance consistent with OS2 single-mode specifications. The LC and SC connector combination supports compatibility with a wide range of active equipment and patch panels. At 2 metres, the cable minimizes excess slack in short interconnect runs while preserving bend tolerance and mechanical durability for frequent handling and reconfiguration. The yellow jacket offers visual distinction for single-mode lines and easier route tracing in racks and conduits.

Suitable for

• Interconnect between switches, transceivers and patch panels in data centres
• Short rack-to-rack optical links in enterprise networks
• Connections between optical equipment using LC and SC interfaces
• Telecommunications and network infrastructure installations requiring single-mode OS2 cabling

Key specifications

• Fibre type: single-mode OS2
• Core/cladding diameter: 9 µm / 125 µm
• Connector A: LC (single-mode)
• Connector B: SC (single-mode)
• Length: 2 metres
• Jacket colour: yellow
• Polish type: factory polished connectors for low reflectance
• Mode: simplex with full duplex support when paired appropriately

How to use

Route the Alcasa LW-902LS cable between the two devices ensuring the LC and SC connectors match the corresponding ports. Before insertion, inspect connector end-faces for contamination and clean with suitable fibre cleaning tools if necessary to avoid increased insertion loss. Align the connector keying and push until the connector latches into place; to remove, depress the latch and pull straight out. Avoid tight bends and kinks during installation and secure the cable with appropriate organisers to prevent strain on the connectors.

Usage recommendations

Store and handle the cable in a dry, dust-free environment. Use dust caps when connectors are not in use, perform end-face cleaning before mating, and respect minimum bend radius guidelines to maintain optical performance and longevity.
