Full duplex:
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
-
Yes
-
Operating temperature (T-T):
The minimum and maximum temperatures at which the product can be safely operated.
-
-40 - 85
-
Cable length:
How long the cable is.
-
10 m
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
Lime, Green
-

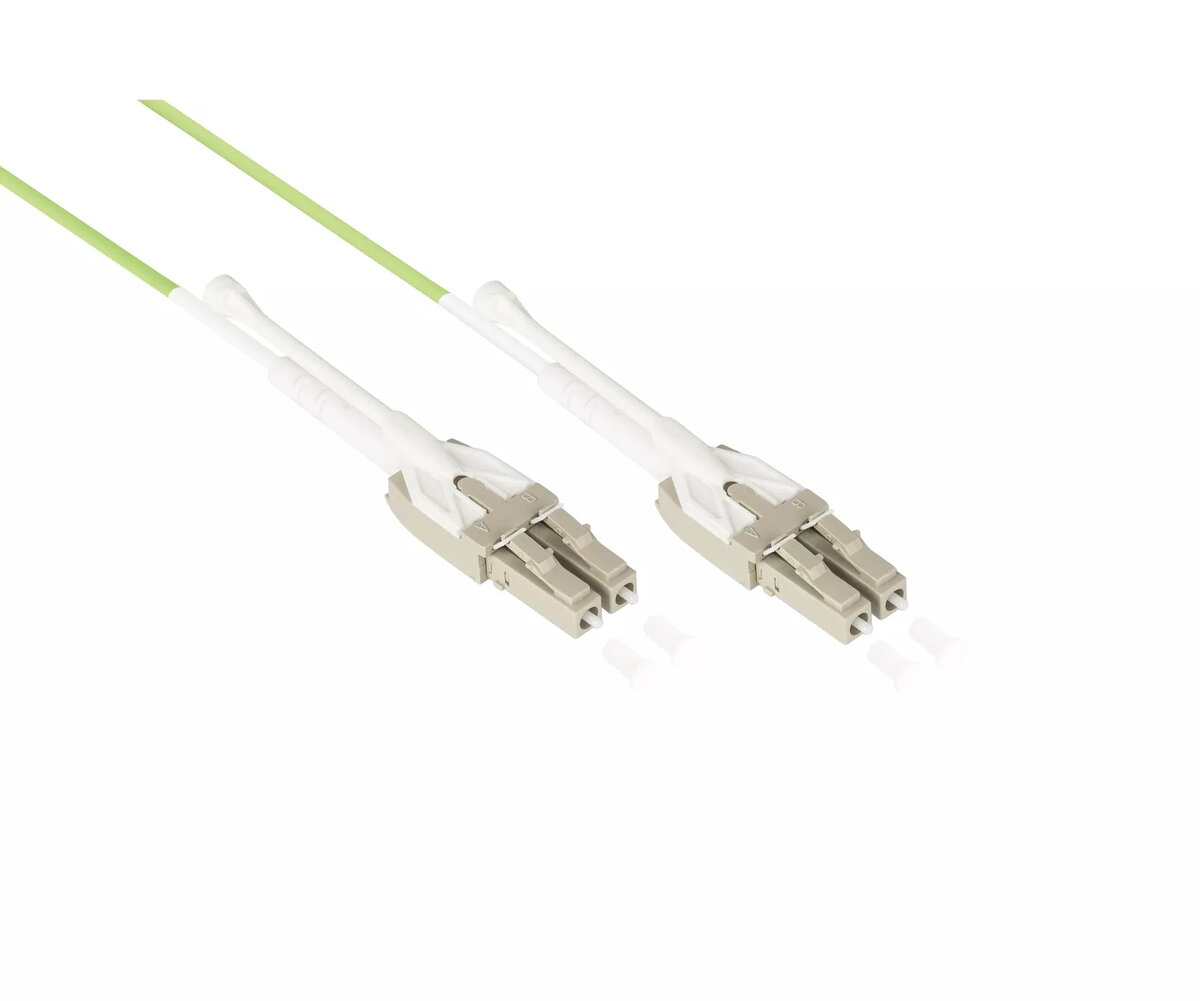

Connector 1:
This is the first connector in the device.
-
LC
-
Connector 2:
This is the second connector in the device.
-
LC
-
Cable diameter:
The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
-
2 mm
-
Ethernet interface type:
-
25 Gigabit Ethernet
-
Fiber mode structure:
-
Multi-mode
-
Core diameter:
The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.
-
50 µm
-
Cladding diameter:
The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.
-
125 µm
-
Jacket material:
-
Low smoke zero halogen (LSZH)
-
Connector 1 gender:
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
-
Male
-
Connector 2 gender:
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
-
Male
-
Bending radius:
-
7.5 mm
-
Wavelengths supported:
-
950, 850
-
Fibre optic type:
The standardised properties of the fiber optic cable.
-
OM5
-
Connector polish type:
-
UPC
-
Test protocol included:
-
Yes
