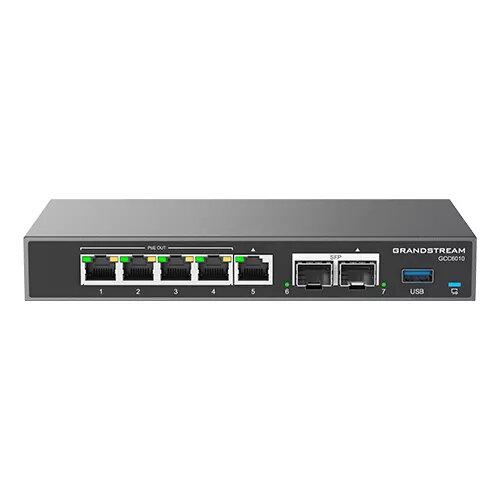

Network Switch Grandstream GCC6010

Power source: What is providing power for the product e.g. mains electricity.

DC/PoE

SSH/SSL support:

Yes

10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.

No

Power supply included: There is a power supply with this product.

Yes

Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).

5

Total Power over Ethernet (PoE) budget:

36 W

Traffic classification:

Yes

ARP inspection:

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

1

Cloud-managed:

Yes

Packaging data

Package weight: Weight of the packaged product.

835 g

Package height: The distance from the top to the bottom of the packaging.

53 mm

Package depth: The distance from the front to the back of the packaging.

130 mm

Package width: The distance from one side of the packaging to the other.

300 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.52 kg

Height: The measurement of the product from head to foot or from base to top.

29 mm

Depth: The distance from the front to the back of something.

101 mm

Width: The measurement or extent of something from side to side.

191 mm

Operational conditions

Operating relative humidity (H-H):

5 - 95

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-30 - 60

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 45

Power

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Yes

AC input frequency:

50/60

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100 - 240

Design

LED indicators:

Status, PoE

Wall mountable: The product can be mounted on (attached to ) a wall.

Yes

Rack mounting: The type of mounting that can position devices in a shelving system (rack).

No

Housing material: What the casing of the product is made of.

Metal

Product colour: The colour e.g. red, blue, green, black, white.

Silver, Black

Features

Certification:

FCC, CE, RCM, IC

Compatible memory cards: Types of memory cards which can be used with this product.

MicroSD (TransFlash)

Internal memory: The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.

2048 MB

Flash memory:

32768 MB

Packaging content

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Yes

Security

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

SNMP, SSH

Protocols

Supported network protocols: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.

IPv4, IPv6, IEEE802.1q ,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab

Ports & interfaces

Installed SFP modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device.

2

Power over Ethernet (PoE) ports quantity:

4

Management features

Reset button:

Yes

Quality of Service (QoS) support:

Yes

Network

VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.

Yes

Throughput:

1 Gbit/s

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3u, IEEE 802.3at, IEEE 802.3af, IEEE 802.3, IEEE 802.1x
