Remote Power Controller Güde 2302-1

Name: Remote Power Controller Güde 2302-1 23021
Brand: gude
SKU: 3299875
Price: 465.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Remote Power Controller Güde 2302-1 Black

Remote Power Controller Güde 2302-1 Photo 1

Remote Power Controller Güde 2302-1 Photo 2

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Güde 2302-1 remote power controller features a maximum output power of 2 W and supports up to 16 A current. Compatible with Windows and Linux operating systems, it measures 105 mm in width, 90 mm in depth, and 70 mm in height. Made in Germany, this reliable device is perfect for managing power remotely.

Available for order: 19 pcs.

Warranty: 2 Years

SKU: 3299875

Manufacturer: gude

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.30 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

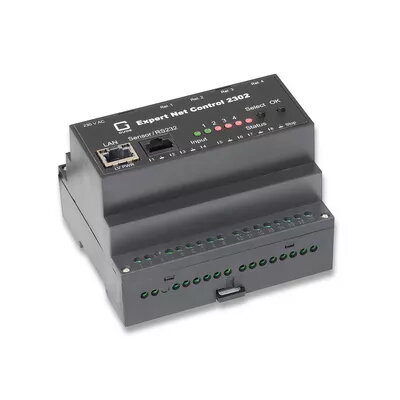

Expert Net Control 2302-1 (Güde 2302-1 Black) is a networked I/O controller for remote power and sensor management over TCP/IP. The compact device provides four individually switchable potential-free relay outputs and eight passive signal inputs for monitoring normally-open (NO) and normally-closed (NC) contacts, such as door contacts or smoke detectors. An RJ45 sensor interface allows connection of optional sensors for ambient temperature, humidity, air pressure and liquid leak detection. Communication supports Telnet, RADIUS and Modbus TCP, and security features include SNMPv3, SSL and IPv6 support.

Advantages

The unit offers flexible remote control and monitoring via standard network protocols, multiple relay outputs for independent switching and a variety of sensor expansion options through the RJ45 interface. Security and compatibility are enhanced by support for SNMPv3, SSL and IPv6, while the compact German-made design provides straightforward integration into Windows and Linux environments.

Suitable for (tasks / use cases)

Remote switching of equipment and power lines using potential-free relays
Monitoring door contacts, smoke detectors and other NO/NC sensors
Environmental monitoring with temperature, humidity, air pressure and leak sensors
Integration into network management systems via Telnet, Modbus TCP or SNMPv3

Key specifications

Model: Expert Net Control / Güde 2302-1 Black (MPN: 23021, EAN: 4250493100510)
Outputs: 4 potential-free relay outputs, individually switchable
Inputs: 8 passive signal inputs for NO and NC devices
Sensor interface: RJ45 for optional temperature, humidity, air pressure and leak sensors
Network: TCP/IP with Telnet, RADIUS, Modbus TCP; supports SNMPv3, SSL, IPv6
Compatibility: Windows and Linux
Dimensions: 105 × 90 × 70 mm (W × D × H)
Maximum output power: 2 W; maximum current support: up to 16 A
Made in Germany

How to use

Install the unit in a suitable network location and connect the relay outputs and signal inputs to the devices you wish to control or monitor. Attach optional sensors to the RJ45 sensor interface when environmental monitoring is required. Configure network settings and user access via the built-in TCP/IP interfaces, then control relays and read inputs over Telnet, Modbus TCP or through SNMPv3-compatible management tools. Ensure the device is connected to a system running supported operating systems (Windows or Linux) for any required local configuration utilities.

Usage recommendations

For reliable operation, place the controller in a dry, ventilated area and use shielded cables for sensor and input wiring where electromagnetic interference is possible. Secure network access with SSL and SNMPv3 and verify sensor compatibility before installation.

Specifications

Weight:: 0.3 kg
Product colour:: Black

All features

Storage temperature (T-T):: -20 - 70
Ethernet LAN (RJ-45) ports:: 1
Compatible operating systems:: Windows, Linux
RS-232 ports:: 1
Ethernet LAN data rates:: 10, 100
Output power (max):: 2 W

Features

Operating relative humidity (H-H):: 0 - 95
Operating temperature (T-T):: 0 - 50

Power

Input voltage:: 230
Maximum current:: 16 A

Design

Product colour:: Black
On/off switch:: Yes

Weight & dimensions

Weight:: 0.3 kg
Height:: 70 mm
Width:: 105 mm
Depth:: 90 mm

Logistics data

Country of origin:: Germany
