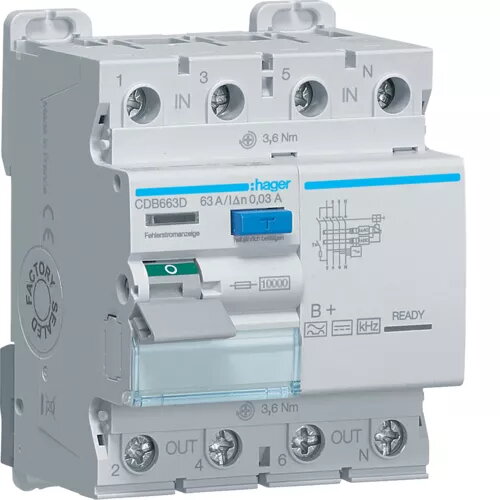

Residual-current device Hager CDB663D

Name: Residual-current device Hager CDB663D CDB663D
Brand: Hager
SKU: 3943912
Price: 668.49 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Stāvoklis: Demo

Cheaper than new!

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Hager CDB663D is a 4-module residual-current device with a rated current of 63 A and a breaking capacity of 800 A. It operates at an input frequency of 50 Hz and has a total power loss of 9.29 W. This Type B+ device ensures reliable protection against electrical faults, making it ideal for various applications. Its compact dimensions (72 mm width, 70 mm depth, 85 mm height) allow for easy installation in electrical panels.

Available at price 668.49 €: 1 pcs.

Total available for order: 49 pcs.

Warranty: 2 Years

Stāvoklis: Demo

Demo - Showcase sample. Opened packaging. There may be minor minor scratches.

SKU: 3943912

Manufacturer: Hager

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

13.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

13.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

16.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

16.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 23.26 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Hager CDB663D is a 4-module residual-current device designed to provide reliable protection against earth leakage and certain types of fault currents. With a rated current of 63 A and a breaking capacity of 800 A, this Type B+ RCD is built for installations that require sensitivity to both AC and smooth DC fault components. Its compact housing (72 mm wide, 70 mm deep, 85 mm high) fits standard distribution boards and minimizes space consumption while operating at the standard mains frequency of 50 Hz and a total power loss of 9.29 W.

Advantages

The device offers selective protection for circuits where both AC and pulsating or smooth DC leakage currents may occur, reducing the risk of undetected faults. Its 63 A rated current and 800 A breaking capacity provide secure disconnection under fault conditions, while the Type B+ characteristic increases compatibility with modern equipment and power electronic loads. The compact 4-module form factor and modest power loss make it suitable for retrofit and new installations where panel space and thermal performance are considerations.

Suitable for

Residential and commercial electrical distribution panels
Circuit protection with mixed loads including power electronics and variable-speed drives
Applications requiring detection of AC, pulsating DC and smooth DC residual currents
Installation where compact 4-module devices are needed

Key specifications

Type: Residual-current device, Type B+
Number of modules: 4
Rated current: 63 A
Breaking capacity: 800 A
Input frequency: 50 Hz
Total power loss: 9.29 W
Dimensions (W × D × H): 72 mm × 70 mm × 85 mm

How to use

Install the Hager CDB663D in a suitable distribution board according to applicable electrical codes and wiring diagrams. Ensure connections are made to appropriate line and neutral terminals with correct torque settings and that upstream protective devices are coordinated. Verify that the device rating (63 A) and breaking capacity (800 A) are compatible with the connected circuits. After installation, perform standard commissioning tests to confirm correct operation and residual-current sensitivity before placing the circuit into service.

Usage recommendations

For safe and compliant operation, have installation and testing performed by a qualified electrician. Coordinate the RCD with upstream and downstream protective devices, and routinely test the device per local regulations to ensure continued sensitivity to leakage currents.

All features

Breaking capacity:: 800 A
Circuit breaker type:: Residual-current device
Total power loss:: 9.29 W
Residual-current type:: Type B+

Power

Rated current:: 63 A
Input frequency:: 50

Features

Modules quantity (max):: 4 module(s)
Number of poles:: 4

Weight & dimensions

Height:: 85 mm
Width:: 72 mm
Depth:: 70 mm

Design

Certification:: EN 61008-1, VDE 0664-400
