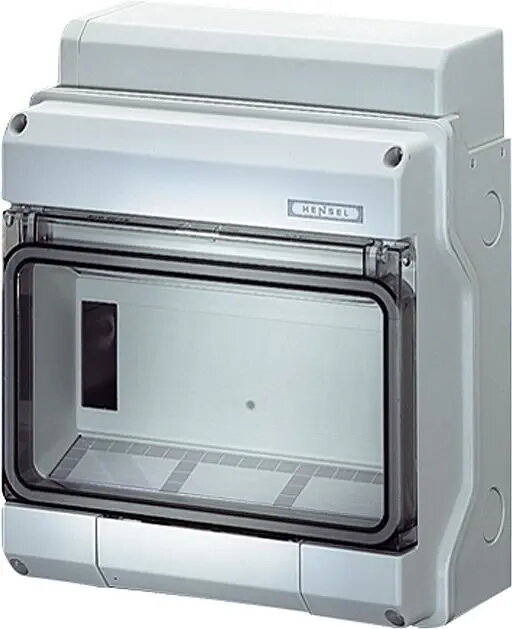

Hensel KV 1609 Surface-Mounted Modular Distribution Board, 1 x 9 Modules, IP54

The Hensel KV 1609 is a robust surface-mounted modular distribution board engineered to house up to 9 electrical modules. Designed for durability and safety, this enclosure ensures that your circuit breakers and DIN-rail mounted components are securely organized and protected. With its IP54 rating, the unit offers effective resistance against dust ingress and water splashes, providing a reliable solution for electrical distribution in diverse environments.

Advantages

This distribution board stands out due to its high-quality construction and practical design, which simplifies the installation of electrical components. The enclosure is built to withstand challenging conditions, ensuring long-term operational reliability. Its compact form factor allows for efficient space utilization while maintaining easy access to the internal modules for maintenance or configuration adjustments. The neutral aesthetic and functional design make it a versatile choice for professional electrical setups.

Suitable for

• Residential electrical distribution systems
• Commercial building installations
• Sheltered outdoor areas requiring moisture protection
• Workshops and garages
• Organizing DIN-rail mounted circuit breakers and RCDs

When it may not be suitable

This distribution board is not intended for use in environments subject to direct heavy rainfall or complete water submersion, as it is rated for IP54 protection only. It is also not suitable for applications requiring more than 9 modules, as the internal capacity is strictly limited to a single row of 9 units.

Key specifications

• Capacity: 9 modules
• Mounting type: Surface-mounted
• Protection rating: IP54
• Material: High-quality thermoplastic
• Compatibility: DIN-rail mounted components

How to use

To install the Hensel KV 1609, first ensure the power supply is completely disconnected. Secure the base of the enclosure to a flat, stable surface using appropriate mounting hardware. Once the base is fixed, snap your DIN-rail components into place. Connect the wiring according to local electrical safety standards, ensuring all terminals are tightened correctly. Finally, attach the cover securely to maintain the IP54 seal, verifying that all cable entries are properly sealed to prevent moisture or dust ingress.

What to consider before purchase

• Verify that the wall surface is flat and capable of supporting the weight of the board and components.
• Ensure the 9-module capacity meets your current and future circuit requirements.
• Check that the IP54 rating is sufficient for your specific installation environment.
• Confirm that all cable glands used for entry maintain the required protection level.

Usage recommendations

Regularly inspect the enclosure cover to ensure it is tightly closed and that the seals remain intact to preserve the IP54 protection rating over time.
