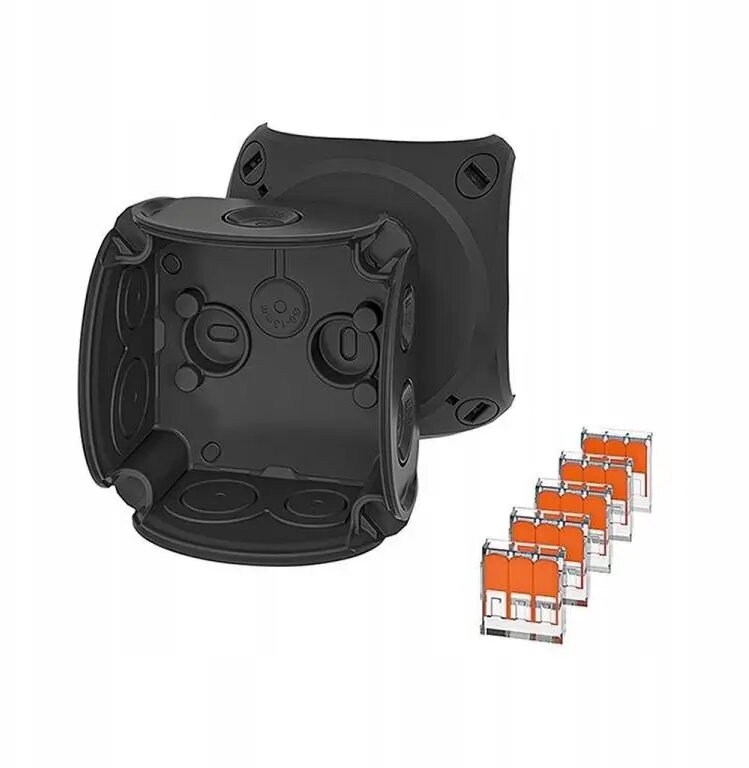

Hensel DK 0102 XZ Junction Box with Membrane Glands and 5 Terminals, IP66, Black

The Hensel DK 0102 XZ junction box is a robust solution for secure electrical installations, engineered to provide reliable protection for cable connections in demanding environments. This enclosure is constructed from high-quality materials, ensuring long-term durability and resistance to environmental stressors. With its integrated membrane glands and a 5-terminal configuration, it facilitates efficient cable entry and organized wiring, making it a dependable choice for both industrial and outdoor electrical projects.

Advantages

This junction box stands out due to its high IP66 protection rating, which guarantees complete protection against dust ingress and powerful water jets. The inclusion of integrated membrane glands simplifies the installation process by allowing for quick and tool-free cable entry while maintaining a secure seal. Its compact design and durable construction ensure that internal connections remain protected from moisture, dirt, and mechanical impact, thereby extending the lifespan of the electrical system.

Suitable for

• Outdoor electrical installations exposed to weather
• Industrial facilities requiring dust-tight enclosures
• Protection of cable junctions in damp or wet locations
• General electrical wiring management in commercial buildings

When it may not be suitable

This junction box is not intended for use in environments subject to permanent submersion in water or high-pressure underwater conditions. It is also not suitable for applications requiring explosion-proof certification or specialized chemical resistance beyond standard industrial requirements.

Key specifications

• Protection rating: IP66
• Dimensions: 84 x 84 x 55 mm
• Color: Black
• Terminals: 5-pole configuration
• Cable entry: Integrated membrane glands

How to use

To install the Hensel DK 0102 XZ, mount the enclosure to a stable surface using the provided mounting points. Insert the cables through the integrated membrane glands by pushing them through the flexible material, which will automatically seal around the cable sheath. Connect the wires to the internal 5-pole terminal block, ensuring all connections are tightened securely. Finally, close the lid firmly to ensure the IP66 seal is maintained.

What to consider before purchase

• Verify that the cable diameter is compatible with the membrane glands
• Ensure the mounting surface is flat to maintain the integrity of the seal
• Check if the 5-terminal capacity meets your specific wiring requirements

Usage recommendations

For optimal performance, ensure that the lid is fully closed and that the membrane glands are not damaged during cable insertion. Periodically inspect the enclosure for signs of physical damage or degradation if installed in harsh outdoor conditions.
