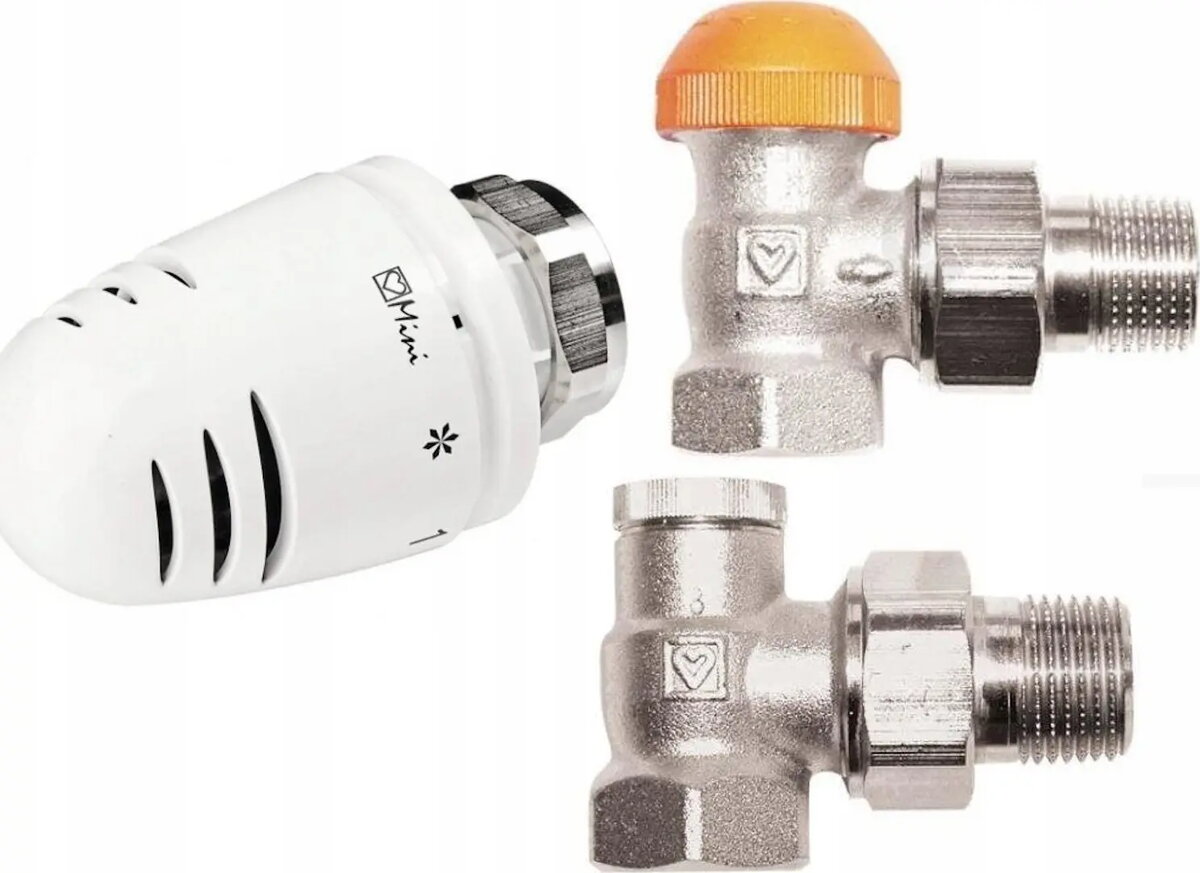

Angle radiator connection set Herz V762468 for 1/2" with supply and return valve head

The Angle radiator connection set Herz V762468 for 1/2" with supply and return valve head is a compact fitting kit designed to connect panel and column radiators to central heating systems. The set contains an angled supply and return valve head that fits standard 1/2" threaded radiator connections and allows for regulated flow and shut-off. Its angled configuration reduces protrusion from the wall and simplifies installation where space is limited.

Advantages

This connection set offers a compact angled design that minimizes visible piping and improves accessibility for maintenance. The included supply and return valve head provide reliable shut-off and flow control, enabling isolation of the radiator without draining the entire heating circuit. Components are manufactured to suit conventional residential and light commercial heating installations and are compatible with standard 1/2" radiator fittings.

Suitable for

• Connecting panel and column radiators to central heating systems
• Installations with limited space behind or beside radiators
• Projects requiring straightforward shut-off and flow regulation at the radiator

Key specifications

• Connection type: angled supply and return valve head for radiator connection
• Pipe/thread size compatibility: 1/2" threaded radiator fittings
• Functionality: integrated shut-off and flow control on both supply and return
• Application: central heating systems for residential and light commercial use
• Design: compact, wall-near angled configuration to reduce protrusion

How to use

Shut down and depressurize the heating circuit before starting work. Remove any existing fittings, then mount the angled supply and return valve heads onto the radiator’s 1/2" threaded inlets. Ensure all sealing surfaces and threads are clean and use appropriate thread sealant or PTFE tape according to local practices. Tighten connections to the recommended torque for the radiator fittings, then connect the supply and return pipes. After refilling the system and venting air from the radiator, operate the valves to check for correct flow control and leak-free joints.

Usage recommendations

Use corrosion-resistant sealing materials and follow local plumbing codes. For systems with specific fluid types or additives consult system documentation; if in doubt, confirm compatibility with the installer or manufacturer. Periodically inspect valve joints for leaks and exercise the valves occasionally to prevent sticking.
