Managed Switch Hikvision DS-3E1309P-EI

Name: Managed Switch Hikvision DS-3E1309P-EI 301801788
Brand: Hikvision
SKU: 4155829
Price: 53.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Hikvision DS-3E1309P-EI is a managed L2 Fast Ethernet switch with 8 RJ-45 ports (10/100 Mbps) and PoE support. It features a switching capacity of 3.6 Gbit/s and a MAC address table with 16,000 entries. Compliant with IEEE networking standards, it operates on a 48V DC input voltage, making it ideal for powering devices over Ethernet. This switch is perfect for efficient network management and power delivery.

Available for order: 2 pcs.

Warranty: 2 Years

SKU: 4155829

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.35 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Hikvision DS-3E1309P-EI is a managed L2 Fast Ethernet switch with 8 RJ-45 ports (10/100 Mbps) and PoE support. It provides a switching capacity of 3.6 Gbit/s and a MAC address table of 16,000 entries, and accepts 48V DC input for powering PoE devices. The switch supports standard IEEE networking protocols and is intended for efficient network management and power delivery over Ethernet.

Advantages

The managed design enables configuration and monitoring for improved network control. Eight Fast Ethernet ports with PoE simplify deployment of powered devices without separate power supplies. Compliance with IEEE standards ensures interoperability with common network equipment, and the 16,000-entry MAC table supports sizeable local networks for layer 2 switching.

Suitable for

Small office or retail networks requiring PoE for IP cameras, VoIP phones, or access points
Edge deployments where layer 2 managed switching and topology visibility are needed
Environments needing 48V DC PoE power delivery to connected devices

Key specifications

Switch type: Managed L2
Ports: 8 × RJ-45 Fast Ethernet (10/100 Mbps) with PoE
Switching capacity: 3.6 Gbit/s
MAC address table: 16,000 entries
Input voltage: 48V DC
Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3x
Colour: Grey
Weight: 0.35 kg

How to use

Mount the switch on a stable surface or rack as recommended by the manufacturer and connect the 48V DC power supply. Connect network devices to the RJ-45 ports; PoE-capable ports will supply power to compatible devices automatically when enabled. Use the management interface to configure VLANs, PoE settings, and other layer 2 parameters, and monitor device discovery and topology for network visibility.

Usage recommendations

Place the switch in a ventilated area with ambient temperatures within the device specifications. Verify PoE power budgets before connecting multiple powered devices and keep firmware updated to ensure compatibility and security.

Specifications

Switch type:: Managed
Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:: 8
Weight:: 0.35 kg
10G support:: No
Product colour:: Grey
Networking standards:: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

All features

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes
Power over Ethernet (PoE) ports quantity:: 8
Total Power over Ethernet (PoE) budget:: 110 W
Power over Ethernet (PoE) power per port:: 30 W

Management features

Switch layer:: L2
System event log:: Yes
Switch type:: Managed

Ports & interfaces

Gigabit Ethernet (copper) ports quantity:: 1
Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:: 8

Performance

Firmware upgradeable:: Yes
Fanless:: Yes

Power

Input current:: 2.5
DC input voltage:: 48
Power consumption (max):: 120 W

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: -10 - 55
Storage relative humidity (H-H):: 5 - 95

Weight & dimensions

Weight:: 0.35 kg
Height:: 27.6 mm
Width:: 170 mm
Depth:: 93.1 mm

Data transmission

MAC address table:: 16000 entries
Switching capacity:: 3.6 Gbit/s
Store-and-forward:: Yes
Forwarding rate:: 2.6784 Mpps

Network

Full duplex:: Yes
Networking standards:: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Flow control support:: Yes
Rate limiting:: Yes
Auto MDI/MDI-X:: Yes
10G support:: No

Design

LED indicators:: PoE, Power, Link
Product colour:: Grey
Housing material:: Metal

Hide Show all

Instructions

mmo_86066754_1633615345_5117_28134.pdf

hikvision-301801788-4155829.pdf

Description

Instructions

mmo_86066754_1633615345_5117_28134.pdf

hikvision-301801788-4155829.pdf

Machine translation. Load original

Reasons to buy

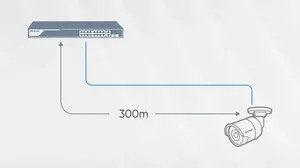

300-Meter Long Distance Transmission

With the Extend Mode on, the transmission distance can be increased to 300 meters. Even when the transmission distance reaches 300 meters, the video remains smooth and stable. 300-Meter Long Distance Transmission

VIP Port Transmission Priority

VIP ports enjoy higher priority and more stable transmission when the switch is overloaded. It is recommended to connect cameras in critical areas to VIP ports. VIP Port Transmission Priority

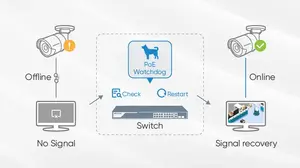

PoE Watchdog

The PoE watchdog can detect the status of connected devices and restart offline cameras automatically, reducing the need for manual maintenance.

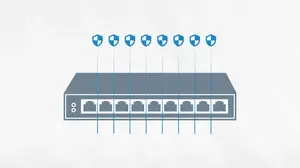

Easy Port Isolation

The port isolation function can virtually isolate ports from each other, preventing data leakage between ports and avoiding broadcast storms in case of mistaken connections. Easy Port Isolation

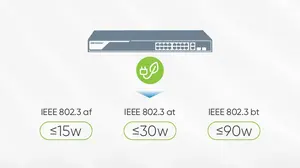

Higher PoE Power Budget

Hikvision PoE switches support IEEE 802.3 af/at/bt PoE standards and can flexibly match front-end devices according to their power requirements. Higher PoE Power Budget

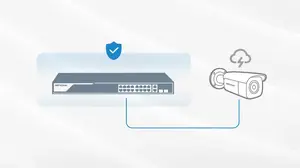

6 KV Surge Protection

Hikvision switches are designed with surge protection to safeguard cameras installed outdoors that are vulnerable to lightning strikes. 6 KV Surge Protection

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Managed Switch Hikvision DS-3E1309P-EI cost, and is it available for purchase?

The price is 53.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 2 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 15.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Hikvision products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Hikvision service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: switch type, basic switching rj-45 ethernet ports type, basic switching rj-45 ethernet ports quantity, weight, 10g support, product colour, networking standards, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Managed Switch Hikvision DS-3E1309P-EI?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.

Show all questions
